Product Description High-density M4 and M6 threaded hole pattern Hole spacing: 12.5 mm or 25 mm for flexible mounting Solid black anodized aluminum construction to minimize reflections Multiple sizes available The OHD-6C series breadboards are designed
OHD6C Series Mini Optical Breadboard
Price range: $40.00 through $49.00
Similar products
- OPH-86 Series Vibration Isolation Table Stand
- OP Series Optical Vibration Isolation Platform
- OTD-S Series Vibration Isolation Breadboard
- OTD-QF-S6090 Desktop Pneumatic Vibration Isolation Platform
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- High-density M4 and M6 threaded hole pattern
- Hole spacing: 12.5 mm or 25 mm for flexible mounting
- Solid black anodized aluminum construction to minimize reflections
- Multiple sizes available
The OHD-6C series breadboards are designed for space-limited setups. Made of 6 mm thick solid black anodized aluminum, they greatly reduce surface reflection. Their compact size and low profile make them ideal for tight spaces or expanding mounting surfaces for optical assemblies.
| Model | OHD-6C15 | OHD-6C20 |
| Dimensions | 150×125×6 mm | 200×125×6 mm |
| Threads | M4 & M6 holes, Ø4.2 countersunk holes | M4 & M6 holes, Ø4.2 countersunk holes |
| Spacing | Hole spacing: 12.5 / 25.0 mm; Edge spacing: 12.5 mm | Hole spacing: 12.5 / 25.0 mm; Edge spacing: 12.5 mm |
| Weight | 282.5 g | 375.6 g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Notes
The OHD-6C series breadboards are designed for space-constrained setups. Constructed from 6 mm thick solid black anodized aluminum, they minimize surface reflection. Their small size and thin profile suit narrow spaces and extend mounting areas for optical components.
The breadboard features a high-density array of M4 and M6 threaded holes with 12.5 mm or 25 mm spacing. In addition, four M4 countersunk holes at the center allow mounting to standard breadboards, mounting brackets, or post assemblies.

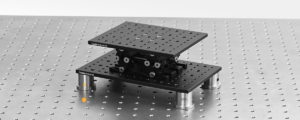

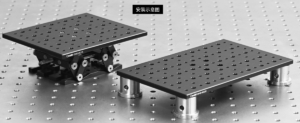

Assembly

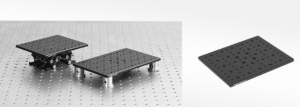

Application Examples
Engineering Drawings
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | OHD-6C15, OHD-6C20 |
| Diameter | |
| Optic Type |
