Product Description Allsteel structure with exceptionally high stability; total frame height: 72.5 cm. Frame base: 86 cm × 58 cm × 72 cm; supports tabletop up to 1.2 m × 0.9 m. Load capacity: 400 kg;
OPH-86 Series Vibration Isolation Table Stand
Price range: $254.80 through $300.80
Similar products
- OP Series Optical Vibration Isolation Platform
- OTD-S Series Vibration Isolation Breadboard
- OTD-QF-S6090 Desktop Pneumatic Vibration Isolation Platform
- Breadboard Handle
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Allsteel structure with exceptionally high stability; total frame height: 72.5 cm.

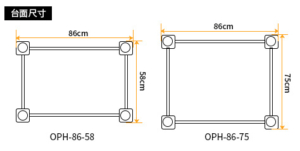

- Frame base: 86 cm × 58 cm × 72 cm; supports tabletop up to 1.2 m × 0.9 m.
- Load capacity: 400 kg; height adjustment range: 15 mm.
- Manual adjustment screws compensate for uneven floors.
- Two different sizes available.
This rigid frame with a height of 72 cm provides a costeffective support solution for optical breadboards in laboratories or production environments. It is ideal for applications with low vibration isolation requirements.
Technical Notes

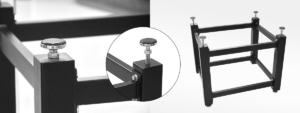

- The adjustment screw serves as a vibration isolation support point. The top is made of antiaging rubber that resists cracking.
2.Height adjustment range of the screw: 15 mm.

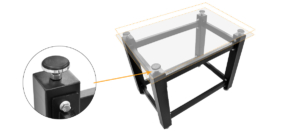

Assembly

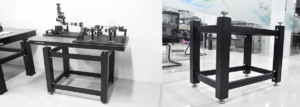

Application Examples
Additional information
| Dimensions | N/A |
|---|---|
| Model | OPH-86-58, OPH-86-75 |
| Optic Type |
