OPS-A2 Circular Adapter Plate
Specification：Ø68.3*7.6mm
OPS-A2 Circular Adapter Plate
$29.00
Description
Product Description
- The workbench surface is equipped with a multi-threaded mounting hole array, directly compatible with micro translation stages and angular displacement stages;
- When used with clamping blocks, it enables 360° continuous rotation of a 30mm cage structure;
- Suitable for prisms, beam splitters, polarizers, and other optical components when used with pressure arms;
- Enhances the flexibility of optical-mechanical devices, allowing installation of various components or platforms;
The workbench surface features a multi-threaded mounting hole array, which is directly compatible with micro translation stages and angular displacement stages. When paired with clamping blocks, it can realize 360° continuous rotation of a 30mm cage structure, used to connect the 30mm cage structure to a rotary displacement stage, and achieve precise alignment of the cage structure through the micrometer head of the displacement stage.
| Circular Adapter Plate | Circular Adapter Plate |
| Model | OPS-A2 |
| Specification | Ø68.3*7.6mm |
| Thread Type | Countersunk holes: 4 positions of M6; Threaded holes: 7 positions of M6; 10 positions of M4; 4 positions of M3; 8 positions of M2; |
| Weight | 60.0g |
| Material | 7075 Aluminum Alloy |
Technical Description

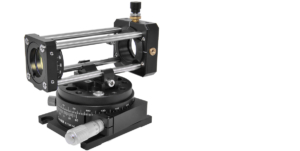

(1) The adapter plate can be fixed to the top of the R-TSX-M rotary displacement stage via 4 M6 countersunk holes. The distribution of its multi-threaded array allows direct compatibility with our micro translation stages and angular displacement stages. When used with the CSK-A30 clamping mounting bracket, it is used to connect the 30mm cage structure to the rotary displacement stage, and the cage structure is precisely aligned through the micrometer head of the displacement stage. The clamping block adopts a single-screw compression mechanism, which can clamp two cage rods of the 30mm cage system simultaneously, and the pre-assembled cage structure can be easily placed on the open clamping block.

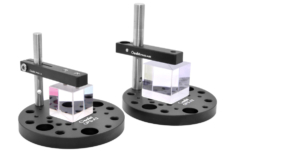

(2) In addition, optical components can be fixed on the top of the adapter plate using our pressure arms and rotated along the rotation axis. The threaded area on the adapter plate is provided with 6 M4 threaded holes for multi-directional installation of pressure arms.

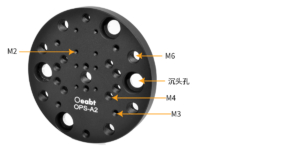

(3) Threaded array: 4 positions of M6 countersunk holes; 7 positions of M6 mounting holes; 10 positions of M4 mounting holes; 4 positions of M3 mounting holes; 8 positions of M2 mounting holes;
Assembly

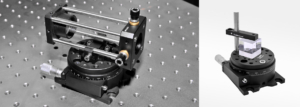

Application Examples
Engineering Drawing
Additional information
| Weight | 0.060 kg |
|---|
