Product Description
- Focus-adjustable laser module;
- Compact Ø12mm module housing, ideal for alignment lasers;
- Wavelength range: 405–830 nm;
- Constant power mode with built-in photodiode feedback.

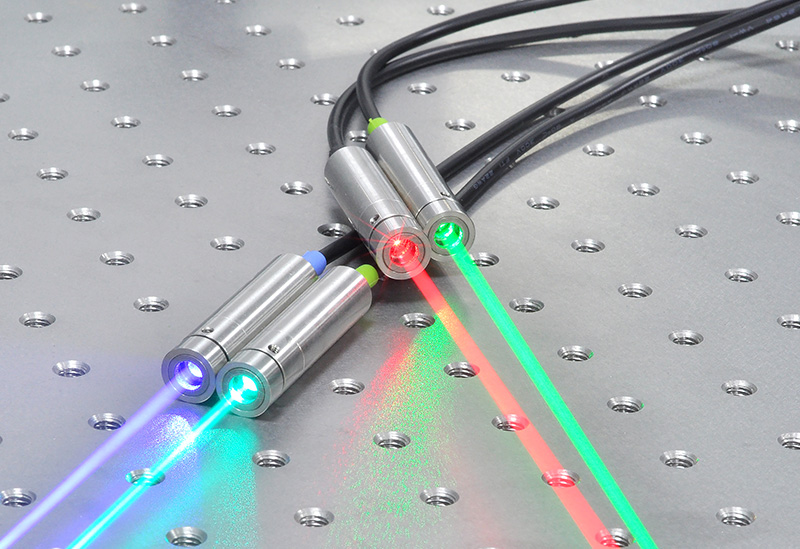

This Ø12mm laser can be mounted on a precision mirror mount via our POL laser mounting hole, providing the light source and optical path for optical experiments. Laser power: 3 mW.
| Specification | Ø12×58 mm (focus-adjustable) |
| Power | 3 mW |
| Beam mode | Dot |
| Note | Parallel beam spot approx. 3.5 mm within 1 m |
| Model | Wavelength | Beam Color |
| OM-12A405-3-G | 405 nm | Blue-violet |
| OM-12A447-3-G | 447 nm | Blue |
| OM-12A450-3-G | 450 nm | — |
| OM-12A488-3-G | 488 nm | Cyan |
| OM-12A505-3-G | 505 nm | Green |
| OM-12A515-3-G | 515 nm | — |
| OM-12A520-3-G | 520 nm | — |
| OM-12A658-3-G | 658 nm | Red |
| OM-12A780-3-G | 780 nm | Infrared |
| OM-12A808-3-G | 808 nm | — |
| OM-12A830-3-G | 830 nm | — |
*No lock on the laser. For additional set screws, please contact customer service in advance.

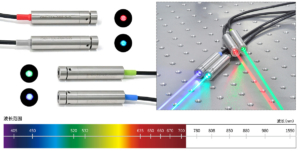

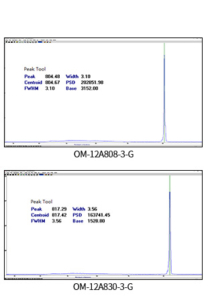

405nm 450nm 505nm 510nm 515nm 520nm 658nm 780nm 808nm 830nm
Technical Specifications
The Ø12mm laser in the OM series uses original imported diodes, featuring small size, clear beam, large divergence angle, and high straightness. It is driven in constant power mode, with built-in photodiode feedback to maintain stable optical output power.

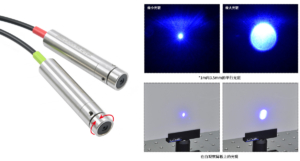

The focus knob on the laser head can be rotated left or right to adjust the focus according to the working distance, achieving the desired spot size easily and quickly.*Parallel beam spot: 3.5 mm within 1 m (beam spot on white viewing screen)

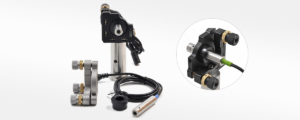

It can be installed on precision mirror mounts, SM1 lens tubes, and 30mm cage systems by using POL series laser mounting holders or OAD-F series adjustable collimation adapters, supplying the required light source and optical path for optical experiments.
| Model | Mounting Type | Function |
| POL-12 | Threadless, set-screw fixed | Fixed mounting |
| OAD-12F | Outer diameter SM1 thread, with locking ring | ±6° tilt/deflection adjustment |

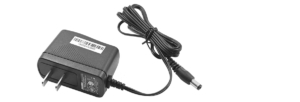

- Power input: 100–240 V, 50/60 Hz; Power output: 12 V–0.5 A.

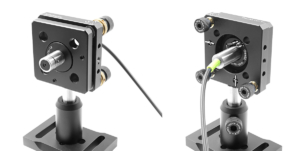

Assembly

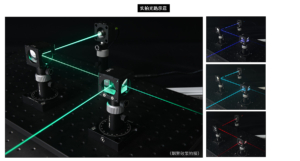

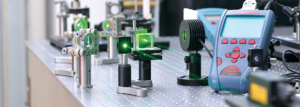

Application Examples
Engineering Drawings
