Product Description Build your own episcopic illumination optical path. Magnetic door compatible with MDFM-MF2 and Olympus filter cubes. Stackable design with Ø51 mm male and female dovetails on top and bottom. Cube housing compatible with SM1
MDFM-C Quick-Release Fluorescence Cube Module
Price range: $61.60 through $205.00
Similar products
- X-SLH Microscope Slide Clip
- X3-SLH Microscope Slide Holder
- CAX-R Series 66 mm Heavy-Duty Lifting Mount
- OPH-B Series 66 mm Heavy-Duty Optical Rail / Mounting Bracket
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description

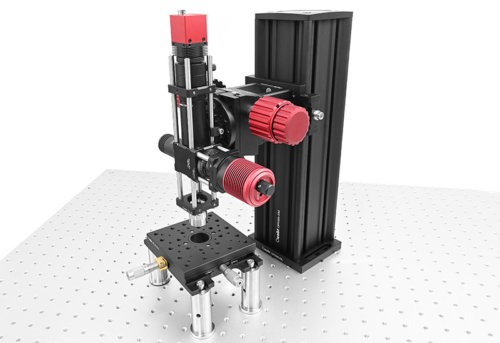

- Build your own episcopic illumination optical path.

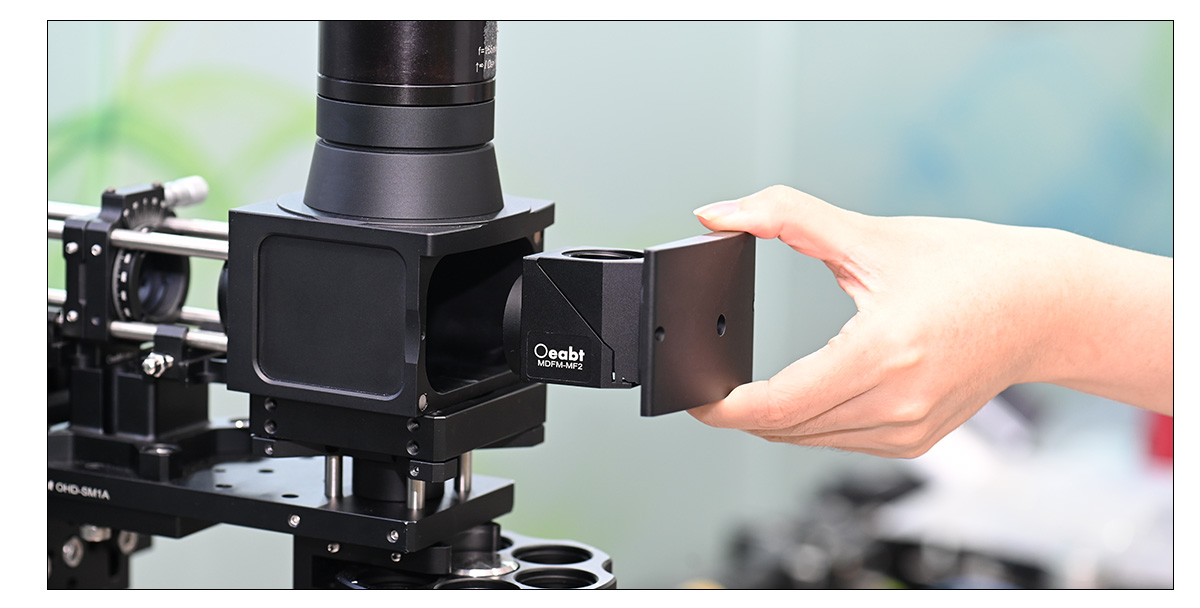

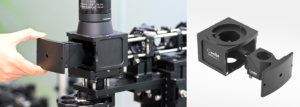

- Magnetic door compatible with MDFM-MF2 and Olympus filter cubes.
- Stackable design with Ø51 mm male and female dovetails on top and bottom.
- Cube housing compatible with SM1 lens tubes and 30 mm cage systems.
- Pre-assembled kit: MDFM-C Microscopy Fluorescence Cube Module (includes MDFM-MF2).
The MDFM-C microscopy fluorescence cube holds one filter cube inside. Male and female dovetails on the top and bottom mate with each other to enable stacking. The rear features SM1 threads and 440 tapped holes on a 30 mm grid.
Specifications
Quick-Release Microscopy Fluorescence Cube Housing
表格
| Item | Details |
| Model | MDFM-C1 |

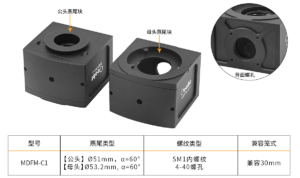

| Dimensions | 78.3 × 80.0 × 63.4 mm |
| Dovetail Type | Male: Ø51 mm, α=60°; Female: Ø53.2 mm, α=60° |
| Thread Type | SM1 (1.035”40) internal thread; 4× 440, 30 mm spacing |
| Weight | 367.3 g |
| Material | 7075 aluminum alloy |
Microscopy Fluorescence Cube Insert
表格
| Item | Details |
| Model | MDFM-MF2 |
| Dimensions | 48.3 × 33.0 × 39.0 mm |
| Mountable Optics | Excitation & emission filters: Ø25.4 mm, thickness ≤5 mmDichroic beamsplitter: max. 25.2 × 36.0 × 1.2 mm |
| Thread Type | SM1 (1.035”40) internal thread |
| Weight | 51.6 g |
| Material | 7075 aluminum alloy |
Technical Notes

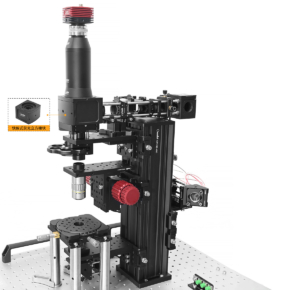

The MDFM-C microscopy fluorescence cube holds one filter cube. Top and bottom dovetails allow stacking. The rear has SM1 threads and 440 tapped holes on 30 mm centers, supporting custom optical paths with SM1 lens tubes and 30 mm cage systems for episcopic illumination microscopy.
The top and bottom dovetails match MCPD2 and MCPD2B. Mounting the MCPD2B dovetail adapter to the bottom connects 30 mm and 60 mm cage systems to the MDFM-C module.
Warning: Tighten optics gently; do not overtighten, as this may crack the optics!

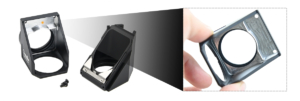

Note: The insert may show visible machining marks; this is normal for new, unused units.

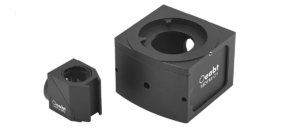

Pre-assembled set: MDFM-C Microscopy Fluorescence Cube Module (includes MDFM-MF2)

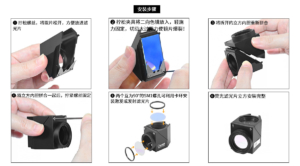

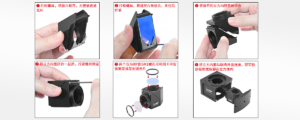

Assembly
