Product Description A pair of spring clips holds samples securely in place. Suitable for microscope slides and test targets of various sizes. M4 threaded holes for direct attachment to any translation stage. Versatile mounting configuration. These
X-SLH Microscope Slide Clip
Price range: $21.00 through $75.60
Similar products
- X3-SLH Microscope Slide Holder
- CAX-R Series 66 mm Heavy-Duty Lifting Mount
- OPH-B Series 66 mm Heavy-Duty Optical Rail / Mounting Bracket
- MCT-LM2 Lifting Focus Slide Knob
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- A pair of spring clips holds samples securely in place.
- Suitable for microscope slides and test targets of various sizes.
- M4 threaded holes for direct attachment to any translation stage.
- Versatile mounting configuration.

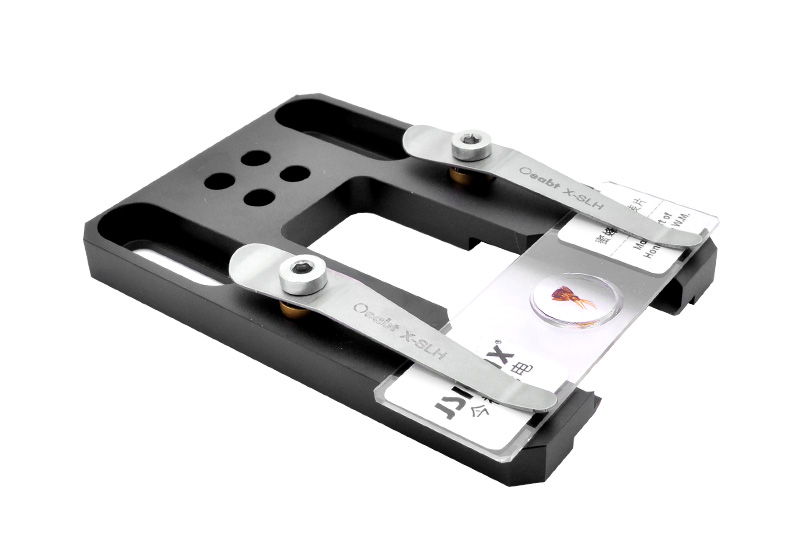

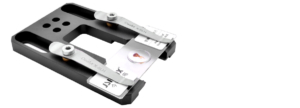

These stainless steel spring clips are ideal for securely holding microscope slides and test targets of various sizes. They come with two M4 shoulder screws and a 2.5 mm hex key, and can be mounted to stages via the M4 threaded holes.
| Item | Specification |
| Model | X-SLH |
| Product Name | Microscope Slide Clip |
| Dimensions | 63.7 × 11.9 × 6.5 mm |
| Thread Type | M4 |
| Weight | 6.0 g |
| Material | 316 Stainless Steel |
Technical Notes
These stainless steel spring clips are ideal for securely holding microscope slides and test targets of various sizes. They are supplied with two M4 shoulder screws and a 2.5 mm hex key, and can be attached to translation stages through the M4 threaded holes.
The spring clip is 63.7 mm long with a 5.1 mm wide tip, and can rotate 360° for easy access and positioning of slides. The upwardbent end of the clip prevents damage to slides while providing sufficient clamping force to hold them firmly in place.
Assembly

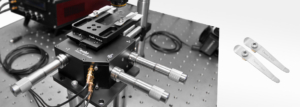

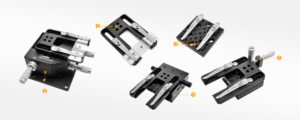

Application Examples
Engineering Drawings
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | X-SLH, X3-SLH |
