Product Description Enables vertical adjustment of microscope objectives. Focus knob controls adjustment speed for fast or high-precision movement. Linear lifting travel: 38 mm. Maximum vertical load capacity: 1 kg. Multiple pre-assembled configuration options available. This microscope

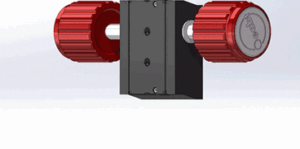

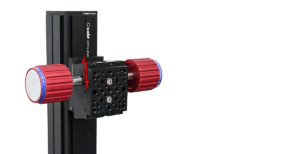

MCT-LM2 Lifting Focus Slide Knob
Price range: $16.20 through $679.40
Similar products
- X-SLH Microscope Slide Clip
- X3-SLH Microscope Slide Holder
- CAX-R Series 66 mm Heavy-Duty Lifting Mount
- OPH-B Series 66 mm Heavy-Duty Optical Rail / Mounting Bracket
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Enables vertical adjustment of microscope objectives.
- Focus knob controls adjustment speed for fast or high-precision movement.
- Linear lifting travel: 38 mm.
- Maximum vertical load capacity: 1 kg.
- Multiple pre-assembled configuration options available.
This microscope focus slide uses a ball-guided rack-and-pinion focus mechanism with approximately 38 mm of coarse focus travel for vertical adjustment of microscope lenses. Eccentric adjustment of the gear sleeve optimizes meshing between the gear and rack for smooth motion and zero backlash. Maximum vertical load: 1 kg.Do not use horizontally; backlash may occur. For higher loads, contact customer service for technical support.
Specifications
| Item | Details |
| Model | MCT-LM2 |
| Dimensions | 180.9 × 80.4 × 50.0 mm |
| Lifting Travel | 38 mm |
| Thread Types | Front panel: 2 × M6 threaded holesRear panel: 7 × M6, 2 × M6 countersink, 4 × M4 countersink |
| Weight | 715.0 g |
| Material | 7075 aluminum alloy + 304 stainless steel |
Technical Notes
The microscope focus slide employs a ball-guided rack-and-pinion focus mechanism, providing about 38 mm of coarse focus travel. It uses wear-resistant copper alloy dovetail guides for precision positioning. Eccentric adjustment of the gear sleeve ensures smooth movement and eliminates backlash. Maximum vertical load: 1 kg.Do not mount horizontally; this causes backlash issues. For heavier loads, contact support.

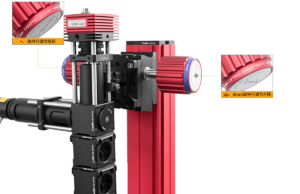

One end of the knob provides approximately 38 mm of coarse focus travel using wear-resistant copper alloy dovetail guides. The other knob controls damping to prevent unintended drifting of the focus position. Friction resistance between the gear sleeve and shaft can be adjusted via the knob.

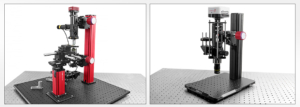

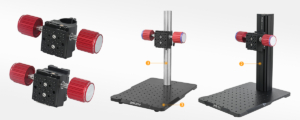

Front and rear panels can be mounted to Ø1.5-inch posts or 66 mm brackets using adapter blocks. Multiple pre-assembled setups are supported: front panels allow installation of cage systems or other experimental setups.

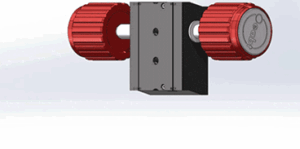

Assembly

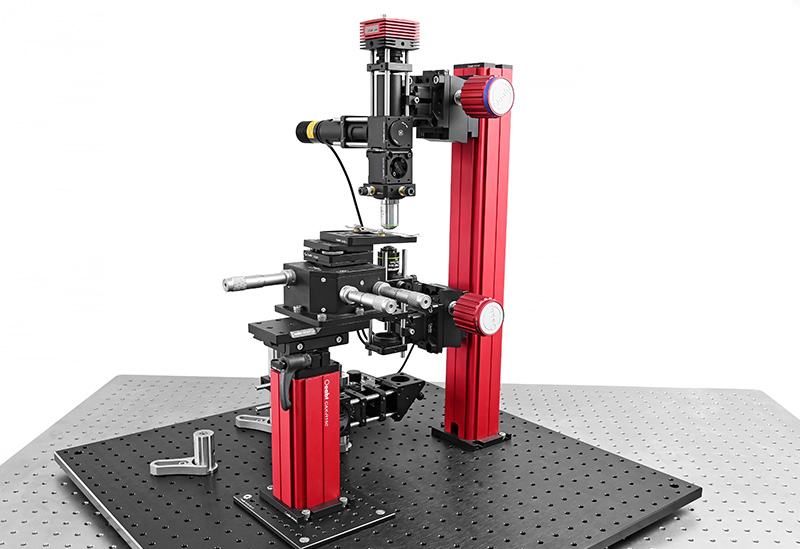

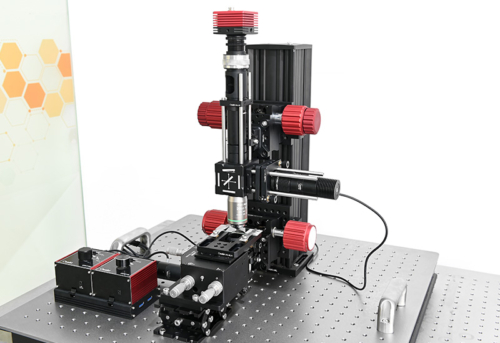

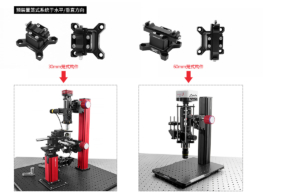

Application Examples

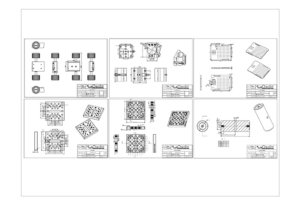

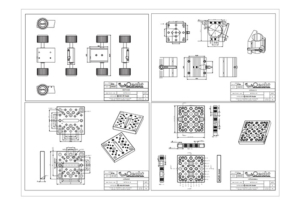

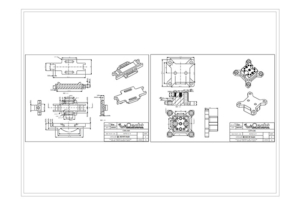

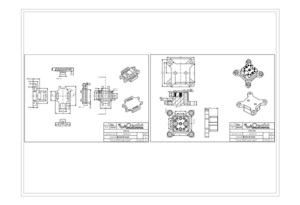

Engineering Drawings
Additional information

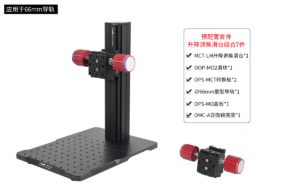

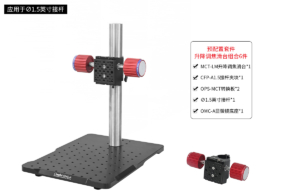

| Model | 4-Piece Lifting Focus Slide Assembly (For 66 mm Heavy-Duty Rail), 4-Piece Lifting Focus Slide Assembly (For Ø1.5-inch Posts), 7-Piece Lifting Focus Slide Combo Kit (For 66 mm Heavy-Duty Rail)Rail height: 250 mm, 7-Piece Lifting Focus Slide Combo Kit (For 66 mm Heavy-Duty Rail)Rail height: 300 mm, 7-Piece Lifting Focus Slide Combo Kit (For 66 mm Heavy-Duty Rail)Rail height: 350 mm, 7-Piece Lifting Focus Slide Combo Kit (For 66 mm Heavy-Duty Rail)Rail height: 400 mm, 7-Piece Lifting Focus Slide Combo Kit (For 66 mm Heavy-Duty Rail)Rail height: 500 mm, 7-Piece Lifting Focus Slide Combo Kit (For 66 mm Heavy-Duty Rail)Rail height: 600 mm, 7-Piece Lifting Focus Slide Combo Kit (For 66 mm Rail with Cable Slot)Rail height: 300 mm, 7-Piece Lifting Focus Slide Combo Kit (For 66 mm Rail with Cable Slot)Rail height: 400 mm, 7-Piece Lifting Focus Slide Combo Kit (For 66 mm Rail with Cable Slot)Rail height: 500 mm, 7-Piece Lifting Focus Slide Combo Kit (For 66 mm Rail with Cable Slot)Rail height: 600 mm, 6-Piece Lifting Focus Slide Combo Kit (For Ø1.5-inch Posts)Post height: 250 mm, 6-Piece Lifting Focus Slide Combo Kit (For Ø1.5-inch Posts)Post height: 350 mm, CSK-A30&CFP-CSK, CSK-A60&CFP-CSK, OPS-MCT |
|---|---|
