Product Description
- The magnetic base with strong adsorption force can be independently fixed on magnetic material panels;
- Fixing and disassembly can be easily performed via the ON·OFF switch of the handle;
- Holding force: 132N (13.5kgf);
- Not restricted by the position of threaded holes, and can be fixed anywhere;
- The center of the magnetic base surface is provided with an M6 or M16 threaded hole;
- Made of magnetic materials, with a precision-ground surface treated by oxidation and blackening;
Magnetic fixation can be performed on the opposite side of the ON·OFF switch handle, making it suitable for independent installation on optical anti-vibration platforms, aluminum alloy honeycomb platforms (upper plates of magnetic materials), etc. It is not limited by the position of threaded holes and can be fixed at any location.
| Model | MBS-65B | MBS-65C | MBS-65D |
| Specification | 65.2*65.2*20mm | 65.2*65.2*20mm | 65.2*65.2*20mm |
| Threaded Hole Type | 4 positions of M4, 9 positions of M6 | 12 positions of M4, 1 position of M6 | 8 positions of M6, 1 position of M16 |
| Holding Force | 132N (13.5kgf) | 132N (13.5kgf) | 132N (13.5kgf) |
| Weight | 533.3g | 540.0g | 500.3g |
| Material | Magnetic-conductive + Magnetic-insulating Material | Magnetic-conductive + Magnetic-insulating Material | Magnetic-conductive + Magnetic-insulating Material |

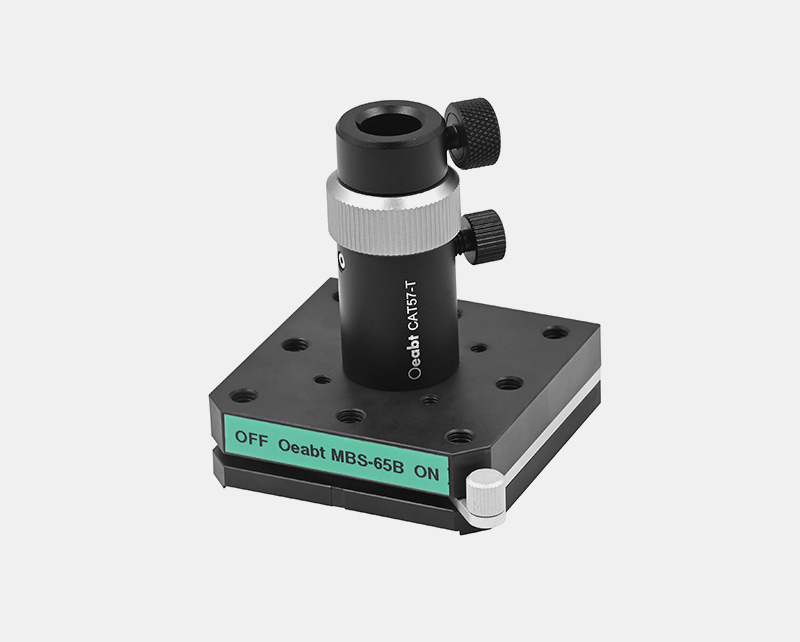

(1) Magnetic fixation can be achieved using the ON·OFF switch handle. Its switchable magnetic force design enables positioning flexibility during experiments, making it suitable for independent installation on magnetic material platforms such as optical anti-vibration platforms and aluminum alloy honeycomb platforms.

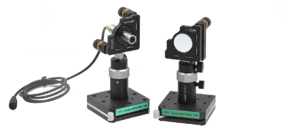

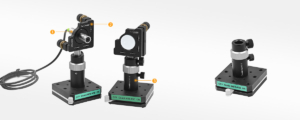

(2) Utilizing the M6/M16 threaded hole at the center of the surface, it can be directly connected to vertical rod brackets, sliding table support rods, etc., allowing rapid installation of optical components and instruments into existing setups. The threaded holes arranged in a 25*25mm array around the surface can be used to mount various optical-mechanical components and micro-platforms.

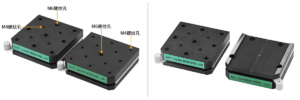

(3) The MBS-65B model is equipped with 4 M4 threaded holes and 9 M6 threaded holes on the surface; the MBS-65C model has 12 M4 threaded holes and 1 M6 threaded hole on the surface.
