Description
Product Description

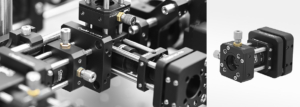

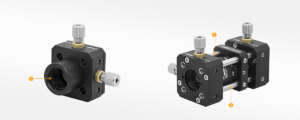

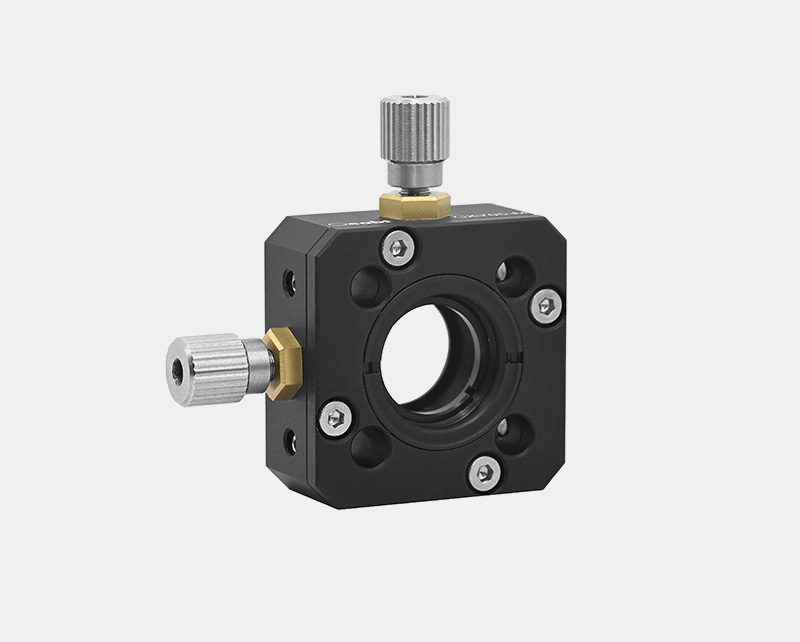

（1）SM05 (0.535”-40) internal thread.
（2）Provides a translation stroke of ±1.0mm.
（3）Can mount optical components with Ø12.7mm and maximum thickness of 5.8mm.
（4）Compatible with SPCM series Ø4mm support rods.
（5）Compatible with 16mm cage systems and SM05 series lens sleeves.

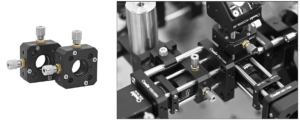

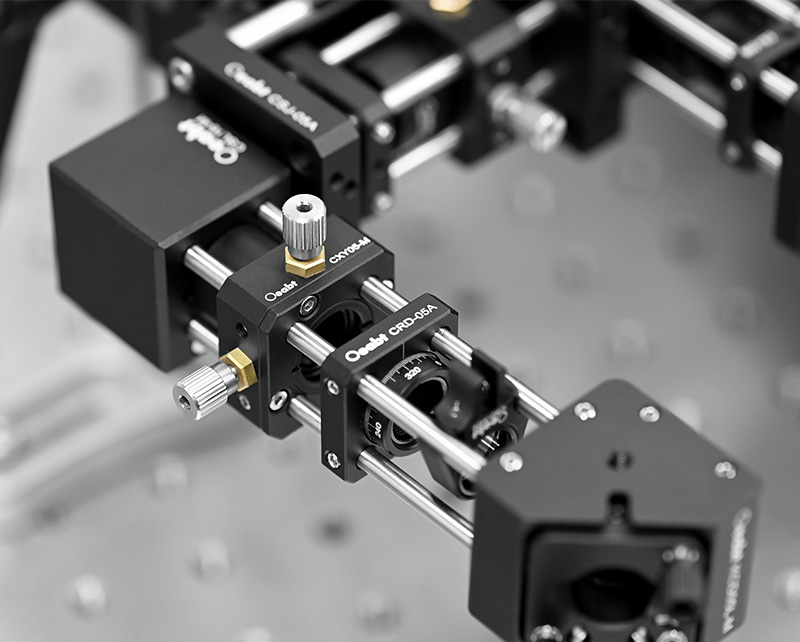

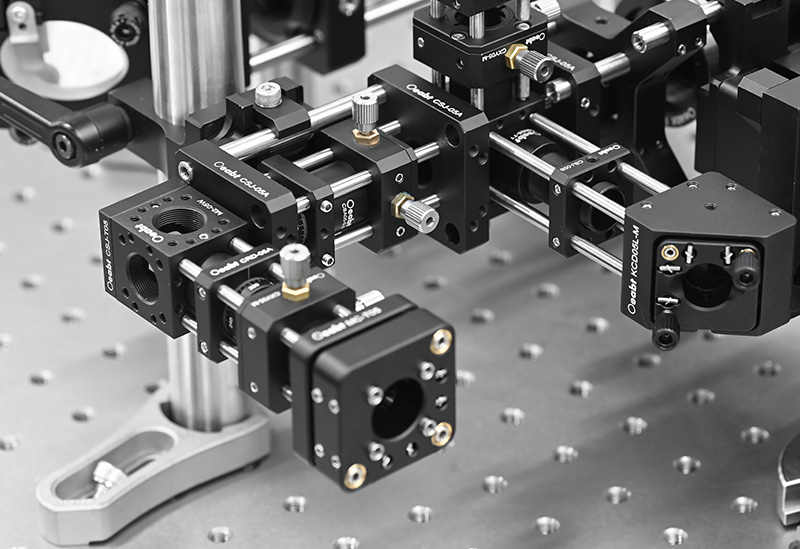

（6）16mm cage systems are usually compact, making them advantageous in space-constrained applications. The XY translation adjustment mount is used in cage systems to install lenses and achieve fine adjustments in the XY plane. It allows micro-adjustment of the lens along the X and Y axes relative to the optical axis for better imaging results.
Model | CXY05-M |
| Dimensions | 27.9*27.9*12.7mm |
Adjustable Stroke | ±1.0mm, 0.25mm/turn |
| Central Aperture | SM05 (0.535”-40) internal thread |
Through Hole Spacing | Ø4.03mm, spacing 16*16mm |
| Weight | 24.4g |
Material | 7075 aluminum alloy |
Technical Description
（1）16mm cage systems are usually compact, making them advantageous in space-constrained applications. The XY translation adjustment mount is used in cage systems to install lenses and achieve fine adjustments in the XY plane. It offers a stroke of ±1.0mm with a precision of 0.25mm per turn, allowing micro-adjustment of the lens along the X and Y axes relative to the optical axis for better imaging results.
（2）The mount features SM05 internal threads (non-through holes) on both the front and rear surfaces of the housing. The front plate mounting hole can be used to install Ø12.7mm optical components with a maximum thickness of 5.8mm, fixed with the included SM05 retaining ring. The backplate can achieve an opaque connection with Ø1/2-inch lens sleeves.
（3）SPCM series Ø4mm cage rods can be inserted into the through holes of the adjustment mount, compatible with 16mm cage systems. Use a 1.5mm wrench to tighten the side set screws to fix the position of the cage rods on the adjustment mount.
