CSK-B Series Drop-In Mounting Brackets
CSK-B Series DropIn Mounting Brackets
Price range: $18.40 through $26.40
Similar products
- CPF30 Adjustable Cage System Mount
- CSD-M Series QuickRelease Cage Plate
- CRD-25 30mm Cage Rotation Mount
- CDM-12 Ring-Driven Adjustable Iris Diaphragm
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description

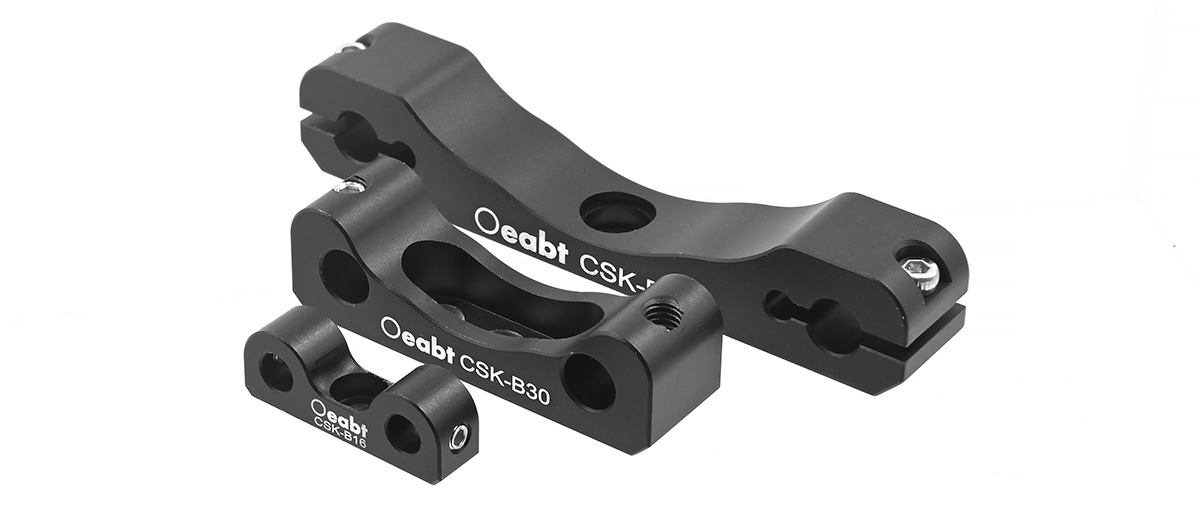

- Clamp brackets for supporting cage assemblies with posts
- Suitable for 16 mm, 30 mm, and 60 mm cage systems
- Flexure locking design; secures cage rods via top side screws
- Countersunk hole for mounting Ø12 mm posts
The mounting bracket attaches cage assemblies to Ø12 mm posts. Its lowprofile design is ideal for integrating 16/30/60 mm cage systems into optomechanical setups.
| Model | CSK-B16 | CSK-B30 | CSK-B60 |
| Dimensions | 25.0×6.4×9.0 mm | 44.5×12.7×13.4 mm | 76.2×12.7×14.0 mm |
| Through-Hole Spacing | 16 mm | 30 mm | 60 mm |
| Countersink Type | 1×M3 | 3×M4 | 1×M4 |
| Weight | 2.5 g | 9.5 g | 23.2 g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Description
- The mounting bracket attaches cage assemblies to Ø12 mm posts. Its low-profile design is ideal for integrating 16/30/60 mm cage systems into optomechanical assemblies. The central recess provides clearance for SM1/SM2 sleeves.Note: This bracket cannot be used directly below SM05 lens sleeves.

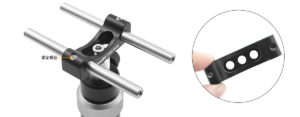

(2) First mount the bracket onto two cage rods and secure the rods using the top set screws. Then mount the cage system to the post via the countersunk hole.

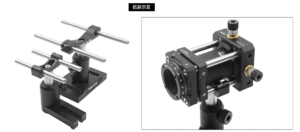

Assembly

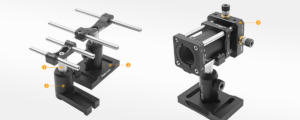

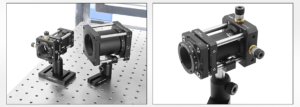

Application Examples
Engineering Drawings
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | CSK-B16, CSK-B30, CSK-B60 |
| Optic Type |
