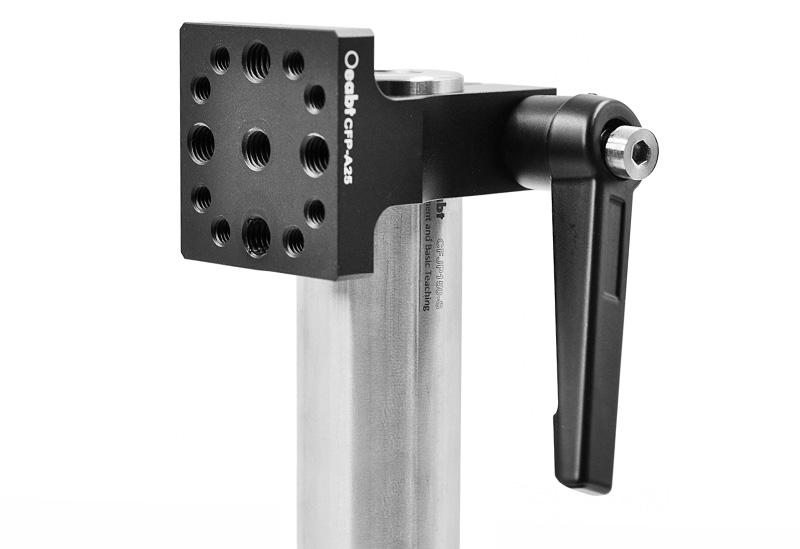

M5/M6 Series Quick-Release Handles
Product Description
- The quick-release handle enables quick and repeat positioning of the rod clamp block;
- Compatible with M6 or M5 fastening screws, providing better control and feel when locking and unlocking the clamp block;
- The handle can rotate without loosening the locking screw;
- Available in aluminum alloy and nylon materials, with different specifications to choose from, facilitating matching with various optical-mechanical components;
The quick-release handle can flexibly fix the clamp block simply and reliably. It allows manual tightening of the clamp block, eliminating related troubles and enabling better control of the required torque when tightening and loosening the clamp block. Since no ball-head screwdriver is needed, the time required for basic setup and alignment is shortened to achieve quick fixation of the clamp block.
| Quick-Release Handle [Aluminum Alloy Material] | Quick-Release Handle [Aluminum Alloy Material] | ||
|---|---|---|---|
| Model | Parameters | ||
| M5-16 | Thread Type: M5, Length: 16mm; Weight: 20.0g; | M5-16 | Thread Type: M5, Length: 16mm; Weight: 20.0g; |
| M5-20 | Thread Type: M5, Length: 20mm; Weight: 21.2g; | M5-20 | Thread Type: M5, Length: 20mm; Weight: 21.2g; |
| M6-16 | Thread Type: M6, Length: 16mm; Weight: 21.5g; | M6-16 | Thread Type: M6, Length: 16mm; Weight: 21.5g; |
| M6-20 | Thread Type: M6, Length: 20mm; Weight: 21.6g; | M6-20 | Thread Type: M6, Length: 20mm; Weight: 21.6g; |
| Quick-Release Handle [Nylon Material] | Quick-Release Handle [Nylon Material] | ||
|---|---|---|---|
| Model | Parameters | ||
| NM6-15 | Thread Type: M6, Length: 15mm; Weight: 17.1g; | NM6-15 | Thread Type: M6, Length: 15mm; Weight: 17.1g; |
| NM6-20 | Thread Type: M6, Length: 20mm; Weight: 18.1g; | NM6-20 | Thread Type: M6, Length: 20mm; Weight: 18.1g; |
| NM6-30 | Thread Type: M6, Length: 30mm; Weight: 20.0g; | NM6-30 | Thread Type: M6, Length: 30mm; Weight: 20.0g; |
Technical Description
(1) The quick-release handle provides a simple and reliable method for fixing flexible rod clamp blocks. In many cases, cap screws are used to fix the flexible clamp block on the rod, which requires adjustment with a ball-head screwdriver. For different loads, using a ball-head screwdriver may be difficult or even unsafe. The quick-release handle allows manual tightening of the clamp block, mitigating this issue and ensuring better control of the required torque when tightening and loosening the clamp block. Since no ball-head screwdriver is required, the time needed for basic setup and alignment is reduced, enabling quick fixation of the clamp block.
(2) This is a kit device equipped with a quick-release handle, which can be adjusted quickly.
ocbeoqeo

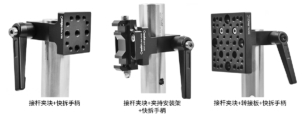

Rod Clamp Block + Quick-Release Handle
Rod Clamp Block + Clamping Mount
Rod Clamp Block + Adapter Plate + Quick-Release Handle
- Quick-Release Handle)
(3) The handle length is 58mm, including an M6 or M5 bolt, which can be directly installed by rotating the handle. The internal ratchet drive mechanism prevents the handle from driving the bolt during the return position.
Assembly

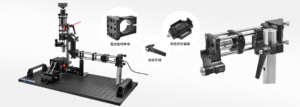

Application Examples
