Product Description Coupling rod Ø6mm, with M4 threads at both the top and bottom ends; Provides clamping force for adjustment frames with platforms; The arm clamp can hold optical components up to 41.8 mm in diameter;

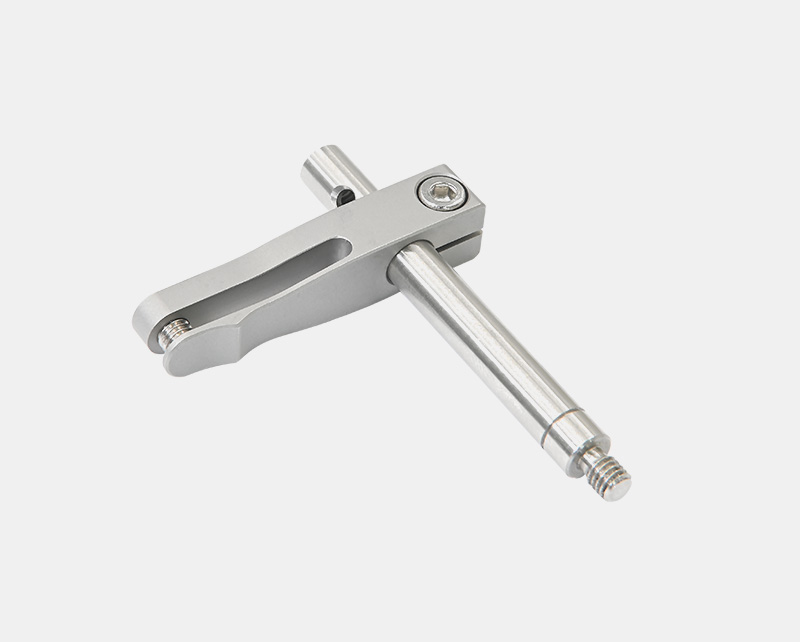

VPRK1-A Ø6mm adjustable clamping pressure arm
$62.00
Similar products

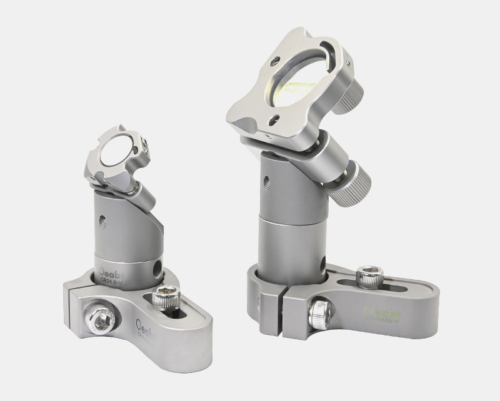

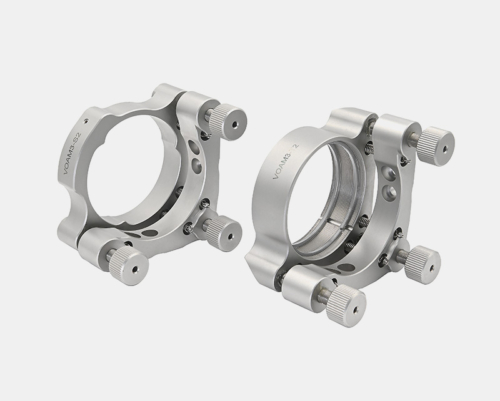

- VOAM3-S05 Ø1/2 Inch Low-Drift 3-Axis Adjustment Mirror Mount
- CR-BASE series non-void briquette
- CR-V series Ø25mm non-magnetic stainless steel connecting rods

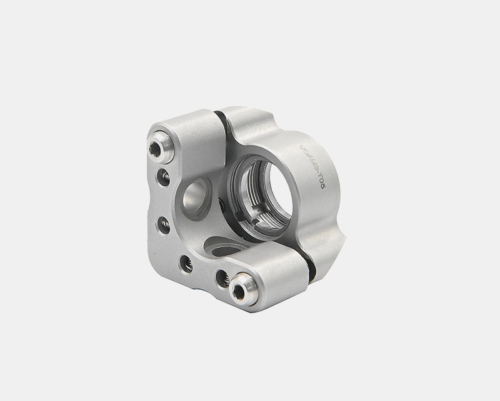

- VOM-PB45 Low Drift Adjustment Mount
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Coupling rod Ø6mm, with M4 threads at both the top and bottom ends;
- Provides clamping force for adjustment frames with platforms;
- The arm clamp can hold optical components up to 41.8 mm in diameter;
- The extension rod can be extended to increase the maximum height of the clamped optical element;
- Heat-treated 304 stainless steel material;
The arm height is adjustable, and the flexible design with fixed optical elements enables clamping optical components with a maximum height of 41.8 mm.
| model | VPRK1-A |
| Rod height | Ø6*50.8mm |
| Clamping size | optical elements with a diameter ≤41.8 mm |
| Type of threaded hole | At M4*2 |
| weight | 23.4g |
| material quality | Heat Treatment of 304 Stainless Steel |
technical description

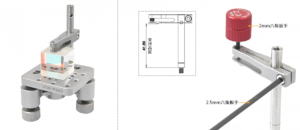

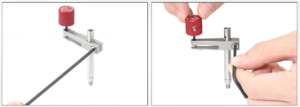

(1) The VPRK1-A press arm can secure optical components onto an adjustable frame equipped with a platform. The press arm height is adjustable and features a flexible design for fixing optical components, capable of clamping optical components with a maximum height of 41.8 mm. Height adjustment and optical component positioning locking are achieved using a 2.5 mm/2.0 mm hex key.

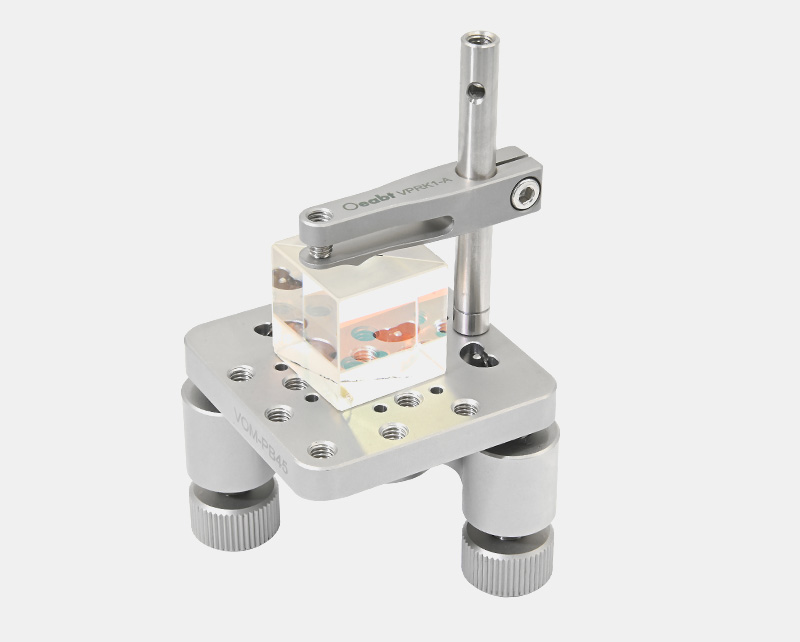

(2) Additionally, the M4 bolt at the base of the pressing arm facilitates direct mounting on the platform, while the M4 internal thread at the top enables continuous stacking of pressing arms.
(3) Utilizing a full stainless steel heat treatment process, the VPRK1-A compression arm not only exhibits excellent corrosion resistance and wear resistance, but also minimizes temperature-related hysteresis effects in environments with significant thermal fluctuations, ensuring long-term stable performance.
Assembly

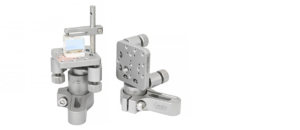

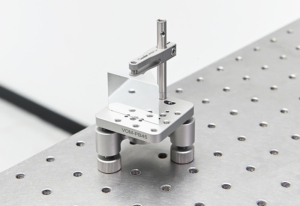

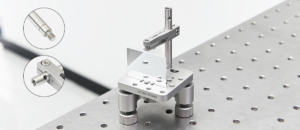

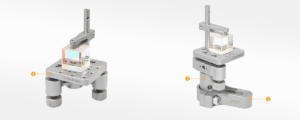

Application Examples
