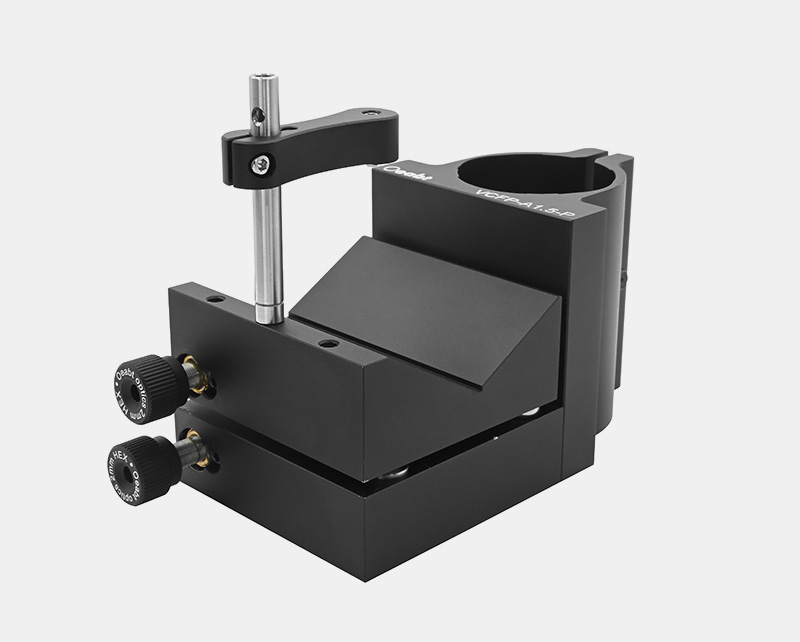

VCFP-A1.5-P Ø1.5″ V-Clamp Adjustment Mount

Description

Product Description
• Secures cylindrical components with diameters from Ø6.5 to 51.9 mm;
• Provides ±2.2° of pitch and ±2.7° of yaw adjustment, with a precision of 6.6 mrad per revolution;
• Quick-release lever for easy mounting to a Ø1.5″ post;
The V-clamp mount features a lever-actuated clamping mechanism for secure mounting of cylindrical components to a Ø1.5″ post. This mount is compatible with cylindrical elements ranging from Ø6.5 to 51.9 mm.

Model

Specifications

Model

Specifications

Technical Description

(1) The V-clamp mount features a lever-actuated clamping mechanism for secure mounting of cylindrical components to a Ø1.5″ post. This mount is compatible with cylindrical elements ranging from Ø6.5 to 51.9 mm, such as He-Ne lasers, high-magnification zoom lenses, and laser diode modules.

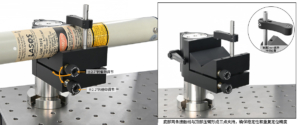

(2) The clamp body provides ±2.2° of pitch and ±2.7° of yaw adjustment. Angular adjustment with a precision of 6.6 mrad per revolution can be achieved via two adjusters. Three M4 threaded holes are provided on the outer edge of the clamp, allowing flexible installation of the included clamping arms to accommodate various clamping requirements.

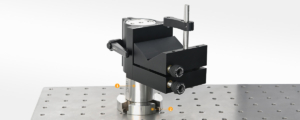

(3) The product is equipped with a quick-release lever for fast securing of the clamp to the post. The lever incorporates an M6 bolt; rotating the lever enables component engagement. The internal structure allows the lever position to be adjusted without loosening the bolt, enhancing operational convenience.

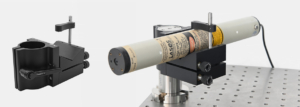

• Assembly

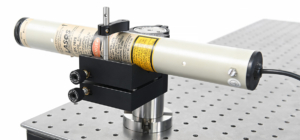

• Application Examples

• Engineering Drawing

PRK1-B Engineering Drawing

VCFP-A1.5-P Engineering Drawing
