Description

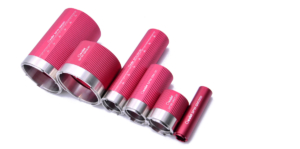

Product Description

  • Used for installing and adjusting retaining rings in lens sleeves, lens mounts, and other optical-mechanical components;
  • Compatible with various sizes of standard SM05~SM2 retaining rings;
  • Hollow internal design allows light beams to pass through while adjusting components;
  • Knurled handle for easy grip;

Retaining ring wrenches can adjust or install many of our standard retaining rings. Their hollow design ensures that the optical path is not blocked when adjusting the retaining rings. The knurled handle on the wrench facilitates gripping, while the flange end can keep the ring at the end of the wrench when inserting or removing the retaining ring.

ModelSPW-SM0550
SpecificationØ0.5 inches, applicable to SM05 retaining rings
Height50mm
Weight8.0g
MaterialAluminum Alloy + Stainless Steel



ModelSPW-SM130SPW-SM150SPW-SM190
SpecificationØ1 inch, applicable to SM1 retaining ringsØ1 inch, applicable to SM1 retaining ringsØ1 inch, applicable to SM1 retaining rings
Height30mm50mm90mm
Weight30.0g42.6g67.2g
MaterialAluminum Alloy + Stainless SteelAluminum Alloy + Stainless SteelAluminum Alloy + Stainless Steel



ModelSPW-SM240SPW-SM280
SpecificationØ2 inches, applicable to SM2 retaining ringsØ2 inches, applicable to SM2 retaining rings
Height40mm80mm
Weight82.5g141.0g
MaterialAluminum Alloy + Stainless SteelAluminum Alloy + Stainless Steel

Technical Description

  • Our standard wrenches can safely and easily adjust retaining rings without the risk of damaging optical components. They feature an aluminum knurled handle and a hollow internal design, allowing light beams to pass through while adjusting components. Compared with aluminum flanges, stainless steel flanges reduce wear and have small tolerances, making them suitable for our retaining rings. The flanges have no surface coating to minimize dust or other particles that may contaminate the lens surface.

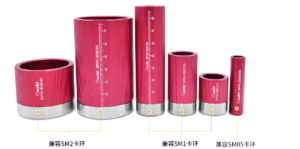

  • Multiple specifications of retaining ring wrenches are available. Longer retaining ring wrenches are equipped with a scale that indicates the depth of wrench insertion in 1mm increments, ensuring precise positioning of optical components.

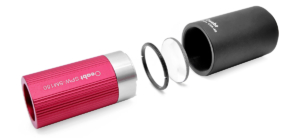

  • Installation Schematic Diagram



  • Retaining ring wrenches can be used for installing and adjusting retaining rings in lens sleeves, lens mounts, and other optical-mechanical components

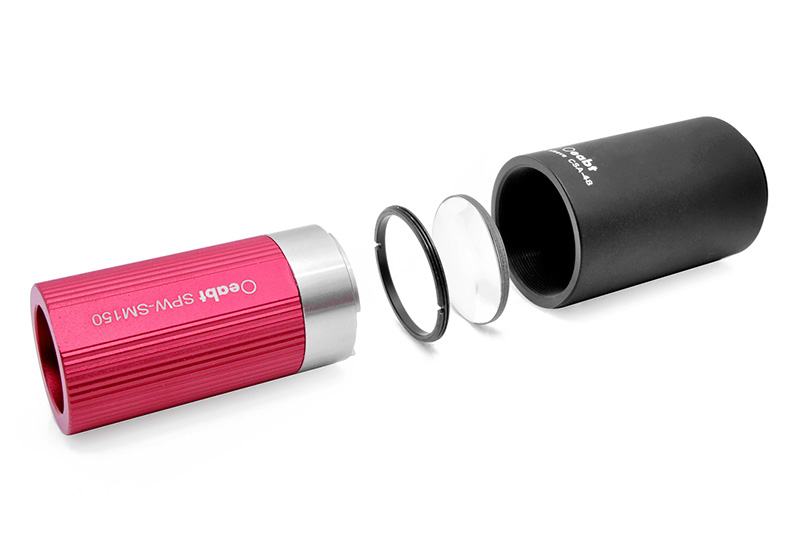

Assembly

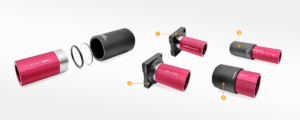

Application Examples

Engineering Drawing

SPRM-SM1 Engineering Drawing

SPRM-SM2 Engineering Drawing

SPRM-SM0550 Engineering Drawing
