SMA Fiber Interface Adapter Plate
SMA Fiber Interface Adapter Plate
Price range: $18.60 through $30.60
Description
Product Description
- SMA port fiber adapter plate, ferrule bore Ø3.2 mm.
- Commonly used for assembling free-space fiber couplers, collimators, and other free-space coupling applications.
- Works with SM1 lens sleeves to create a light-tight structure.
- Compatible with SM-thread photodetectors or power meter probes.

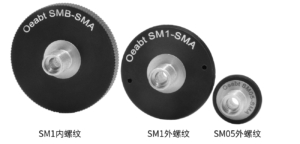

- Available in different flange styles: SM05-SMA, SM1-SMA, SMB-SMA.
The SM-SMA series fiber connector adapters each feature an SM thread, enabling easy connection to any SMA-terminated fiber. These fiber connectors can link patch cords, fiber probes, and other devices, or connect standard fibers to optical accessories for complex optical experiments.
| Product Name | SMA Fiber Adapter Plate |
| Port Type | SMA connector |
| Ferrule Bore | Ø3.2 mm |
| Thread Type | SM05 / SM1 |
| Material | Aluminum alloy + stainless steel |
| Model | Specifications |
| SM05-SMA | Thread: SM05 (0.535”-40) external thread; Dimensions: Ø13.3×11.4 mm; Weight: 2.6 g |
| SM1-SMA | Thread: SM1 (1.035”-40) external thread; Dimensions: Ø26×11.4 mm; Weight: 5.6 g |
| SMB-SMA | Thread: SM1 (1.035”-40) internal thread; Dimensions: 30.4×11.7 mm; Weight: 5.6 g |
Technical Description
- The SM-SMA series fiber connector adapters each include an SM thread for easy mating with any SMA-terminated fiber. They can connect patch cords, fiber probes, and other devices, or link standard fibers with optical components for sophisticated optical experiments.
- Multiple versions available: SM05-SMA, SM1-SMA, SMB-SMA.

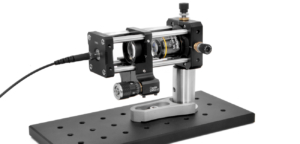

- Application Diagram

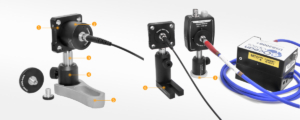

Assembly

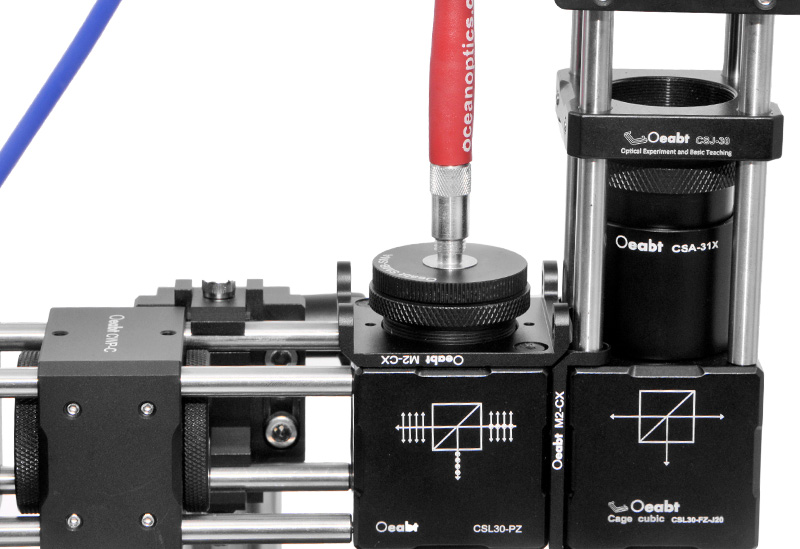

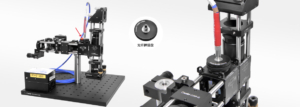

Application Examples

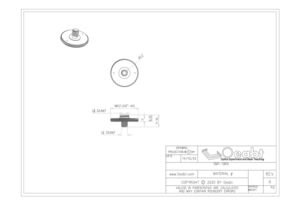

Engineering Drawings
Additional information
| Weight | N/A |
|---|---|
| Model | SM05-SMA, SM1-SMA, SMB-SMA |
