Description
Product Description
- For fiber coupling and alignment systems requiring 360° continuous rotation
- Accommodates bare fiber with Ø125 µm outer cladding(buffer stripped)
- Easy-load V-groove design
- Magnetic clamping force on the arm
- Compatible with Nano series flexure stages
Bare fiber rotators are ideal for angle-sensitive optical setups such as polarizationdependent experiments and coupling optimization.
| Item | Specification |
| Model | FH-FR |
| Dimensions | 58.6 × 25.8 × 31.5 mm |
| Adjustment Range | 360° continuous rotation with lock |
| Optical Axis Height | 12.5 mm |
| Eccentricity | 10 μm |
| Clamping Diameter | Ø125 μm bare fiber (buffer removed) |
| Weight | 61.1 g |
| Material | 7075 Aluminum Alloy |
Technical Notes
The bare fiber rotator is designed for angle-sensitive systems including polarization experiments and coupling optimization. It enables 360° continuous rotation of the fiber around its core center with max eccentricity 10 µm across the full range, ensuring precise alignment with couplers, polarizers, and other components.

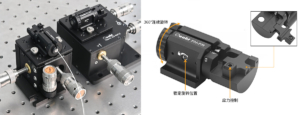

It holds Ø125 µm bare fiber (buffer stripped) via a V-groove and strong magnetic clamp arm. A top set screw allows adjustable clamping force to minimize stress-induced fiber birefringence.

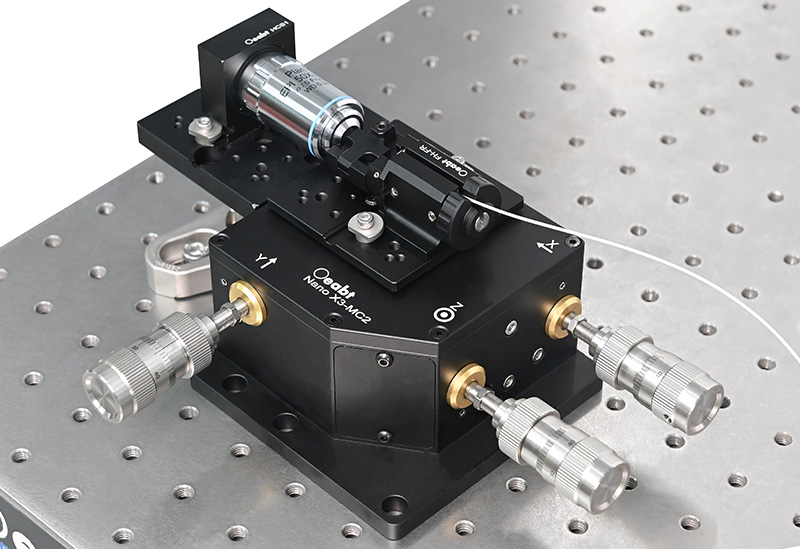

The base features a 3 mm wide keyway compatible with multi-axis flexure stages and fiber adapter plates. When mounted on a flexure stage top plate, the optical axis height is 12.5 mm. The keyway ensures accurate reinstallation alignment after removal.

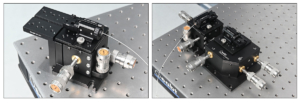

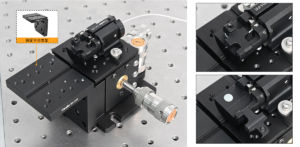

Assembly

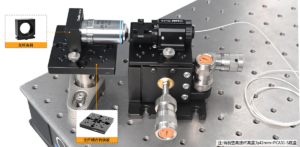

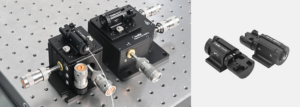

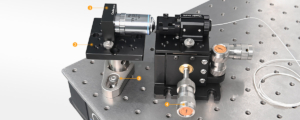

Application Examples
Engineering Drawings
Additional information
| Weight | 0.0611 kg |
|---|---|
| Dimensions | 5.86 × 2.58 × 3.15 cm |
| Optic Type |
