Product Description
- The vernier micrometer is a standard actuator for the manual drives of most translation stages;
- Standard Ø9.5 mm mounting shank with a knurled adjustment knob for easy gripping;
- Pitch of 0.5mm (50.8TPI), direct reading in 10μm increments with a vernier reading of 1μm;
- Equipped with a 4mm hexagonal recess for adjustment even in confined spaces.

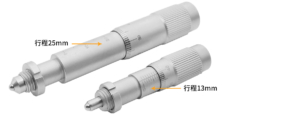

The vernier micrometer serves as a standard actuator for the manual drives of most translation stages. The SM25 features a 25mm travel range and a load capacity of 23lb, while the SM13 has a 13mm travel range and a load capacity of 9lb. The micrometer has a pitch of 0.5mm (50.8TPI), with direct reading in 10μm increments and a vernier reading of 1μm.
| SM Series Vernier Micrometer Head | SM25 | SM13 |
| Travel Range | 25mm | 13mm |
| Adjustment Thread | 50.8TPI | 50.8TPI |
| Drive Pitch | 0.5mm | 0.5mm |
| Scale | 10µm | 10µm |
| Vernier | 1μm | 1μm |
| Sensitivity | 1μm | 1μm |
| Axial Load | 102N | 40N |
| Weight | 83.5g | 35.0g |
| Material | 304 Stainless Steel | 304 Stainless Steel |
Technical Description

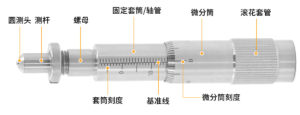

(1) The spindle end features single-point contact, and the ribbed friction sleeve maintains a constant force for finer adjustment and positioning. This effectively avoids errors caused by excessive force and reduces positioning alignment errors.
(2) The SM25 micrometer head has a travel range of 25mm, and the SM13 micrometer head has a travel range of 13mm. The vernier scale is 1mm; the pitch is 0.5mm, with direct reading in 10μm increments and a vernier reading of 1μm. The laser-engraved scale is clear, wear-resistant, fade-proof, low in error and enables more accurate measurement.
(3) The micrometer knob is designed with a hexagonal recess, which allows adjustment with a 4mm hexagonal wrench even in confined spaces. It is adaptable to various installation scenarios and offers higher compatibility.

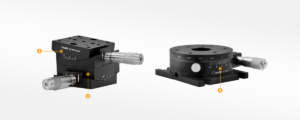

(4) Application Schematic
Assembly

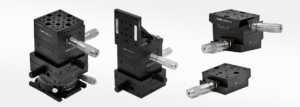

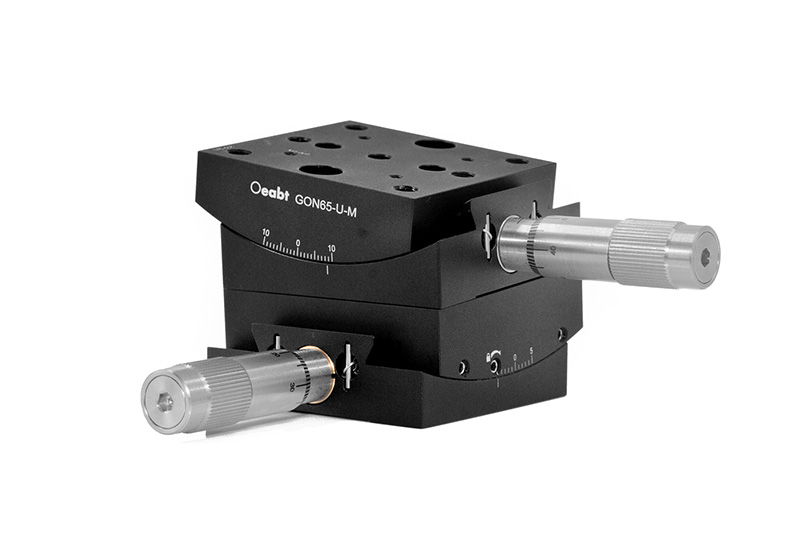

Application Examples
