Description
Product Description
- Platform pressure block with multiple height options;
- Compatible with any type of mounting hole to reduce component installation time;
- Sold in pairs (2 pieces per set);
- Includes 1 M6 cap screw and 1 washer;
The fixture pressure block is useful for constructing optical-mechanical components. It is compatible with any type of mounting hole, facilitating the clamping of grooved (concave/convex) components and reducing component installation time.
| Parameter | PCL-2 | PCL-3 | PCL-4 | PCL-5 |
| Specification (mm) | 38.1*16.0*7.8 | 38.1*16.0*8.8 | 38.1*16.0*9.8 | 38.1*16.0*10.8 |
| Clamping Thickness | 2mm | 3mm | 4mm | 5mm |
| Countersink | Ø6.7mm*28.3mm | Ø6.7mm*28.3mm | Ø6.7mm*28.3mm | Ø6.7mm*28.3mm |
| Weight | 6.2g | 6.2g | 6.3g | 6.6g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy |

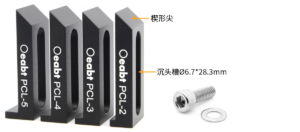

(1) The fixture pressure block is practical for assembling optical-mechanical components. It is compatible with any type of mounting hole to minimize installation time. The front end of the pressure block features a wedge-shaped tip, which f
acilitates clamping grooved (concave/convex) components. The central countersink is Ø6.7mm28.3mm, and the pressure block can be used with optical-mechanical products of 2-5mm thickness, secured with the included cap screw and washer.

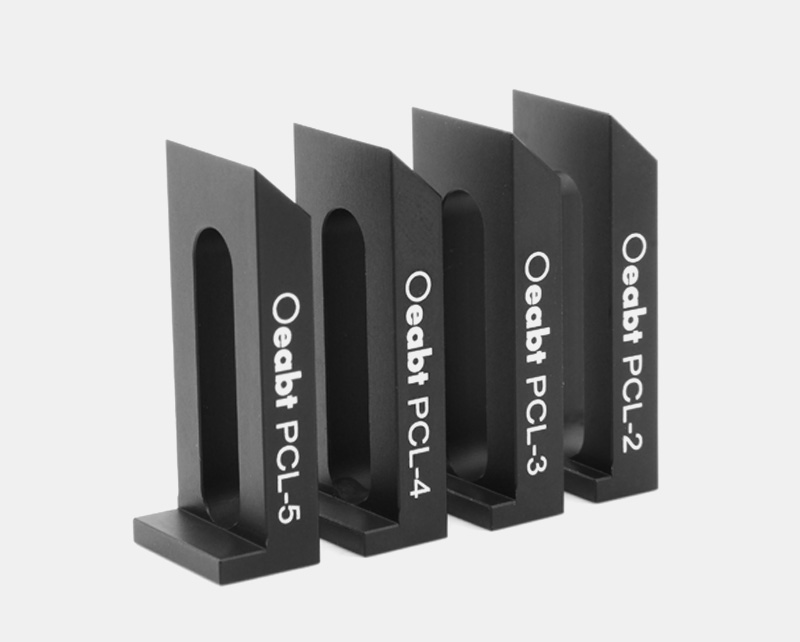

(2) Multiple clamping height options available

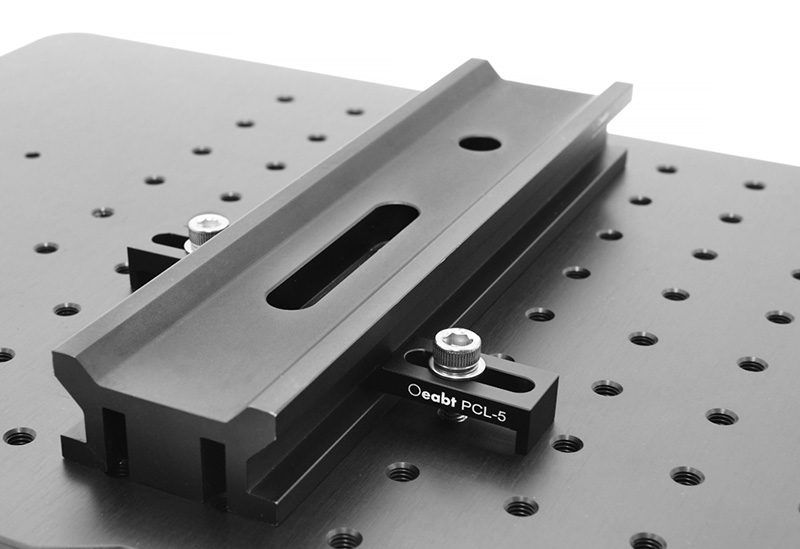

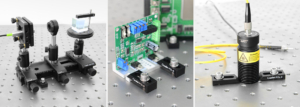

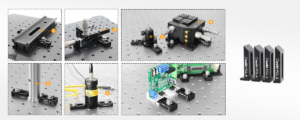

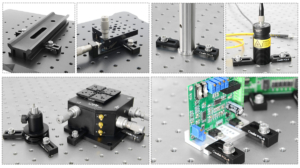

Application Examples
