Product Description Attenuation optical assembly for laser observation with cameras. Easy to control and adjust the output power of fixed-power lasers. Designed specifically for use with the BeamTester beam analysis system. Nearly distortion-free and interference-free attenuation.
O-VACM Variable Optical Attenuator
$659.60
Similar products
- O-VARM Optical Attenuator
- LD-P Series LD Light Source Controller
- LED-D1 Series LED Experimental Light Source
- LED-C Series LED Experimental Light Source
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Attenuation optical assembly for laser observation with cameras.
- Easy to control and adjust the output power of fixed-power lasers.
- Designed specifically for use with the BeamTester beam analysis system.
- Nearly distortion-free and interference-free attenuation.
- Continuously variable attenuation ratio, suitable for beams up to 1 W/cm² or 1 J/cm².
- Directly connectable to cameras via a C-Mount adapter.

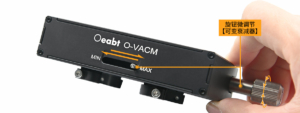

The O-VACM variable optical attenuator is an easy-to-use device for continuous attenuation of laser output power. The continuously variable attenuation module contains two continuously variable wedge attenuators, with an attenuation range from 123:1 to 65800:1.
| Item | Specification |
| Model | O-VACM |
| Wavelength Range | 380–2200 nm |
| Attenuation Range | 123:1 to 65800:1 |
| Clear Aperture | Ø12.7 mm |
| Thread Type | SM05 (0.535”-40) internal thread; 2×M4 holes |
| Cage Compatibility | 4×Ø6.05 mm through holes, 30 mm spacing |
| Max Power Density | 1 W/cm² |
| Max Energy Density | 1 J/cm² |
| Dimensions | 90.0×58.0×27.0 mm (knob excluded) |
| Note | Listed max power and energy densities correspond to the onset of thermal lensing |
Technical Description
In most camera-based systems, the laser beam power must be attenuated before it enters the beam analyzer. Conventional methods often cannot provide continuous control of laser power. The O-VARM variable optical attenuator is an easy-to-use device that enables continuous attenuation of laser output power. The module includes two continuously variable wedge attenuators and one step attenuator, with an attenuation range from 107:1 to 3000:1. Fine adjustment is available to achieve precise attenuation levels and maximize the camera’s optical dynamic range.
When stacking multiple filters for attenuation, beam distortion must be minimized. Typically, cameras cannot resolve total beam distortion below ~λ/4. The wavefront distortion from multiple optical filters is calculated as the square root of the sum of the squares of the distortion from each element. For example, if a single element is rated at λ/10 and 6 elements are used, the total wavefront distortion is λ/4 RMS:√[(1/10)² × 6] ≈ 0.25 (λ/4)

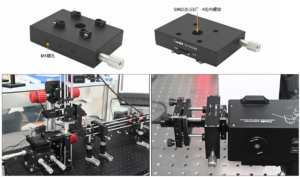

The attenuator housing features an SM05 (0.535”-40) internal thread for mounting filters or lens tubes. Four through holes on the faceplate are compatible with PCM-series cage rods for easy integration into 30 mm cage systems. Two M4 threaded holes on the side of the housing are provided for mounting posts.
Assembly

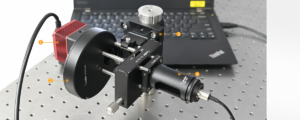

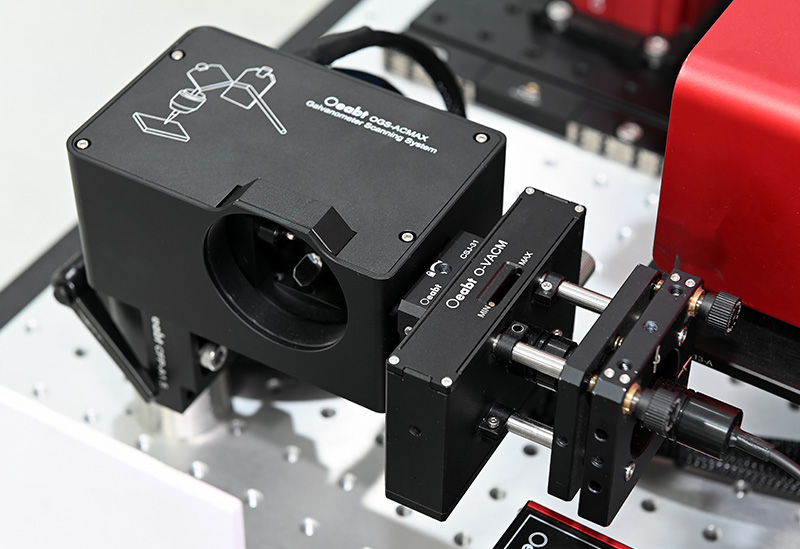

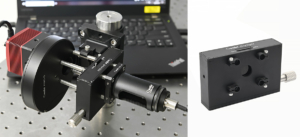

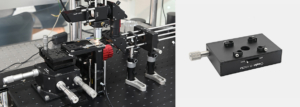

Application Examples
Engineering Drawings
Additional information
| Dimensions | 9 × 5.8 × 2.7 cm |
|---|---|
| Optic Type |
