Description
Product Description
- Tilt stage with a fixed tabletop.
- Compatible with Nano X3 series translation stages.
- Pitch adjustment operated via hand-tightened knobs.
- Adjustable pitch and tilt angle: ±4°, maximum load: 2.5kg.
The NPY series stages offer ±4° pitch and tilt adjustment, achieved through two M5*0.25mm precision adjusters on the back with 5mrad (0.5°) per turn. The large, smooth tabletop is ideal for mounting samples, facilitating alignment of optical devices with a specific plane. It is compatible with our Nano X3 series flexure translation stages and can be fixed to the working surface via counterbores on the tabletop using M4 screws.
| Model | NPY-140 | NPYR-130 |
| Tabletop Dimensions | 140*140mm | Ø134mm |
| Adjustment Range | ±4° pitch and tilt | 360° rotation, ±4° pitch and tilt |
| Loading Height | 27.5mm | 30mm |
| Load Capacity | 2.5kg | 2.5kg |
| Weight | 1262.1g | 1302.2g |
| Material | 7075 aluminum alloy | 7075 aluminum alloy |
Technical Description
The NPY series stages offer ±4° pitch and tilt adjustment, achieved through two M5*0.25mm precision adjusters on the back with 5mrad (0.5°) per turn. The large, smooth tabletop is ideal for mounting samples, facilitating alignment of optical devices with a specific plane. It is compatible with our Nano X3 series flexure translation stages and can be fixed to the working surface via counterbores on the tabletop using M4 screws.

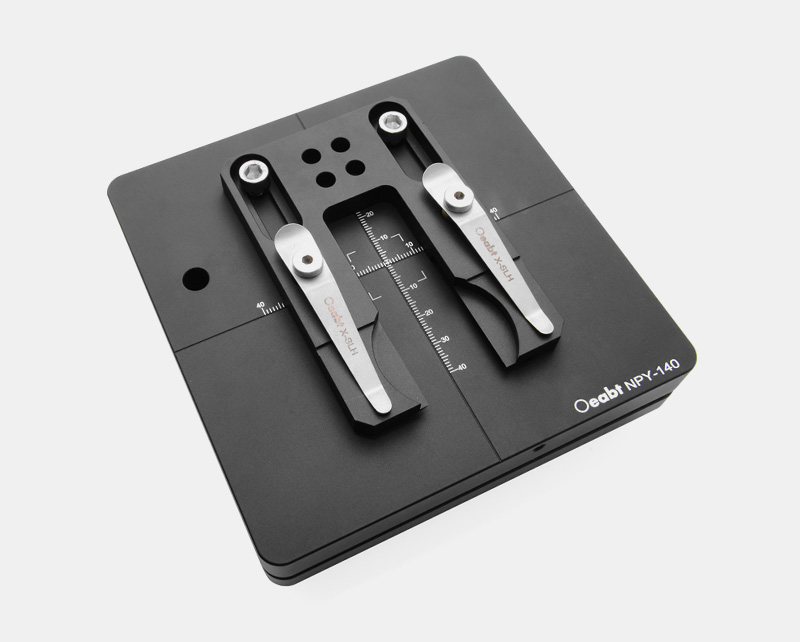

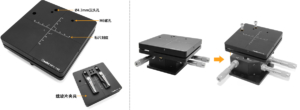

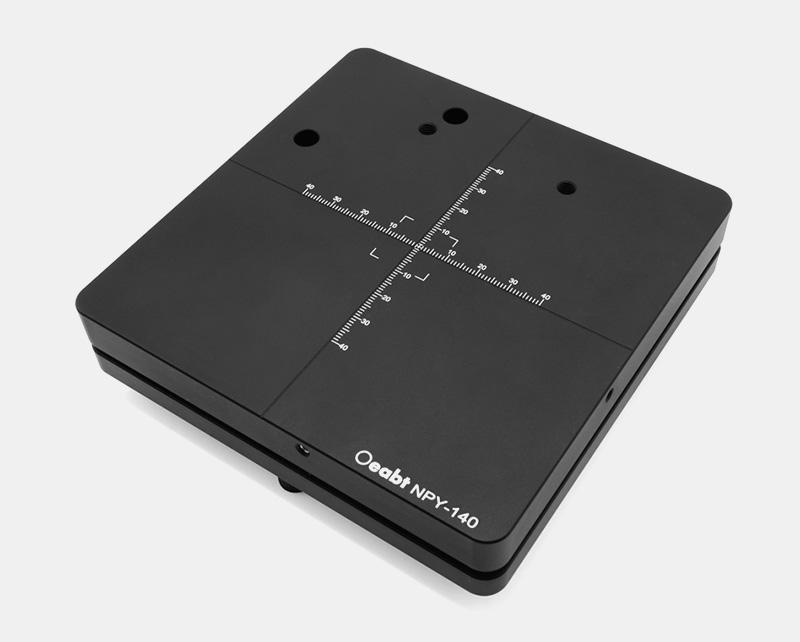

The NPY-140 tilt stage features a 140*140mm working tabletop with cross-scale alignment grooves, serving as a position reference to facilitate sample alignment. When installed onto Nano X3 series flexure translation stages, it is fixed to the working surface via counterbores on the tabletop using M4 screws. Additionally, the tabletop is equipped with 2 M6 screw holes for fixing and installing various components, such as slide holders.
The NPYR-130 tilt & rotation stage features a Ø134mm working tabletop with 360° continuous rotation. The angle scale on the outer edge of the rotation stage allows users to set the angular orientation, which can then be locked with the 2mm hex “Lock” screw. Locking the rotation axis does not hinder the adjustment of the pitch (ΘX) and tilt (ΘY) axes. The rotation, pitch, and tilt of the stage can be freely adjusted without affecting the stability of connected components.

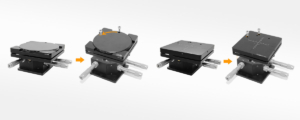

Assembly

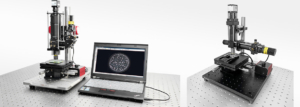

Application Example
