Product Description

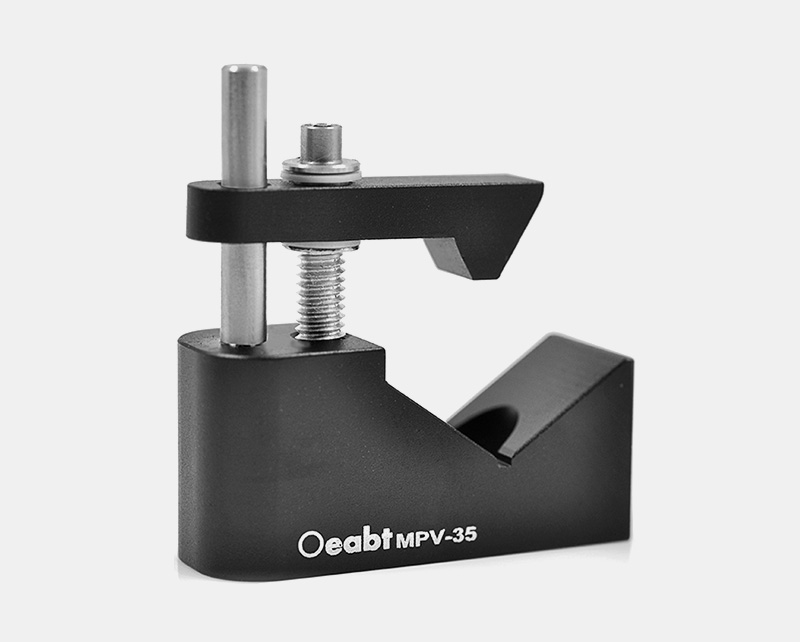

- The small V-shaped clamp block can hold cylindrical objects with diameters ranging from 6mm to 12mm.
- The V-shaped micro-gripper is ideal for applications involving short, small-diameter cylindrical components.
- Compact design, making it perfect for small experimental spaces and OEM assemblies.
- Can mount rods via the M4 counterbore at the bottom.
- Can be tightened or loosened using a 2mm hex wrench.

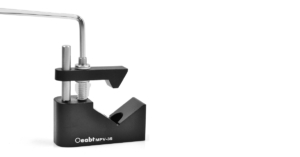

The small V-shaped clamp block is ideal for securing small cylindrical objects such as fiber collimation kits. Cylindrical objects are clamped via the included pressure arm (one per mount); the locking screw can be tightened with a 2mm ball-head screwdriver or hex wrench. The V-shaped clamp block is equipped with one M4 threaded hole at the bottom and one on the side for mounting rods.
Technical Description

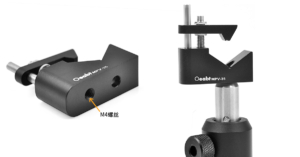

Fixed and installed on a ∅1/2 stainless steel rod with M4 screws;
Tightened using a 2mm hex ball-head screwdriver;
Assembly

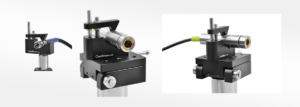

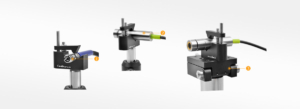

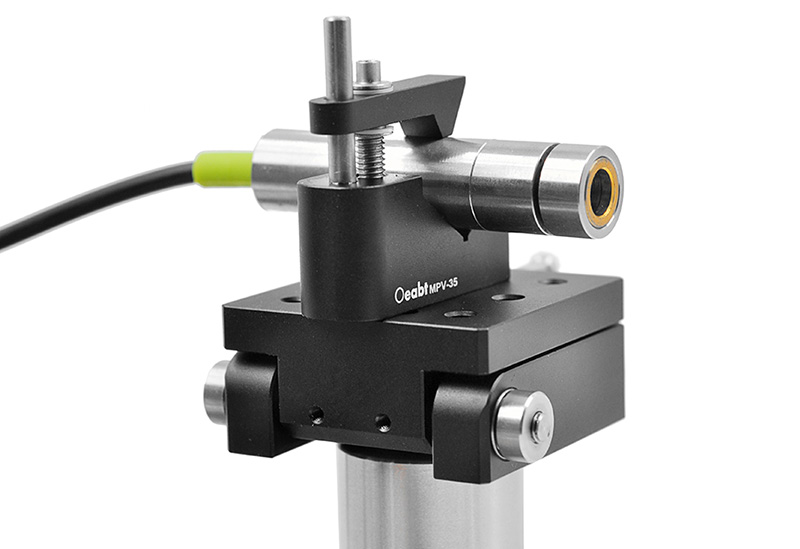

Application Example

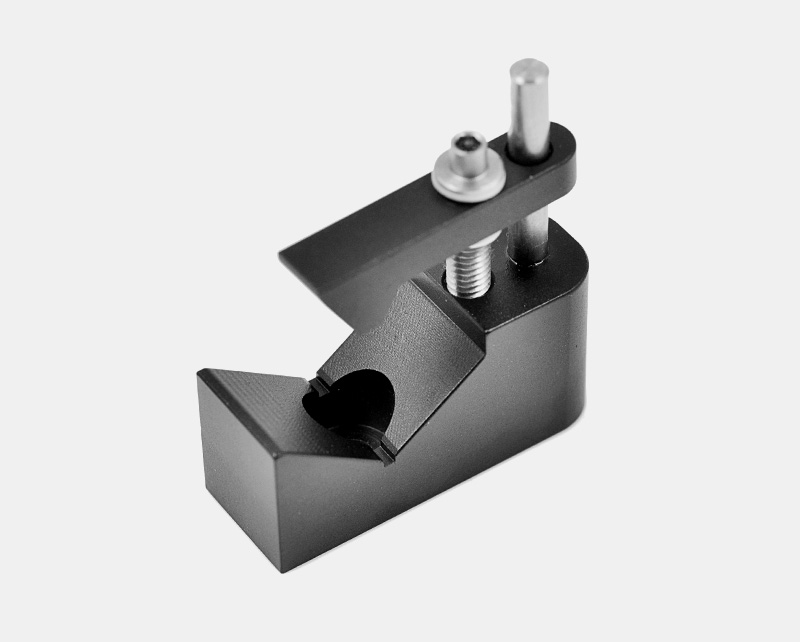

The V-shaped design caters to the installation needs of different cylindrical objects. Each model features a robust integrated V-shaped clamp block body and a pressure arm, whose contact surface is directly collinear with the center of the “V” shape. The V-shaped clamp block and vertical pressure arm provide stable 3-point contact for secure component installation.
Engineering Drawing Download
