The optical platform mount comes with a small clamping arm, offering a large mounting surface without blocking the optical path. It has a compact structure, making it ideal for prisms, wavefront sensors, small optical components, and fixed optical component mounts.
MKPM-A Series Prism Platform Mount
Price range: $88.00 through $110.00
Description

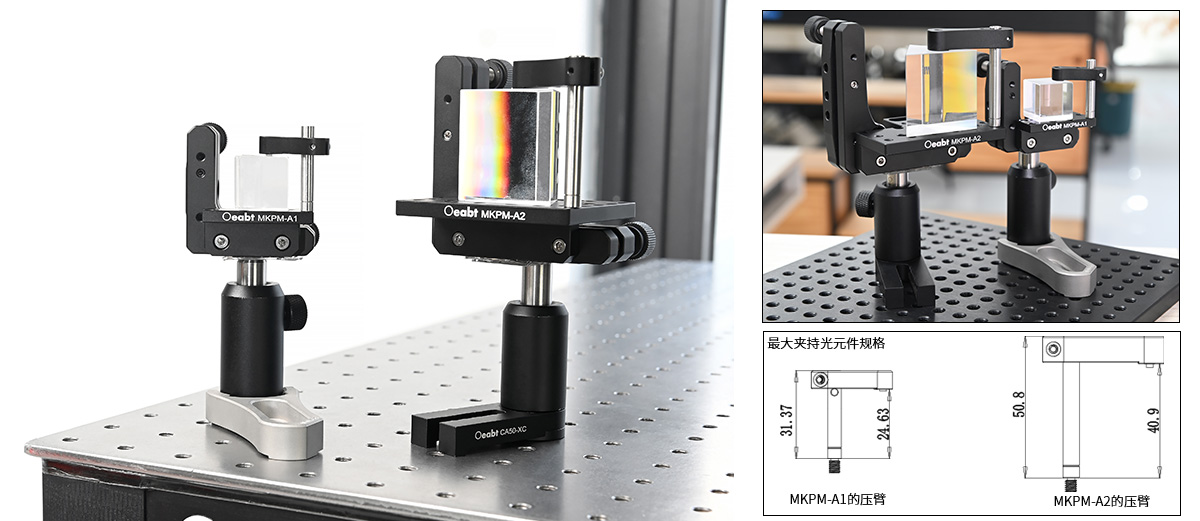

- Designed for mounting prisms, beam splitters, and non-standard optical components.

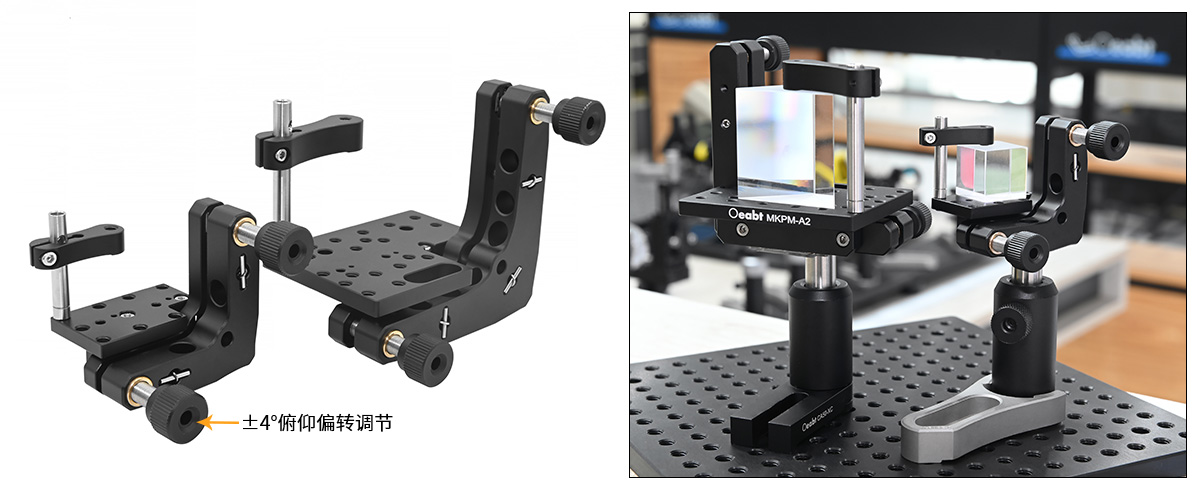

- Enables ±4° tilt/deflection adjustment.

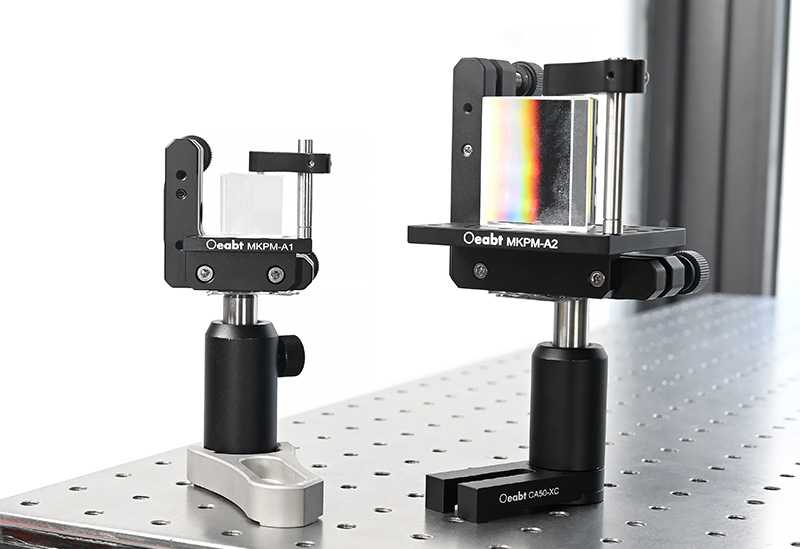

- Features a mounting platform vertical or parallel to the adjusters, with a clamping arm included.
- Equipped with M4 counterbores for optical rods.
The optical platform mount comes with a small clamping arm, offering a large mounting surface without blocking the optical path. It has a compact structure, making it ideal for prisms, wavefront sensors, small optical components, and fixed optical component mounts.
Adjustment Range | ±4° tilt/deflection |
| Adjustment Precision | 0.5° per rotation (8mrad) |
Material | 7075 aluminum alloy |
Model | MKPM-A1 | MKPM-A2 |
| Dimensions (excluding adjusters) | 49.9*49.9*34.9mm | 76.4*76.5*53.8mm |
Clamping Height | ≤24.6mm | ≤40.9mm |
| Mounting Platform | 41.125.4mm, with 8x M48 holes on the surface | 69.9*54.4mm, with 21x M4 holes and 2x Ø4.8mm holes on the surface |
Counterbore Type | 2x M4 | 6x M4 |
| Weight | 88.0g | 184.3g |
Technical Description
- The mount is equipped with a small clamping arm and provides a large mounting surface that does not block the optical path. Its compact design makes it suitable for mounting prisms, wavefront sensors, small optical components, and fixed optical component holders.
- It features two M6*0.35 adjusters, enabling ±4° tilt and deflection adjustments. The base is equipped with M4 counterbores for easy installation of mounting rods.

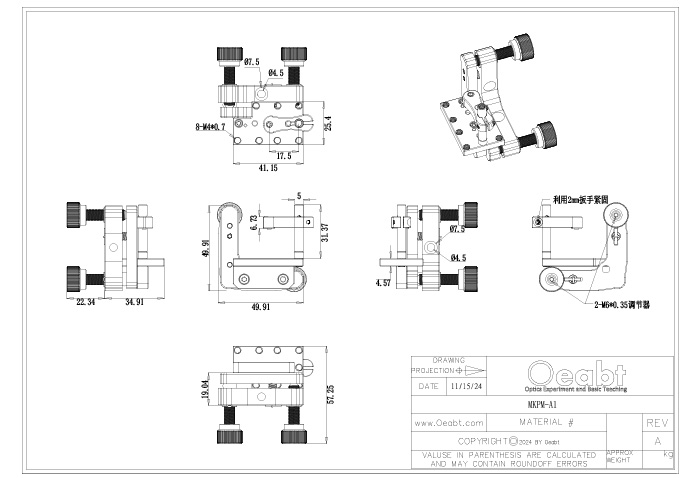

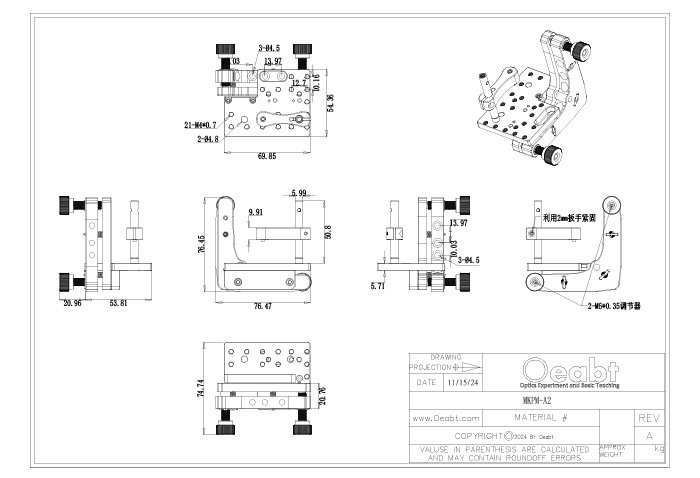

Engineering Drawing
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | MKPM-A1 Prism Platform Mount, MKPM-A2 Prism Platform Mount |
