Description
Product Description
- Laser scales: Metric scale length 214.5mm, graduation 1mm; Total length: 8.5 inches, graduation 1/10 inch;
- Used to measure beam height when placed on optical platforms or breadboards;
- Bottom magnets provide adsorption force for quick placement and removal;
- Foldable pressure plate can be fixed to other panels with screws;

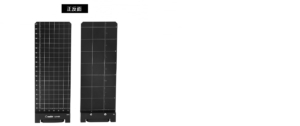

The MHR Magnetic Height Ruler is used for beam collimation and height measurement, capable of measuring beam heights up to 214.5mm. The panel is laser-engraved with both metric and imperial scales.
| Model | MHR |
| Specification | 214.5*75.0*20.0mm |
| Scale | Metric: 214.5mm, graduation 1mm; Total length: 8.5in, graduation 1/10in |
| Screw Hole Type | 6.5*18.5mm (countersunk slotted hole) |
| Weight | 196.8g |
| Material | 7075 Aluminum Alloy |
Technical Description
(1) The MHR Magnetic Height Ruler is used for beam collimation and height measurement, capable of measuring beam heights up to 214.5mm. The panel is laser-engraved with both metric and imperial scales: metric total length 214.5mm with 1mm graduation, and total length 8.5in with 1/10in graduation. In addition to vertical scales, the panel also features horizontal scale lines.

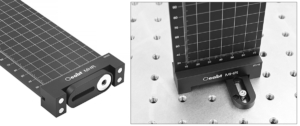

(2) The ruler is equipped with magnets at the bottom. Compared with rulers fixed on platforms, this ruler can not only be adsorbed on magnetic working surfaces but also placed flexibly. Furthermore, there is a foldable pressure plate at the bottom, which allows the ruler to be fixed on the platform using M4 stud screws. Its compact size enables it to fit in the gaps between components, facilitating easy integration into devices.

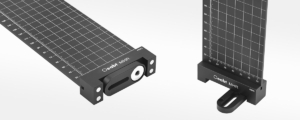

Assembly

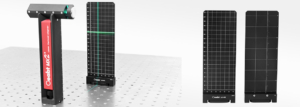

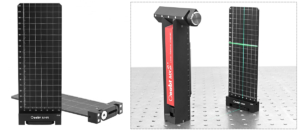

Application Examples
