MCSM2-D1.5 Camera Port Adapter
MCSM2-D1.5 Camera Port Adapter
$29.40
Similar products
- X-SLH Microscope Slide Clip
- X3-SLH Microscope Slide Holder
- CAX-R Series 66 mm Heavy-Duty Lifting Mount
- OPH-B Series 66 mm Heavy-Duty Optical Rail / Mounting Bracket
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Extend Oeabt series sleeves and cage systems to versatile microscopy imaging setups.
- Ø1.5inch male dovetail for easy mechanical mounting and optical port alignment.
- Connect custom optical systems to microscope tubes and camera ports from other manufacturers.
- Compatible with SM1, SM2 and 30 mm cage systems.
The MCSM2D1.5 camera port adapter is used to connect custom optical systems or detectors to microscope tubes and camera ports from other microscopy manufacturers, such as the camera ports on Thorlabs Cerna and Nikon Eclipse upright microscopes.
Specifications
| Model | MCSM2D1.5 |
| Dimensions | Ø55.9 × 16.2 mm, inner bore Ø37 mm |
| Dovetail Type | Ø1.5inch, α=90° |
| Thread Type | SM1 (1.035”40) internal thread; SM2 (2.035”40) external thread; 4× 440 (30 × 30 mm spacing) |
| Weight | 36.3 g |
| Material | 7075 aluminum alloy |
Technical Notes
The MCSM2-D1.5 camera port adapter connects custom optical systems or detectors to microscope tubes and camera ports from other manufacturers, such as Thorlabs Cerna and Nikon Eclipse upright microscopes. A camera can be attached to the adapter via an externally threaded C-mount or SM1 connector for integration into the microscope system. The adapter mounts to the optical port using the Ø1.5-inch male dovetail.
It also features SM1 internal thread, SM2 external thread, and four 4-40 tapped holes on a 30 mm grid for cage mounting. It integrates with SM1, SM2 lens tubes and 30 mm cage systems to enable mating between optical ports and threaded ports.
Assembly

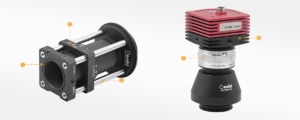

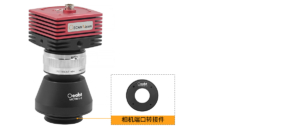

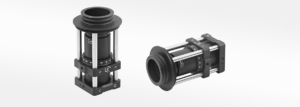

Application Examples
Engineering Drawings
MCSM2-D1.5 Engineering Drawing
Additional information
| Weight | 0.0363 kg |
|---|---|
| Optic Type |
