Product Description Extend Oeabt series sleeves and cage products to diverse microscopy imaging systems. Connect custom-built optical systems to microscope eyepiece ports from other manufacturers. Dovetail design enables easy mechanical mounting and optical port alignment. Compatible
MCP Series Microscopy Dovetail Adapter Plates
$50.60
Similar products
- X-SLH Microscope Slide Clip
- X3-SLH Microscope Slide Holder
- CAX-R Series 66 mm Heavy-Duty Lifting Mount
- OPH-B Series 66 mm Heavy-Duty Optical Rail / Mounting Bracket
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Extend Oeabt series sleeves and cage products to diverse microscopy imaging systems.
- Connect custom-built optical systems to microscope eyepiece ports from other manufacturers.
- Dovetail design enables easy mechanical mounting and optical port alignment.
- Compatible with SM1, SM2 lens tubes and 30 mm, 60 mm cage systems.
The MCP series adapters integrate microscopy stages with SM1, SM2, 30 mm and 60 mm cage systems, enabling optical and threaded port mating. They are ideal for custom microscopy imaging setups, including wide-field observation, fluorescence cubes, and epi/trans-illumination accessories. They fit the trinocular ports of upright Nikon Eclipse, Thorlabs (MCP-D2, MCP-D2B) and select Olympus (MCP-D2- 1.8B) microscopes.
Specifications
| Item | Details |
| Dimensions | 71.1 × 71.1 × 14.0 mm |
| Dovetail Angle | 60° |
| Through-Hole Spacing | Ø6.02 mm, 60 × 60 mm |
| Material | 7075 aluminum alloy |
Model Specifications

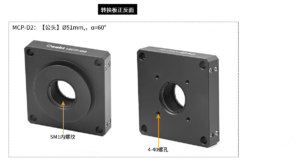

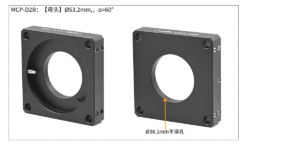

| Model | MCP-D2 | MCP-D2B | MCP-D2-1.8B |
| Dovetail Type | Male: Ø51 mm | Female: Ø53.2 mm | Male: Ø51 mmFemale: Ø46.17 mm |
| Bore Type | SM1 (1.035”-40) internal thread | Ø38.1 mm smooth bore | SM1 (1.035”-40) internal thread |
| Compatible Cage | 30, 60 mm | 60 mm | 60 mm |
| Weight | 185.6 g | 110.1 g | 151.0 g |
Technical Notes
The MCP series adapters integrate microscopy platforms with SM1, SM2, 30 mm and 60 mm cage systems, enabling optical and threaded port mating for custom imaging setups. They support wide-field imaging, fluorescence cubes, epiillumination and transillumination modules, and are compatible with trinocular ports on upright Nikon Eclipse, Thorlabs and select Olympus microscopes.
MCP-D2 and MCP-D2B are designed for wide-field observation, fluorescence cubes and epiillumination accessories. They mount directly to MCSM2- D2 dovetail adapters and MDFM-C fluorescence cube modules, and fit trinocular ports on Nikon Eclipse and Thorlabs microscopes.

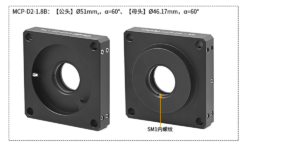

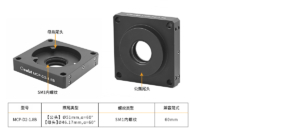

MCP-D2-1.8B has a male dovetail compatible with MCP-D2B plus a Ø46.17 mm female dovetail, matching the male dovetails on Olympus wide-field modules and trinocular ports.
Assembly

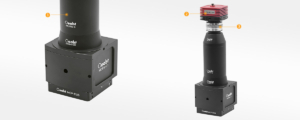

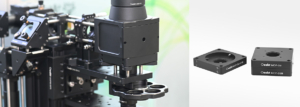

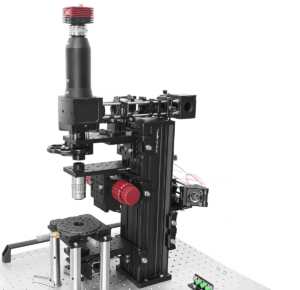

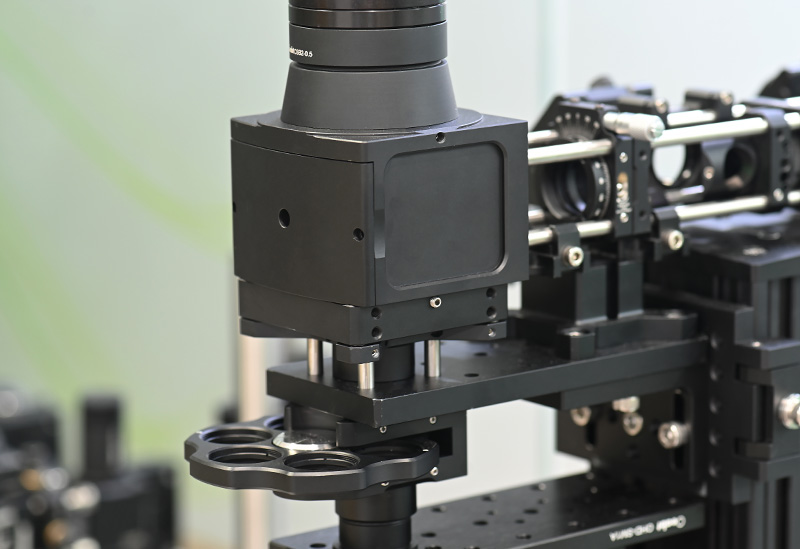

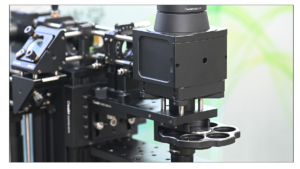

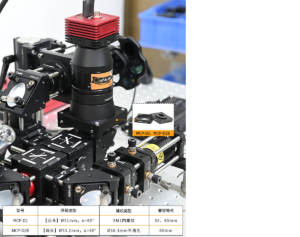

Application Examples
Engineering Drawings
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | MCP-D2, MCP-D2B, MCP-D2-1.8B |
