Description
Product Description
- SM05 (0.535”-40) internal thread, supplied with 2 CSK05 retaining rings.
- Adjustment range: ±2.5° yaw/tilt.
- Can mount optical components with Ø12.7mm and thickness ≤3.6mm.
- Compatible with 16mm cage systems.
- M4 screw hole at the bottom for rod mounting.

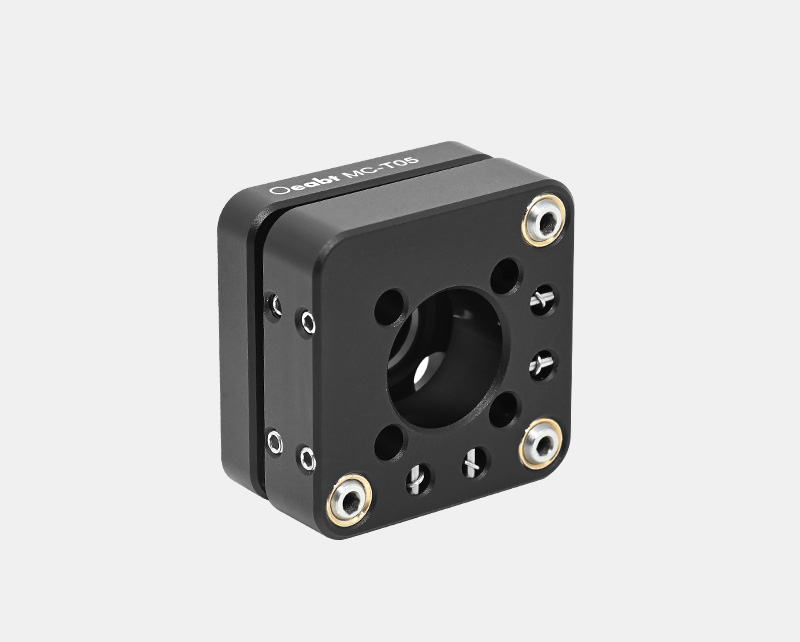

The MC-T05 adjustment mount is an optical component mounting bracket specifically designed for 16mm cage systems, providing ±2.5° yaw/tilt adjustment.
| Model | MC-T05 |
| Dimensions | 35.6*35.6*19.5mm |
| Adjustment Range | ±2.5° yaw/tilt |
| Central Aperture | SM05 (0.535”-40) internal thread |
| Through Hole Spacing | Ø4.03mm, spacing 16*16mm |
| Screw Hole Type | 1 M4 screw hole |
| Weight | 52.2g |
| Material | 7075 aluminum alloy |
Technical Description

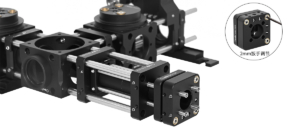

（1）The MC-T05 adjustment mount is an optical component mounting bracket specifically designed for 16mm cage systems, providing ±2.5° yaw/tilt adjustment. The mount is equipped with three M5*0.25 fine-adjustment screws with a precision of 2.6mrad/turn. A 2mm wrench can be used to adjust these screws.
(2) When mounting a Ø1/2-inch optical component, simply clamp it with the included SM05 retaining ring. The clamping thickness must be ≤3.8mm. The standard SM05 (0.535”-40) internal thread design allows installing a CSA05 series lens sleeve at the front of the mount when thicker optical components need to be loaded.

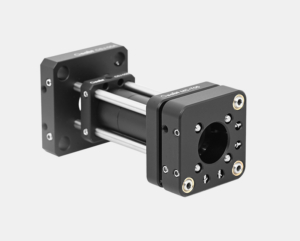

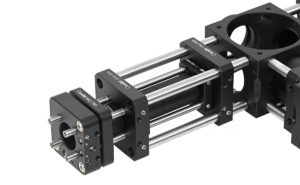

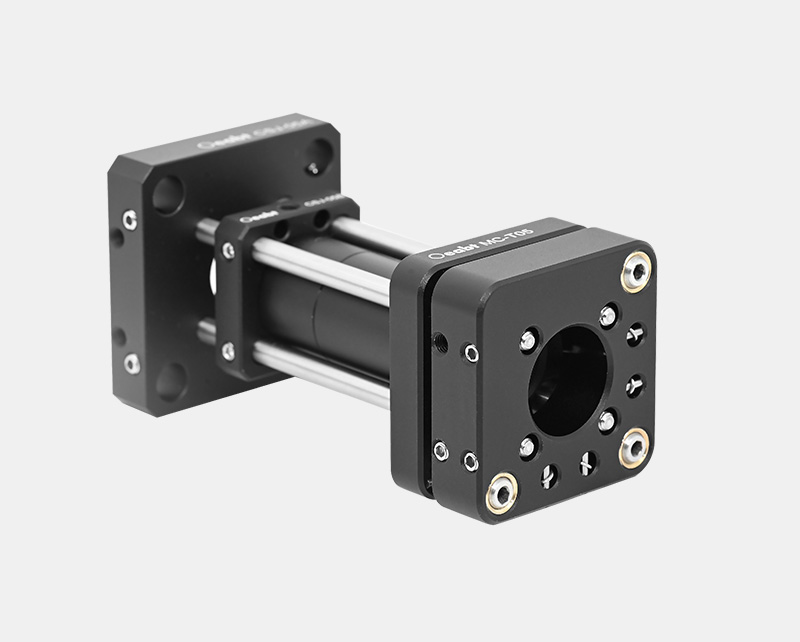

The four Ø4.03mm through holes on the mount are compatible with SPCM series cage support rods for integration into 16mm cage system applications. These rods can pass through the adjustment mount and be fixed in position via the side set screws.

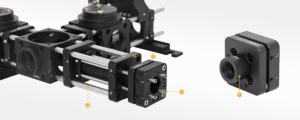

Assembly

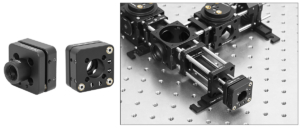

Application Example
Engineering Drawing Download
