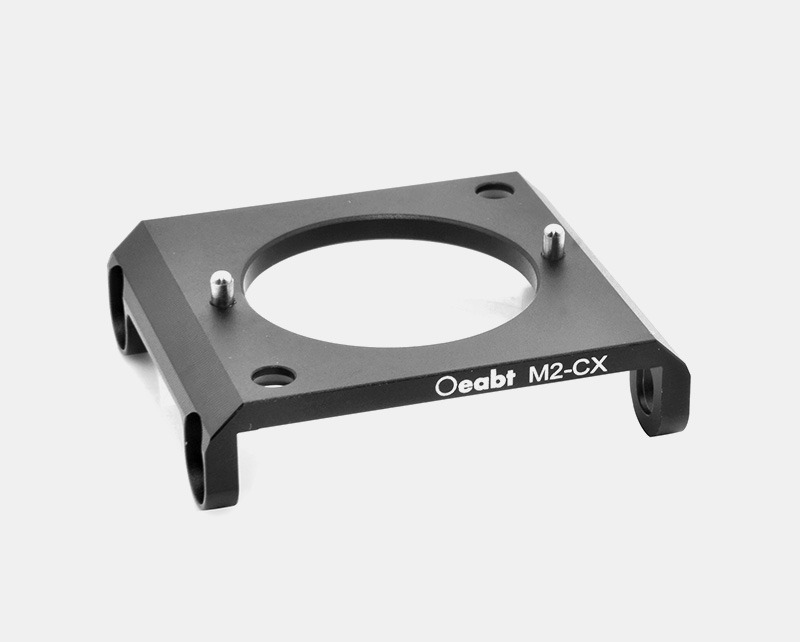

M2-CX Cube Connector

Description

Product Description

• Connects two 30 mm cage cubes side by side
• Compatible with 30 mm cage systems
• Center bore Ø26.3 mm, allows transmission aperture for 30 mm cage system components
• Supplied with 4×4-40 cap screws and 2×4-40 flat-head screws

The M2-CX series is a cage cube connector for quickly joining our 30 mm cage cubes. Its stackable design supports direct connection of any number of cage cubes, providing flexibility for building complex optomechanical setups.

Technical Description

(1) The M2-CX series is a cage cube connector for quickly joining our 30 mm cage cubes. Its stackable design supports direct connection of any number of cage cubes, offering flexibility for complex optomechanical assemblies. Alignment Pins: Due to alignment pins on the connector, mate with the drilled holes next to the SM1 threaded holes on the cube surface.M2-CX is compatible with CSL30-M2 cage cubes; M2-CX2 is compatible with M2-W series cage cubes.

(2) The connector can be installed using the included screws to stack cubes. Mounting the connector on a cube does not interfere with cage rod attachment. Cage rods can be secured directly to the cube via the 4-40 threaded holes on the cube connector.

(3) Supplied screws:

• 2×4-40 flat-head screws: install into the two recessed holes on the inner face of the connector for attachment to a cube
• 4×4-40 cap screws: install into the four counterbored holes on the side for locking to another cube

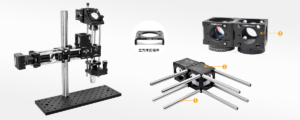

Assembly

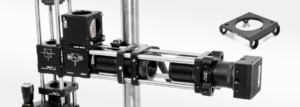

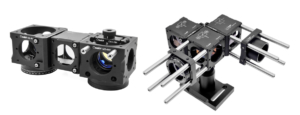

Application Examples

Engineering Drawings

M2-CX2 Engineering Drawing
