Description
Product Description
- Four sides are equipped with SM05 (0.535”-40) threaded holes;
- The other two opposite sides have Ø16.1mm through-holes;
- 4-40 threaded holes for mounting SPCM series Ø4mm cage rods;
- 3-48 threaded holes for mounting 16mm cage plates.

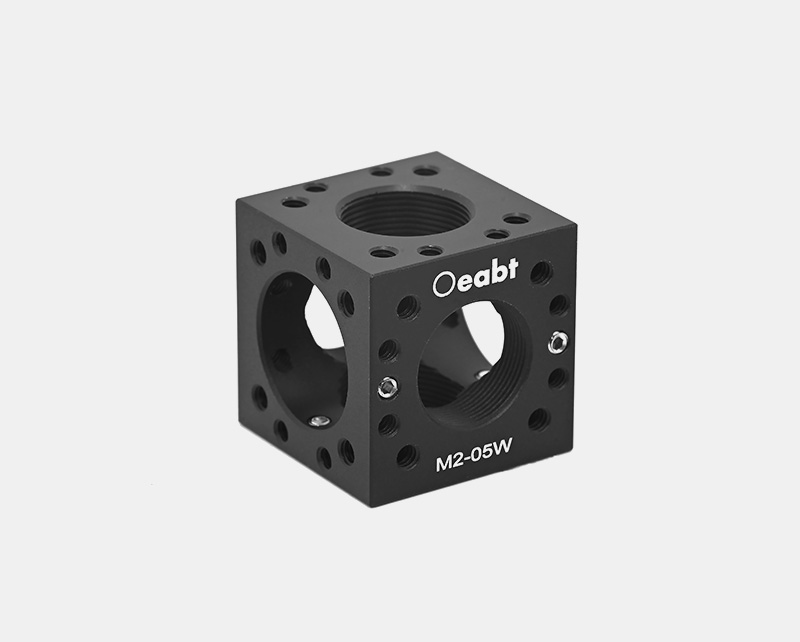

Each side of the M2-05W cage cube is provided with 4-40 threaded holes spaced 16mm apart, allowing direct mounting of SPCM series Ø4mm cage rods. The LFM05-C prism mount can integrate prisms or cubes up to 10mm into the M2-05W 16mm cage cube. The CSJ-T05 cube clamp can be directly mounted on the 16mm cube for use with the prism mount, usually installed on the two sides with through-holes.
| Model | M2-05W Cage Cube |
| Specification | 25.0*25.0*25.0mm |
| Central Aperture | 4 x SM05 (0.535”-40) internal threads; 2 x Ø6.35mm |
| Threaded Hole Type | 24 x 4-40 holes; 24 x 3-48 holes |
| Weight | 17.9g |
| Material | 7075 aluminum alloy |
| Model | LFM05-C Prism Mount |
| Specification | Ø17.0*15.75mm |
| Central Aperture | Ø6.35mm |
| Weight | 7.7g |
| Material | 7075 aluminum alloy |
| Model | CSJ-T05 Cube Clamp |
| Specification | 25.025.05.6mm |
| Adjustment Screw | 10-32 UNC |
| Weight | 9.0g |
| Material | 7075 aluminum alloy |
Technical Description

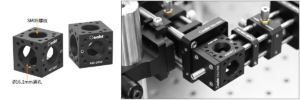

(1) Each side of the M2-05W cage cube is equipped with 4-40 threaded holes spaced 16mm apart, enabling direct installation of SPCM series Ø4mm cage rods. Four of its sides are provided with SM1 (1.035″-40) threaded holes, and the centers of the other two sides are each equipped with a Ø16.1mm through-hole, surrounded by 4 x 4-40 threaded holes for mounting our cage cube base plate or cube clamp.

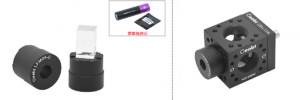

(2) The LFM05-C prism mount can integrate prisms or cubes up to 10mm into the M2-05W 16mm cage cube. Optical components can be fixed with adhesives (sold separately). After mounting the mount on the cube, it can be manually rotated 360° for coarse adjustment, and then the set screw on the side is used to lock the position of the mount. Additionally, a Ø6.35mm central through-hole is provided to allow the laser beam to pass through the mount.

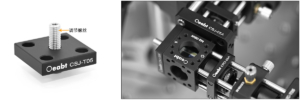

(3) The CSJ-T05 cube clamp can be directly mounted on the 16mm cube for use with the prism mount, usually installed on the two sides with through-holes. The clamping mechanism consists of an adjustment screw with a ±5° rotating head; according to the height of the installed optical component, turn the adjustment screw to press and fix it above the installed component.

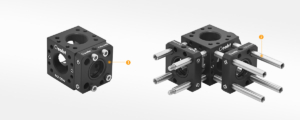

Assembly

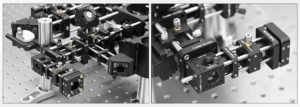

Application Examples
