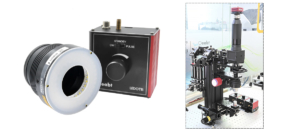

Product Description
- High-brightness diffuse reflective backlight, suitable for machine vision applications
- Center wavelength range: 454 nm to 640 nm; white light option is also available
- SM1 (1.035”-40) internal threaded hole
- Compatible with 30 mm cage systems
- Integrated M8 connector, used with a dimming controller
The backlight LED light source is a high-brightness, stable and uniform light source that provides a flatter illumination field than traditional point light sources.

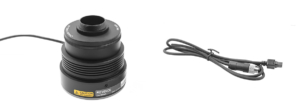

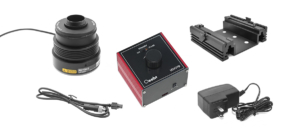

| LED-BL Series Backlight LED | |||
| Model | Center Wavelength | Output Wavelength Range | Electrical Power |
| LED-BL-454 | 454 nm | ±8 nm | 5 W |
| LED-BL-520 | 520 nm | — | — |
| LED-BL-640 | 640 nm | — | — |
| LED-BL-6KMAX-5 | White 6000–6500 K | White 6000–6500 K | 5 W |
| LED-BL-6KMAX-10 | — | — | 10 W |
| Electrical Power | Output Voltage | Output Current |
| 5 W | 3–3.5 V | 1.5 A |
| 10 W | 3–3.5 V | 3 A |
| Housing Dimensions | 80.0×50.0×19.1 mm |
| Light Wavelength | Visible spectrum range |
| Light Package | 3535 |
| Connector Type | M8 type |
| Brightness Adjustment | Stepless dimming (adjust brightness via potentiometer) |
| Divergence Angle | 120° |
| External Trigger Input | Positive trigger |
| Trigger Delay Time | ＜80 μs |
| External Trigger Frequency | ＜1/T (determined by strobe duration; e.g., T=1 ms → approx. 1 kHz) |
| Operating Temperature | 0–40 ℃ |
| Standby Power Consumption | ＜0.2 W |
| Weight | 128.8 g |
| LED Dimming Controller | |||
| Model | Output Electrical Power | Rated / Peak Current | Set / Operating Current |
| LEDOTB-1000 | 5 W | 1000 mA | 390 mA |
| LEDOTB-2000 | 10 W | 2000 mA | 860 mA |
| Housing Dimensions | 76.0×74.0×47.0 mm |
| Max. Flash Frequency | 10 kHz |
| Min. Strobe Pulse Width | 50 μs |
| Strobe Switching Time | ＜25 μs |
| Input Voltage | 12 V regulated DC |
| Operating Temperature | 0–40 ℃ |
| Storage Temperature | -40 ℃ to +70 ℃ |
| Weight | 175 g |
Curves
Technical Description

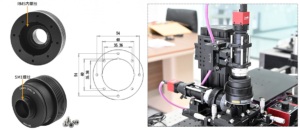

The backlight LED light source is a high-brightness, stable and uniform light source with a flatter illumination field than conventional point sources. It comes with 2 frosted diffusers, mounted through the central SM1 threaded hole with an integrated diffuse reflection window, which effectively eliminates light concentration and further optimizes illumination uniformity.
This series covers center wavelengths from 454 nm to 640 nm and offers a broadband white light option.
The LED housing is equipped with 4 through holes compatible with Ø6 mm cage posts, enabling installation in 30 mm cage systems and DIY microscopy imaging modules for flexible configuration. Secure the cage post with the set screw on the side of the through hole using a 2.0 mm hex wrench.
In addition, the light source housing features four M6 countersunk slots, allowing the light source to be mounted to an optical table with cap screws, providing more options and convenience for system integration.

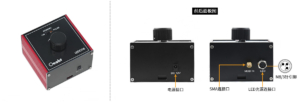

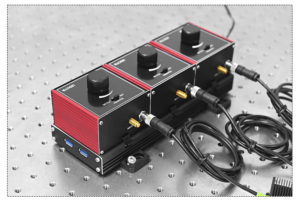

The LEDOTB controller is a compact controller for adjusting the light intensity of LED light sources. It can drive LEDs at a maximum current of 1000–2000 mA. Users can perform stepless dimming by operating a single potentiometer knob with integrated on/off function. This controller supports constant current drive mode (CW) and pulse mode (PULSE, via SMA 5 V TTL signal input). LEDOTB provides stable and reliable light source support for CCD camera exposure assistance and digital microscopy imaging systems.
| Power Supply | Min. Voltage | Max. Voltage | Max. Rated Current |
| DC 12 V | +11.5 V | +12.5 V | 1 A |

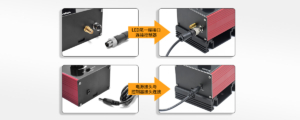

Assembly

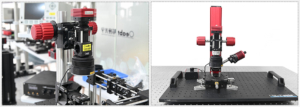

Application Examples、

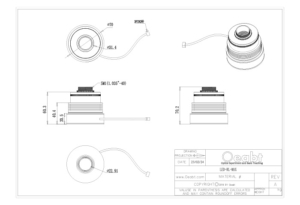

Engineering Drawings
