Description

Product Description

  • The LD light source controller is compatible with 2-pin and 3-pin LD laser diodes.
  • TO-18 and TO-5 laser diodes are available as optional accessories.
  • Diode mounts with SM1/SM05 threads are provided.

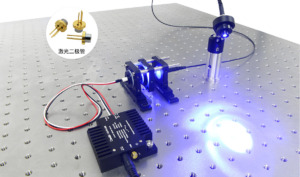

The LD light source controller can adjust the frequency and brightness of LD laser diodes via an external pulse signal (PWM). The frequency range is 0–5 kHz, and the duty cycle range is 0–100%.

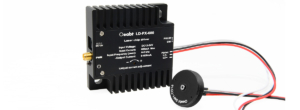

LD Light Source Controller
ModelOutput CurrentBrightness AdjustmentPWM Control
LD-P-3A3ANot AdjustableSupported
LD-P-1.8A1.8A
LD-P-0.75A0.75A
LD-PX-600600mAAdjustable
LD-PX-380380mA
LD-PX-250250mA
LD-PX-190190mA
LD-PX-112112mA
LD-PX-8484mA
LD-PX-5353mA



Laser Diode
Diode TypeWavelengthOutput PowerInput CurrentBrand
TO-18 (Ø5.6mm)405nm80mW80–90mASONY
 488nm80mW80–90mA—
 505nm10mW60mASharp
 515nm10mW60mASharp
 520nm30mW110mASharp
 650nm100mW130mAMitsubishi
 660nm130mW250mAMitsubishi
 780nm100mW110mAROHM
 808nm30mW360mAHuaguang
 830nm210mW240mASharp
TO-5 (Ø9mm)450nm3.75W3.75ANichia
 638nm1.2W1.2AMitsubishi
 520nm1.0W1AMitsubishi



Diode Mount
ModelMounting ApertureThread TypeWeightMaterial
SM05-TO18Ø5.6mmSM05 Male Thread1.7g7075 Aluminum Alloy
SM1-TO18—SM1 Male Thread9.2g—
SM05-TO5Ø9mmSM05 Male Thread1.2g—
SM1-TO5—SM1 Male Thread8.7g—

Technical Specifications



The unique emission principle and generation process of laser light endow it with characteristics not found in ordinary light: excellent monochromaticity, coherence, directionality, and high brightness. Oeabt offers laser diodes in two packages—TO-18 and TO-5—with different output characteristics (power, wavelength, beam size, shape, etc.), for use with the LD light source controller.

The diode mount is mainly used to install TO-18 and TO-5 laser diodes, featuring SM05 (0.535″-40) or SM1 (1.035″-40) threads. It facilitates alignment between the laser diode and the optical ax

is of the lens sleeve, enabling assembly of SM-threaded components. The diode can be fixed with the supplied retaining ring.

The LD light source controller is an LD driver with flexible operation, wide compatibility with laser diode specifications, and high control precision. It integrates driving and control functions, and its output interface is compatible with 2-pin and 3-pin LD laser diodes—different light sources can be switched simply by replacing the laser diode. It supports a wide input voltage range of 12–24 V DC, with a maximum output current of 3 A. It is ideal for high-precision, stable applications requiring multiple light sources.

InterfaceSpecificationPin/DefinitionRemarks
12V DC ConnectorDC 12V–24VDC 5.5-2.1—
PWM Input ConnectorMax: 6V, Min: 2.8VFrequency: 0–5 kHzSMA ConnectorSMA center pin: PWM positive;outer thread: PWM negative
Output ConnectorMax: refer to model;Min: 0 mAFrequency: 0–5 kHzPin 1: LD+; Pin 2: LD-;Pin 3: PD/NCXH2.54-3P connector;pin order left to right
Mode SwitchContinuous Wave (CW) ModePulse Control (PULSE) Mode—Slide switch to labeled position
Current AdjustmentMax: refer to model;Min: 0 mA—Clockwise: increase output current;Counterclockwise: decrease output current;minimum output: 0
  1. Main Features of the Controller:
  • Adjust the frequency and brightness of LD laser diodes via an external PWM signal; frequency range 0–5 kHz, duty cycle range 0–100%.
  • Adjust light source brightness via external current adjustment.
  • The housing uses a large-volume aluminum heat sink, ensuring stable and reliable output current even at full power.



Parameter MinimumRecommendedMaximum
Input Voltage—6V12V24V
Input Current—1.2A1.5A3A
PWM SignalVH2.8V5V6V
 VL0V0V0.7V
Output Current—0A—Model-specific rating

Accessories

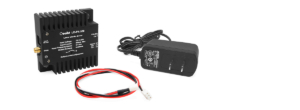

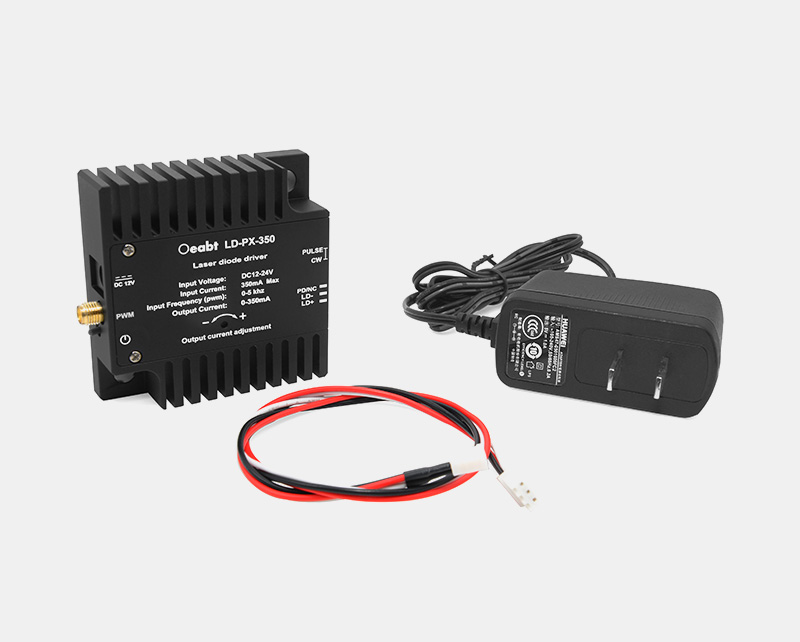

LD light source controller, connecting cable, 12V power supply

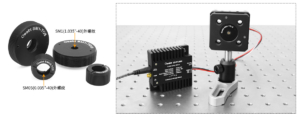

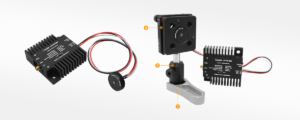

Assembly

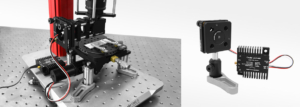

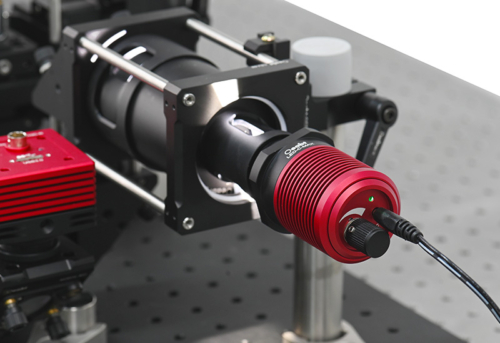

Application Examples

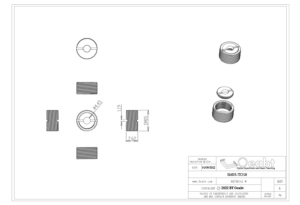

Engineering Drawings

LED-P Engineering Drawing
