Description
Product Description

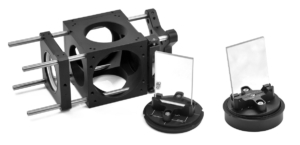

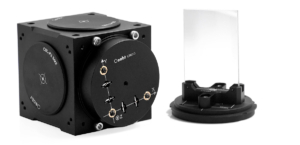

- Can be mounted on the top or bottom of the CSL60-M2 60mm cage cube to provide rotational positioning.

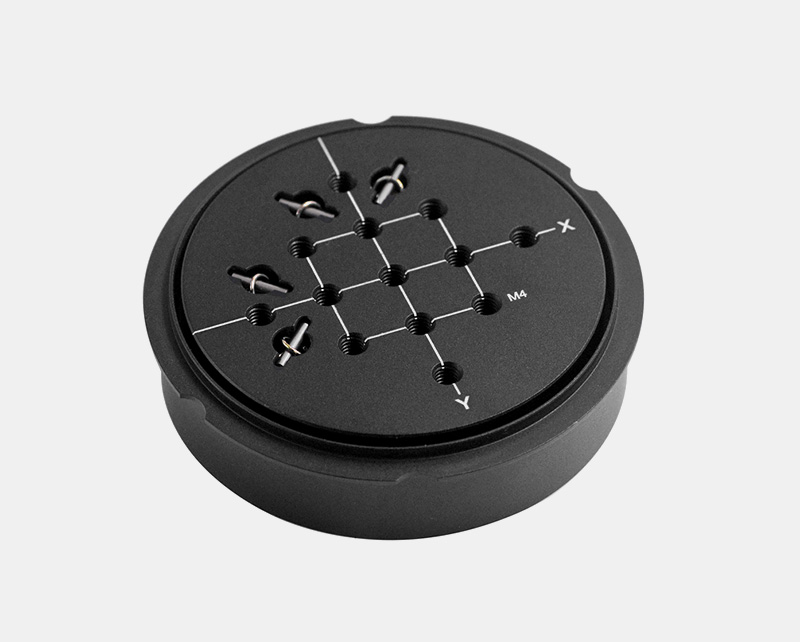

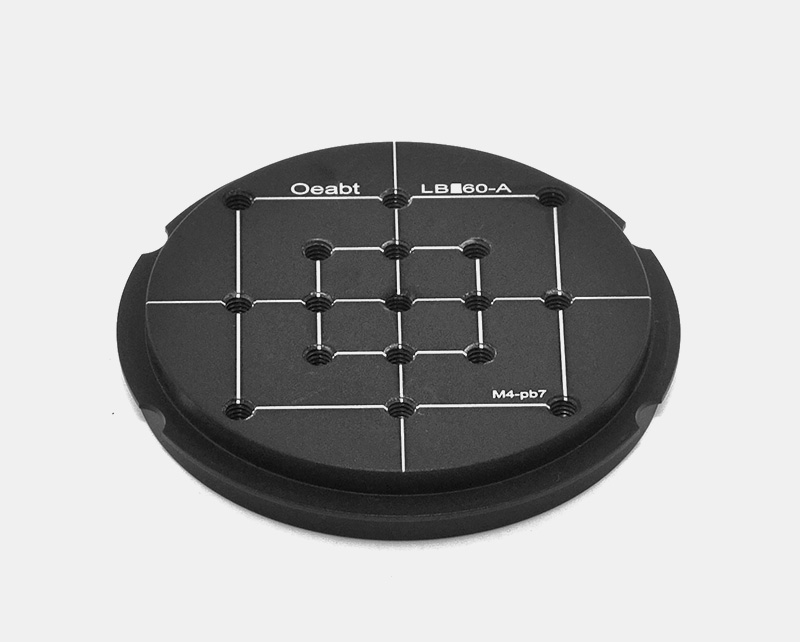

- The LB60-A stage features 17 M4 screw holes, and the LB60-C has 8 M4 screw holes, both usable for installing optical component mounts.
- In addition to manual rotational positioning, the LB60-C is equipped with three adjusters for pitch, yaw, and Z-axis movement.

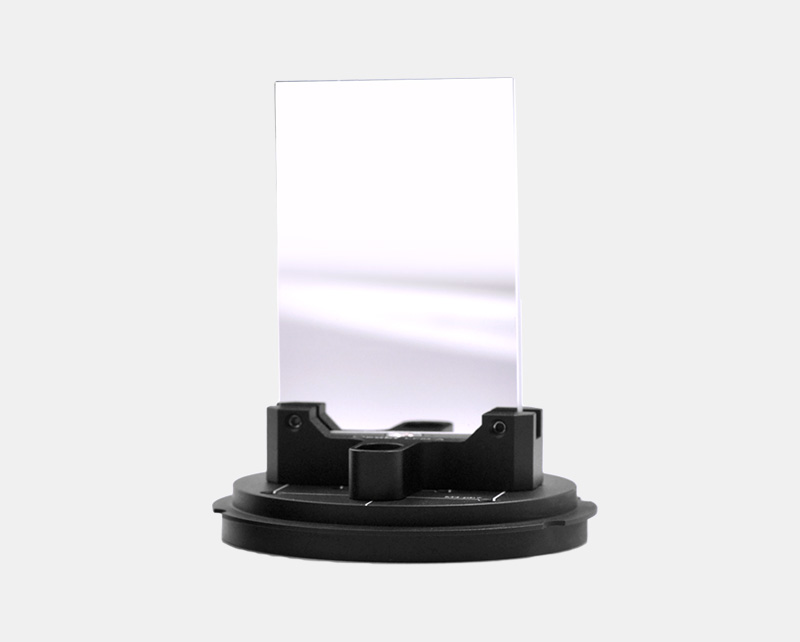

- Suitable for mounting square or circular optical components such as beam splitters, prisms (e.g., beam splitters), and dichroic lenses.
- The M4 screw hole at the bottom allows installation onto Ø12mm stainless steel rods for free-space setups.
They can be mounted on the top or bottom of our 60mm cage cube. The openings in the stages enable them to be fixed to the cube via M4 screws. The LB60-A stage has 17 M4 screw holes, and the LB60-C has 8 M4 screw holes, which can be used to install optical component mounts. These screw holes can be paired with our LFM-A filter adjustment mounts or PRK3-A30 pressure arms to clamp items such as prisms.
Technical Description

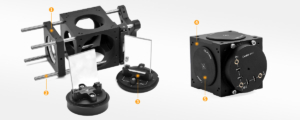

- Can be mounted on the top or bottom of our 60mm cage cube. The openings in the stages enable them to be fixed to the cube via M4 cap screws.
- The LB60-A stage is fixed and only provides rotational positioning. In addition to manual rotational positioning, the LB60-C is equipped with three adjusters for pitch, yaw, and 2mm Z-axis movement. The adjustment functions of the LB60-C are enabled by three 2mm hex adjustment screws.

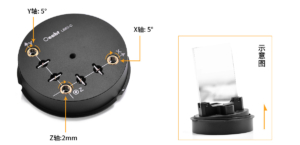

The adjustable range is ±5° for both X and Y axes, and 2mm for Z-axis height. When the Z-axis is used as a support point, if you need to adjust the X/Y axis tilt after adjusting the Z-axis, you must first lower the Z-axis height before adjusting the X/Y axes.
- The LB60-A stage has 17 M4 screw holes, and the LB60-C has 8 M4 screw holes, which can be used to install optical component mounts. These screw holes can be paired with our LFM-A filter adjustment mounts or PRK3-A30 pressure arms to clamp items such as prisms.

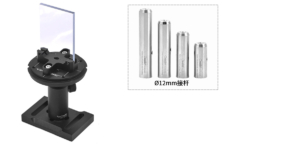

- Each stage is equipped with one M4 screw hole on the bottom, allowing installation onto Ø12mm rods for free-space setups.
Assembly
Application Example

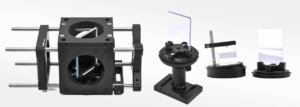

These 60mm cage cube accessories are used with cage cubes to build cage systems, allowing users to install their own optical devices according to the needs of the intended application.
