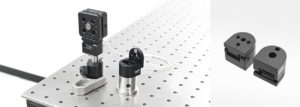

FM90-L Compact Flip Platform

Description

Product Description

• Can be flipped 0° or 90° to move out of the optical path;
• Features M4 screw holes on the upper surface for mounting optomechanical components;
• Mounts to connecting rods via M6 counterbores;

By flipping the mounting base, the FM90-L can rotate the optical component mount 90° from its initial position, designed to change the installation position of optical components for removal from the optical path.

Technical Description

(1) By flipping the mounting base, the FM90-L can rotate the optical component mount 90° from its initial position, intended to alter the installation position of optical components for removal from the optical path. When needed, the adapter can return to its original position, allowing the mount to re-enter the optical path. Its design makes the platform highly suitable for scenarios requiring redirection of laser beams for diagnostics or beam sharing.

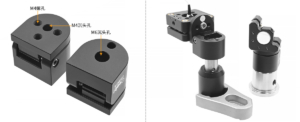

(2) The upper surface of the platform is equipped with 3 M4 screw holes and 1 M4 counterbore for mounting various optical mounts. The base plate also has a counterbore to attach the flip platform to the connecting rod via an M6 stud bolt.

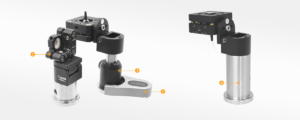

Assembly

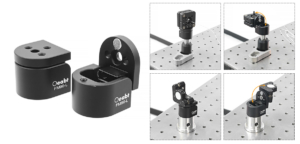

Application Examples

Engineering Drawings

FM90-L Engineering Drawing
