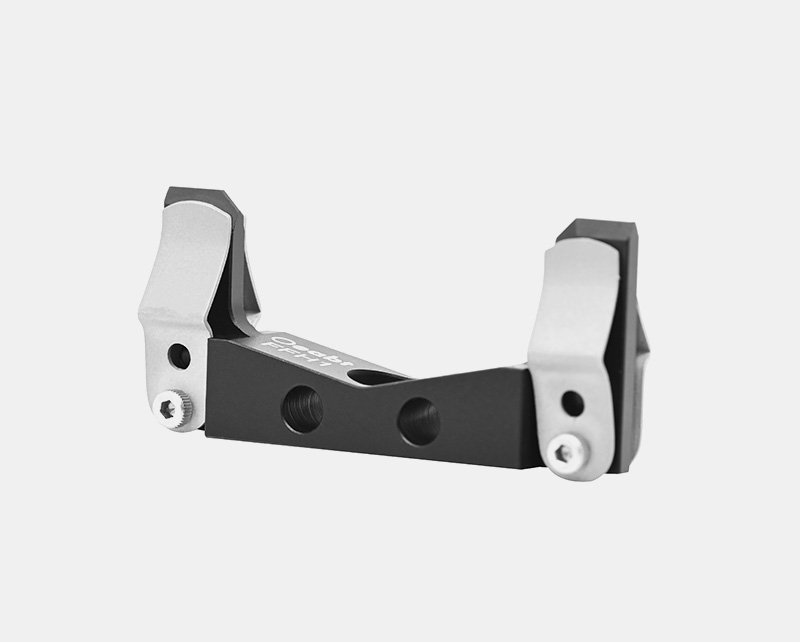

FFH1 Flat Plate Fixture Mount
FFH1 Flat Plate Fixture Mount
$19.80
Description
Product Description
- Can mount two flat plates, holographic plates, or test targets simultaneously.
- Maximum clamping thickness: 1mm (for 1 plate); 0.5mm per plate (for 2 plates).
- Can be directly mounted on Ø12mm rods via a Ø4.8mm counterbore.
- Multiple fixture mounts can be stacked through Ø4.5mm through holes to install multiple flat plates.
The fixture mount is suitable for clamping 1 or 2 rectangular flat plates. It can hold rectangular components with a width greater than 35mm, a maximum thickness of 1mm (for 1 plate), or 0.5mm per plate (for 2 plates).
| Model | FFH1 |
| Dimensions | 50.8*10.7*23.4mm |
| Clamping Thickness | Rectangular flat plates with width ＞35mm and maximum thickness 1mm |
| Thread/ Hole Type | 1 Ø4.8mm counterbore, 2 Ø4.5mm through holes |
| Weight | 12.4g |
| Material | 7075 aluminum alloy |
Technical Description
The fixture mount is suitable for clamping 1 or 2 rectangular flat plates. It can hold rectangular components with a width greater than 35mm, a maximum thickness of 1mm (for 1 plate), or 0.5mm per plate (for 2 plates). It is compatible with various holographic plates, test targets, or rectangular components (lens components are not recommended for clamping to avoid cracking and damage).

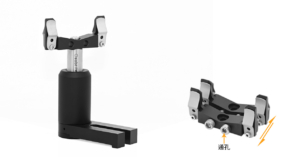

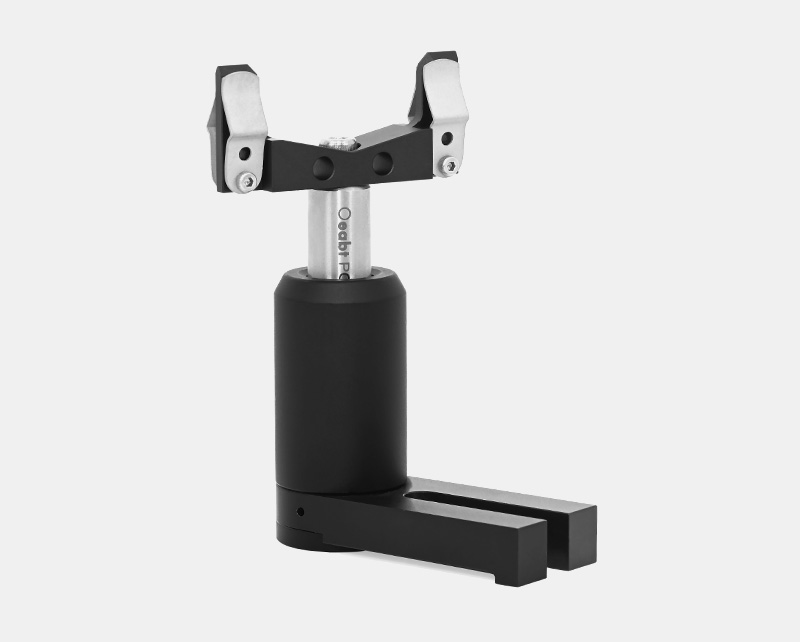

There is 1 Ø4.8mm counterbore at the center of the fixture, which can be mounted on Ø12mm rods via M4 cap screws. In addition, the side of the mount is equipped with 2 through holes, which can be used with M4 screws to stack multiple fixture mounts.

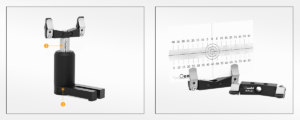

Assembly

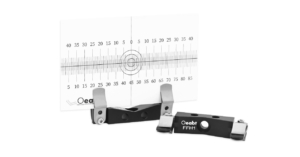

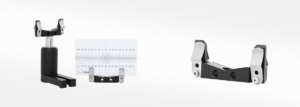

Application Example
Engineering Drawing Download
Additional information
| Weight | 0.0124 kg |
|---|---|
| Dimensions | 5.08 × 1.07 × 2.34 cm |
