Product Description Modular manual differential actuator Suitable for our Nano series flexible translation stages or linear translation stages Precision adjustment vernier knob with scale (50 divisions) Optional stroke range Brass component mountable to Ø9.5mm, M9.55 or
DRP Series Differential Precision Regulator
Price range: $163.80 through $185.60
Similar products
- DRL51 Series Differential Regulator
- SM Series Vernier Micrometer Head
- KCH-A Series Bus Communication and Power Hub
- PACS-2 Split-type Three-channel PZT Controller
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Modular manual differential actuator
- Suitable for our Nano series flexible translation stages or linear translation stages
- Precision adjustment vernier knob with scale (50 divisions)
- Optional stroke range
- Brass component mountable to Ø9.5mm, M9.55 or M141.0 mounting sleeves

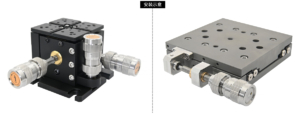

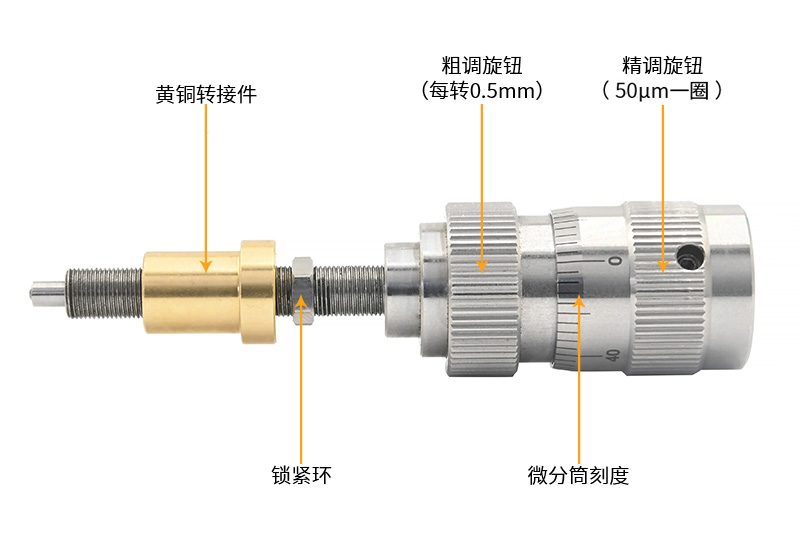

The DRP series regulators deliver high resolution and repeatability. The lever mechanism amplifies the resolution of the high-precision fine adjustment thread, resulting in a small axial displacement.
| Adjustment Screw | M6*0.5, coarse adjustment 0.5mm/rev | |||||||
| Fine Adjustment Stroke | 300μm, 50μm/rev | |||||||
| Stroke per Revolution | Coarse: 0.5mm/rev, Fine: 50μm/rev | |||||||
| Theoretical Accuracy | ＜1μm | |||||||
| Model | DRP31-A | DRP41-A | ||||||
| Specification | Ø20.0*72.8mm | Ø20.0*82.8mm | ||||||
| Coarse Adjustment Stroke | 8.8mm | 18.8mm | ||||||
| Brass Mounting Diameter | Ø9.5mm | Ø9.5mm | ||||||
| Weight | 87.8g | 88.2g | ||||||
| Model | DRP31-B | DRP41-B | ||||||
| Specification | Ø20.0*72.8mm | Ø20.0*82.8mm | ||||||
| Coarse Adjustment Stroke | 7.8mm | 17.8mm | ||||||
| Brass Mounting Thread | M9.5*0.5 | M9.5*0.5 | ||||||
| Weight | 90.7g | 92.2g | ||||||
| Model | DRP18-C (without lock ring) | DRP31-C | DRP41-C | |||||
| Specification | Ø20*57.4mm | Ø20.0*72.8mm | Ø20.0*82.8mm | |||||
| Coarse Adjustment Stroke | 6.2mm | 16.8mm | 26.8mm | |||||
| Brass Mounting Thread | M14*1.0 | M14*1.0 | M14*1.0 | |||||
| Weight | 85.8g | 88.5g | 90.0g | |||||

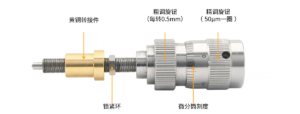

Technical Description
(1) The DRP series regulators offer high resolution and repeatability. The lever mechanism magnifies the resolution of the high-precision fine adjustment thread to achieve minimal axial displacement. This unique design ensures uniform and smooth movement, which is largely independent of load.
(2) Two knobs are provided for coarse and fine adjustment respectively. The coarse adjustment provides an accuracy of 0.5mm per revolution within the stroke range, while the fine adjustment has a stroke of 300µm with a nominal 50µm per revolution. The modular brass adapter can be connected to mounting holes with Ø9.5mm, M9.50.5 or M141.0 specifications.

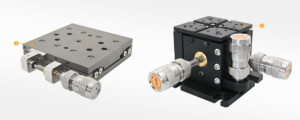

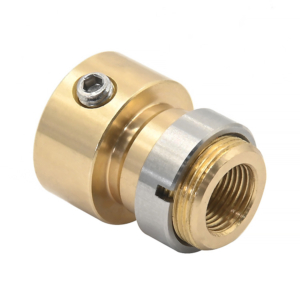

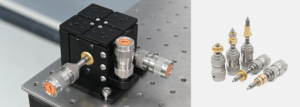

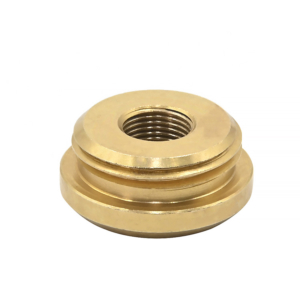

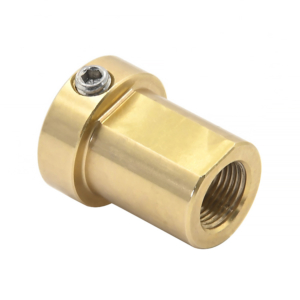

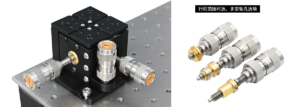

| Brass Adapter | DRP-A Type | DRP-B Type | DRP-C Type |
| Product Image |  |  |  |
| Brass Dimension | Ø12*15mm | Ø12.9*16mm | Ø15.8*7mm |
| Mounting Specification | Ø9.5mm | M9.5*0.5 | M14*1.0 |
