Description
Product Description
- Quick-release cage plate, one-handed operation for fast assembly, disassembly and positioning of optical components;
- Dovetail clamp design provides smooth disassembly and clamping;
- SM05 (0535”-40) internal thread;
- Can mount optical components with Ø12.7mm and maximum thickness of 5.8mm;
- Compatible with 16mm cage systems;

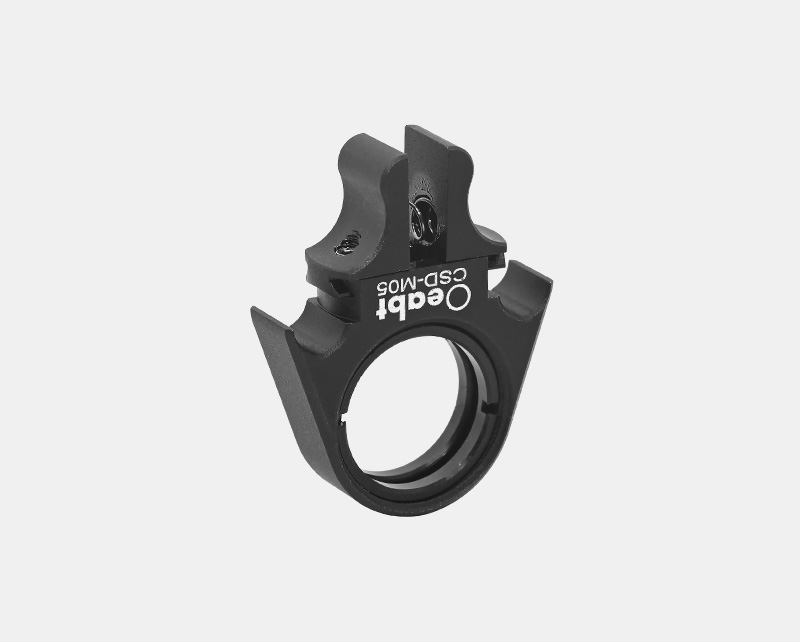

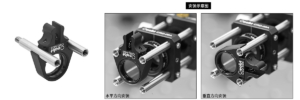

The CSD-M05 is a snap-in cage plate with a spring-loaded dovetail design, suitable for quick positioning of cage rods. Its drive lever design allows the dovetails to be squeezed together with a simple press, enabling the mount to be quickly repositioned or completely removed from the cage assembly. This one-handed operation mechanism is very convenient, eliminating the need for additional tools to activate the locking mechanism.
| Model | CSD-M05 |
| Specification | 26.5*21.1*6.4mm |
| Thread Hole Type | SM05 (0.535”-40) internal thread |
| Weight | 2.8g |
| Material | Aluminum alloy |
Technical Description

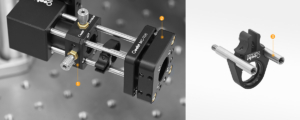

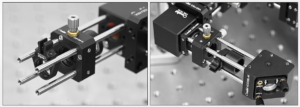

(1) The CSD-M05 is a snap-in cage plate with a spring-loaded dovetail design, suitable for quick positioning of cage rods. Its drive lever design allows the dovetails to be squeezed together with a simple press, enabling the mount to be quickly repositioned or completely removed from the cage assembly. This one-handed operation mechanism is very convenient, eliminating the need for additional tools to activate the locking mechanism.

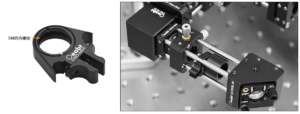

(2) The central aperture of the mount features SM05 (0.535”-40) internal thread, which can directly mount optical components with Ø12.7mm and maximum thickness not exceeding 2.5mm, secured by the included CSK4 retaining ring. It is also compatible with SM05 series lens sleeves.
