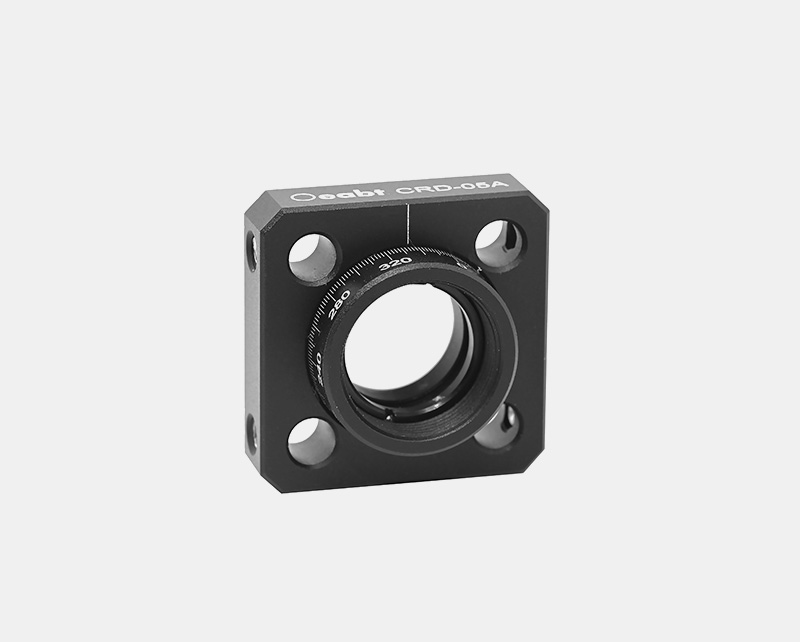

CRD-05A 16mm Rotation Mount

Description

Product Description

SM05 (0.535”-40) internal thread.

Can mount optical components with Ø12.7mm and maximum thickness of 6mm.

360° continuous rotation with 2° indexing on the dial.

Compatible with 16mm cage systems and SM05 series lens sleeves.

Includes 1 CSK05 retaining ring.

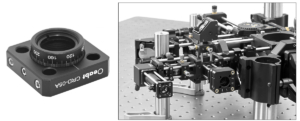

The rotation mount offers 360° continuous rotation with 2° indexing on the dial. A laser-etched alignment line at the center of the mount assists with reading. Users can rotate and install optical components according to actual needs, and lock the rotation mount by tightening the side set screw with a 1.3mm hex wrench.

Technical Description

The rotation mount offers 360° continuous rotation with 2° indexing on the dial. A laser-etched alignment line at the center of the mount assists with reading. Users can rotate and install optical components according to actual needs, and lock the rotation mount by tightening the side set screw with a 1.3mm hex wrench.

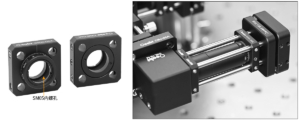

The mount is equipped with an SM05 (0.535”-40) internal thread and includes 1 CSK05 retaining ring for installing and fixing optical components. Its design allows mounting Ø1/2-inch optical components with a maximum thickness of 6mm in our 16mm cage system. For thicker optical components, users can install an SM05 series lens sleeve at the front end of the mount.

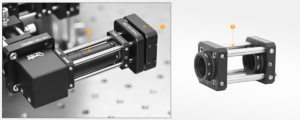

SPCM series Ø4mm cage rods can be inserted into the through holes of the mount for integration into 16mm cage systems. Use a 1.5mm wrench to tighten the side set screws to fix the position of the cage rods on the mount.

Assembly

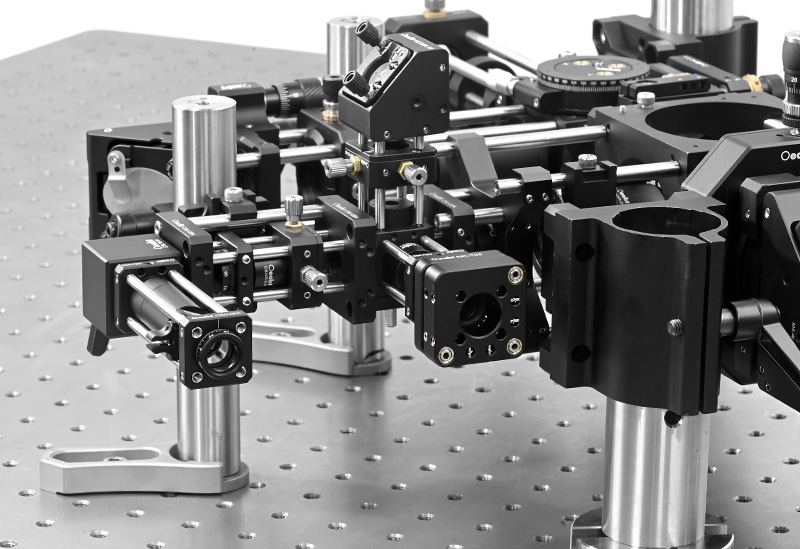

Application Example

Engineering Drawing Download

CRD-05A-Engineering Drawing
