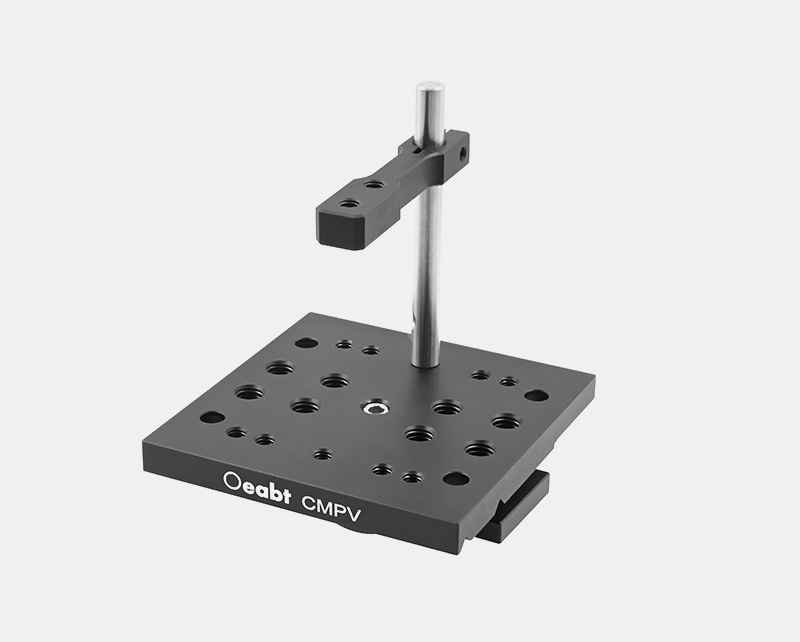

CMPV-K1 Cage Assembly Platform
CMPV-K1 Cage Assembly Platform
Price range: $6.60 through $44.40
Description
Product Description
• Optical component mount compatible with 30 mm and 60 mm cage systems;
• Clamping force provided by clamping arms, capable of holding optical components with height ≤ 53 mm;
• Tabletop featuring multi-threaded hole arrays of M4/M6;
• Knob at the bottom for platform position locking;

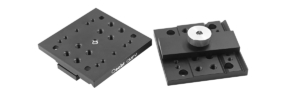

The CMPV platform is equipped with universal arrays of M4, M6, and countersunk M4 holes. The bottom surface of the mounting plate is designed with two V-grooves, ensuring compatibility with 30/60 mm cage systems. The base plate can be locked onto the cage rods via a hand-tightened knob to fix its position.
| Model | CMPV-K1 |
|---|---|
| Combination | CMPV Assembly Platform & PRK1-A Clamping Arm |
| Clamping Height | ≤ 53 mm |
| Model | CMPV Cage Assembly Platform |
|---|---|
| Dimensions | 66.8 × 67.3 × 23.6 mm |
| Tabletop Size | 66.8 × 67.3 mm |
| Threaded Hole Type | 10 × M4, 4 × M4 (countersunk), 8 × M6 |
| Weight | 107.7 g |
| Model | PRK1-A Ø6 mm Clamping Arm |
|---|---|
| Post Height | 60.0 mm |
| Clamping Height | ≤ 53 mm |
| Thread Type | M4 |
| Weight | 20.0 g |
(1) The CMPV platform features universal arrays of M4, M6, and countersunk M4 holes. The bottom surface of the mounting plate is equipped with two V-grooves, making it compatible with 30/60 mm cage systems. The base plate is locked onto the cage rods via a hand-tightened knob to secure its position. Optical components are fixed to the platform using nylon-tipped set screws with a 2.0 mm hex drive on the clamping arms.
(2) The PRK1-A clamping arm is fixed to the post using a flexible mechanism and locked with a 2.5 mm hex wrench. When used independently, the PRK1-A can hold optical components up to 53 mm in height. The distance between the center of the post and the first center of the nylon-tipped set screw is 25 mm, and the distance to the second center is 35.5 mm.
- Assembly

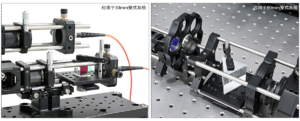

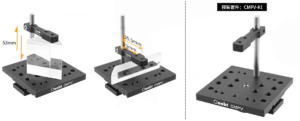

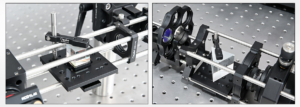

- Application Examples

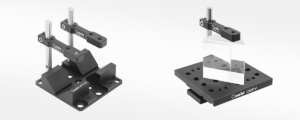

- Engineering Drawing
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | CMPV-K1, PRK1-A, CMPV |
