Description
Product Description
- C-Mount (1.00″-32) thread adapter;
- Used in combination to realize conversion and connection between cameras, lenses, and SM1/SM2 sleeve threads;
- Compatible with various camera lenses, sleeves, lens hoods, and extension lenses;
The lens thread adapter, also known as a C-mount adapter, is used by attaching the corresponding SLR mount to the camera, then connecting an extension tube to link the camera with lenses, sleeves, lens hoods, and extension lenses.

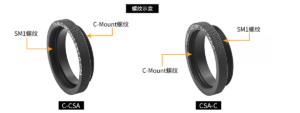

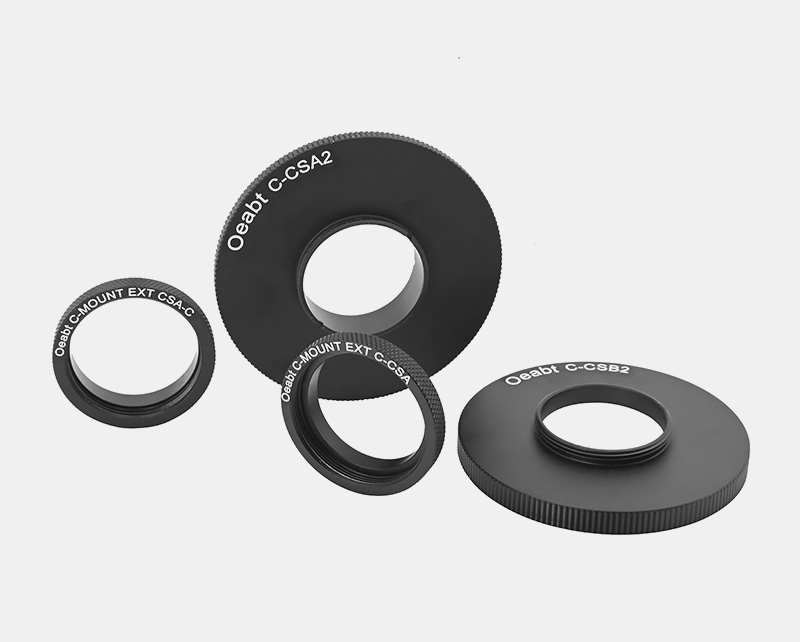

| Model | Specifications | Thread Type | Weight |
| C-CSA | Ø30.6*7.9mm | [External] C-Mount (1.00″-32) to [Internal] SM1 (1.035″-40) | 2.9g |

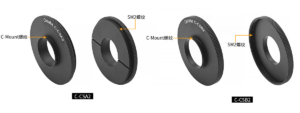

| C-CSA2 | Ø30.6*7.2mm | [External] C-Mount (1.00″-32) to [External] SM2 (2.035″-40) | 2.9g |
| C-CSB2 | Ø55.9*9.3mm | [External] C-Mount (1.00″-32) to [Internal] SM2 (1.035″-40) | 30.6g |
| CSA-C | Ø53.9*7.9mm | [External] SM1 (1.035″-40) to [Internal] C-Mount (1.00″-32) | 7.1g |
Technical Description
(1) Compatible with CCD camera lenses; adaptable for various lenses, sleeves, lens hoods, and extension lenses;
(2)

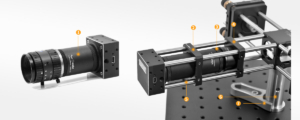

(3) Application combinations:
- Camera lens extension tube: [Camera + C-CSA] + Male-to-Female Sleeve + [CSA-C + Lens];

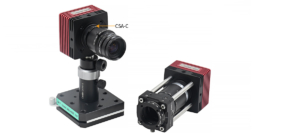

- Camera lens: Oscam series camera + [CSA-C] + Lens
- Camera used in cage systems: [Camera + C-CSA] connected to cage systems;
- Camera lens used in cage systems: [Camera Lens + CSA-C] connected to cage systems;

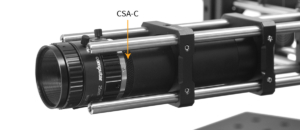

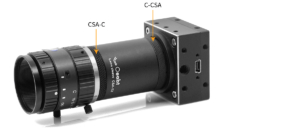

Assembly

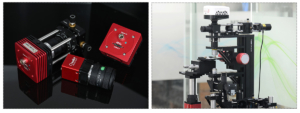

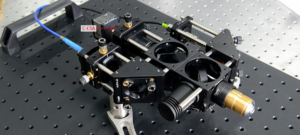

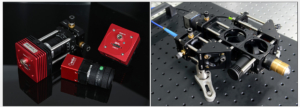

Application Examples
