Description
Product Description

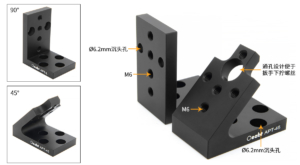

- Angled mounting plate with 45° or 90° inclined surfaces featuring mounting holes;
- Triangular cross-sectional design enables stronger and more stable assembly;
- Angle tolerance of ±30 arcminutes;
- Flatness of 0.05mm;
- Suitable for constructing three-axis translation stage accessories;

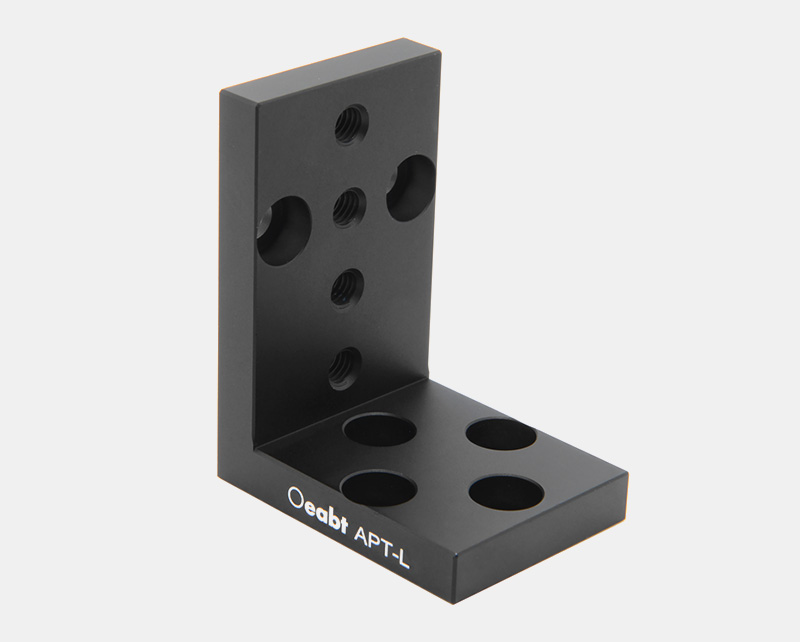

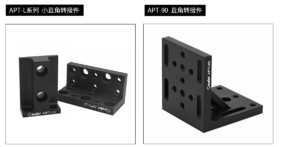

The angle mounting brackets are an ideal solution for building stable three-dimensional optical-mechanical assembly structures. They feature an integrated aluminum structure with 45° or 90° mounting hole planes.
| Model | APT-L | APT-45 |
| Specification | 48.0*36.0*60.0mm | 60.0*36.0*53.0mm |
| Angle Bracket | 90° | 45° |
| Mounting Surface | 60.0*36.0mm | 57.0*36.0mm |
| Thread Type | 4 positions of M6 threaded holes, 6 positions of Ø6.2mm countersunk holes | 5 positions of M6 threaded holes, 4 positions of Ø6.2mm countersunk holes |
| Weight | 66.6g | 74.7g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Description
（1）The angle mounting brackets are an ideal solution for constructing stable three-dimensional optical-mechanical assembly structures. With an integrated aluminum structure, they are equipped with 45° or 90° mounting hole planes. The M6 holes on the surface can be combined with each other to provide stable compound angle support, enabling the construction of a high platform with excellent rigidity for coarse adjustment.
(2) The angles on these high-rigidity brackets are precise with an angle tolerance of ±30 arcminutes, suitable for building long-stroke three-axis linear translation stage sets using manual translation stages, or for the precise installation of small optical breadboards and components.

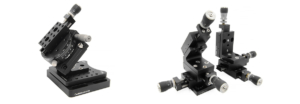

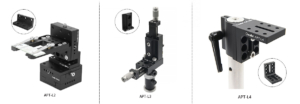

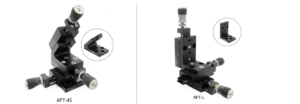

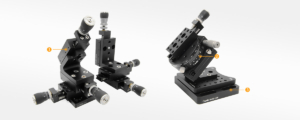

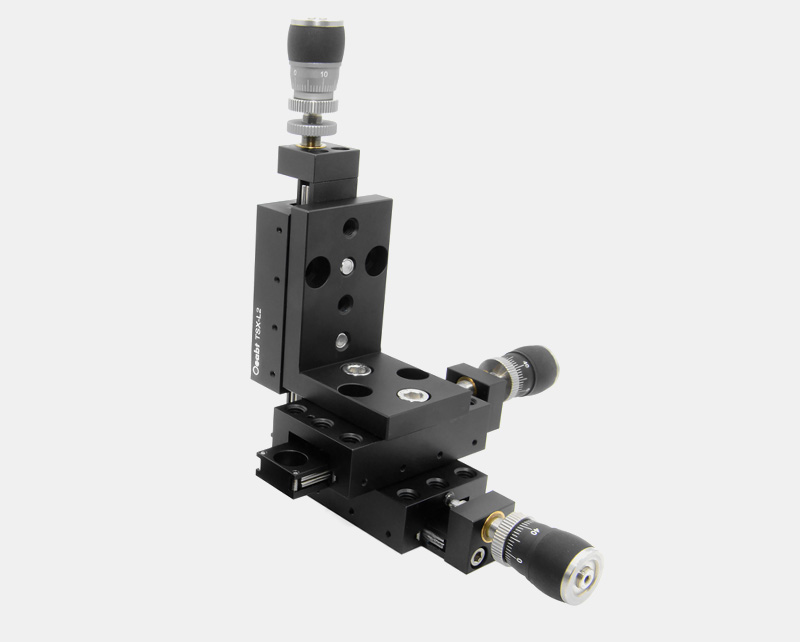

Assembly

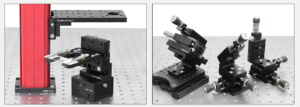

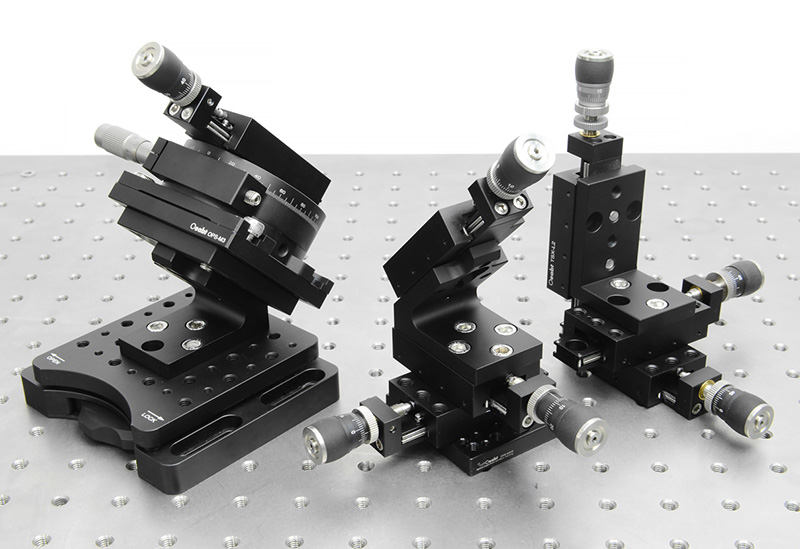

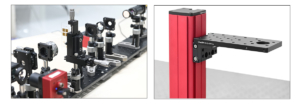

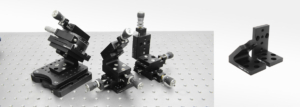

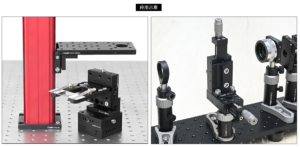

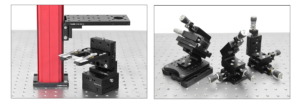

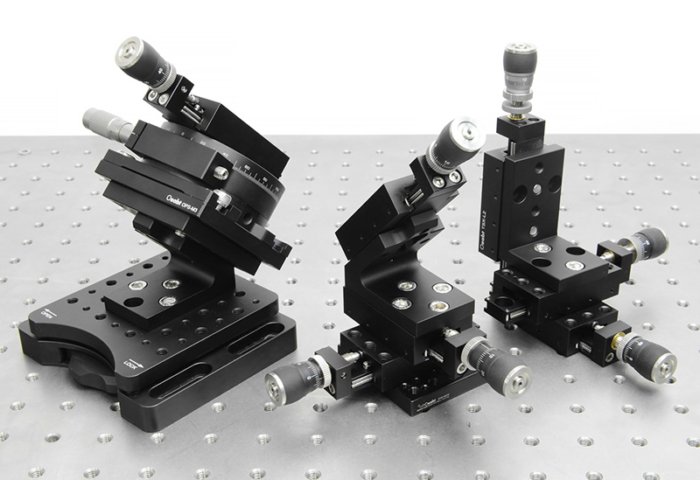

Application Examples

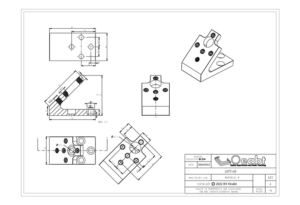

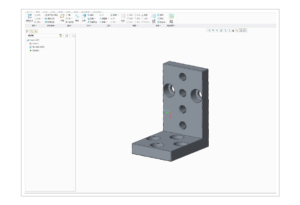

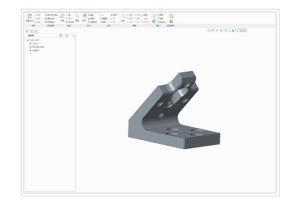

Engineering Drawing
