Description
Product Description
- Wavelength range from 365 nm to 1045 nm; white LED options are also available
- Constant-current drive, brightness adjustable via external knob
- Soft light, long service life, high stability; suitable for microscopes and machine vision
- Brightness adjustment range: 0–100%
- Equipped with threaded interface for mounting with sleeves
- Optimized thermal performance for stable power output
- Light source power is customizable, max. 3.6 W; contact customer service for details
The LED-C series compact light source is easy to use and ideal for microscopy and machine vision. It features a 5 mm deep SM1 (1.035”-40) external thread for easy integration into cage systems or lens sleeves. It can also serve as a transmitted illumination source for microscopes in digital imaging systems.
| LED-C Series LED Experimental Light Source | |
| Housing Dimensions | 42×57 mm (excluding knob) |
| Output Voltage | DC 12 V |
| Output Current | 1 A |
| Light Source Electrical Power | 3 W |
| Light Source Wavelength | Visible spectrum range |
| Light Source Package | 3535 |
| Adjustment Type | Stepless dimming (rotary knob controls on/off and brightness) |
| Operating Temperature | 0–60 ℃ |
| Weight | 134.5 g |
| Model | Output Wavelength Range |
| LED-C-372 | 352–392 nm |
| LED-C-386 | 366–406 nm |
| LED-C-401 | 381–421 nm |
| LED-C-415 | 395–435 nm |
| LED-C-450 | 430–470 nm |
| LED-C-471 | 451–491 nm |
| LED-C-483 | 463–503 nm |
| LED-C-505 | 485–525 nm |
| LED-C-524 | 504–544 nm |
| LED-C-565 | 545–585 nm |
| LED-C-598 | 578–618 nm |
| LED-C-620 | 595–645 nm |
| LED-C-643 | 618–668 nm |
| LED-C-660 | 635–685 nm |
| LED-C-862 | 842–882 nm |
| LED-C-940 | 920–960 nm |
| LED-C-980 | 960–1000 nm |
| LED-C-1045 | 1025–1065 nm |
| LED-C-4KMAX | White 4000–4500 K |
| LED-C-6KMAX | White 6000–6500 K |
Curves
LED-C-660 LED-C-642 LED-C-620 LED-C-598 LED-C-565 LED-C-505 LED-C-482 LED-C-470 LED-C-450 LED-C-415 LED-C-400 LED-C-386 LED-C-372 LED-C-324 LED 862 LED 6K LED 4K
Technical Description
The LED-C series compact light source is user-friendly and well-suited for microscopes and machine vision. It has a 5 mm deep SM1 (1.035”-40) external thread for easy integration into cage systems or lens sleeves, and can be used as transmitted illumination for digital microscopy imaging systems.

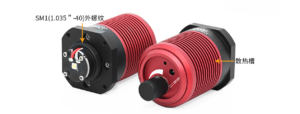

These pre-assembled LEDs offer excellent thermal stability, preventing light output power drop caused by LED heating. The housing features strip-shaped heat dissipation grooves, improving cooling by 10%–15% for faster heat reduction. They deliver high reliability, stability, anti-interference performance, uniformity, and long service life.
Electrical Characteristics (Ta=25℃)
| Parameter | Min. | Recommended | Max. |
| Input Voltage | 6 V | 12 V | 24 V |
| Input Current | 1 A | 1 A | 2 A |
| Output Power | 0 W | / | Modelspecific rating |

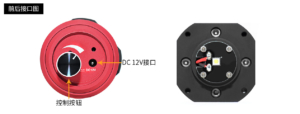

| Interface | Specification | Pin/Definition | Notes |
| DC 12 V | DC 12 V–24 V | DC-002 (3.5–1.1 mm) | / |
| Rotary Knob | Potentiometer with switch | / | Combined on/off & brightness control. Clockwise: brighter; Counterclockwise: dimmer |
Operation Instructions: Connect a 12 V 1 A power supply to the DC 12 V port. The rotary knob controls power on/off and brightness level.

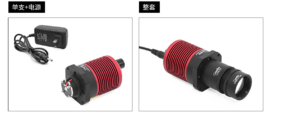

In addition to single LED light sources (including power supply), pre-assembled kits are available as shown below.
Complete Kit Includes: Single LED light source + power adapter + CSB-24 lens sleeve + CSM1-T26 adjustable sleeve + OLB-I1-30PM plano-convex lens (f:30 mm).(Lenses of other focal lengths can be exchanged for an extra fee depending on working distance; contact customer service.)
The LED light source covers an output wavelength range of 372 nm–1045 nm; custom wavelengths and power levels are available.

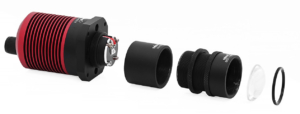

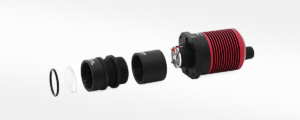

Assembly

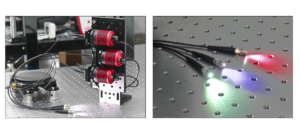

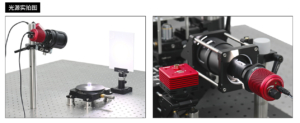

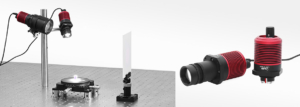

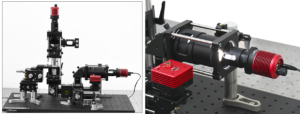

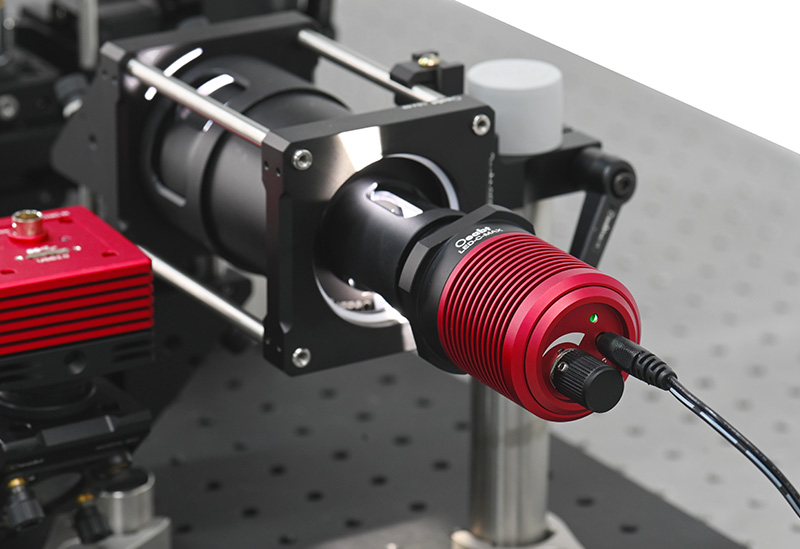

Application Examples
Engineering Drawings
