Description
Product Description
- Z-axis height adjustment range: 25mm, table height adjustable from 21.3mm to 46.8mm
- Mounting table size: 101.6×76.2mm
- Vertical load capacity: 55.1lbs (25 kg)
- Multiple specifications of threaded holes and mounting slots on the top and bottom
The Z-axis scissor lift stage is ideally suited for mounting opto-mechanical subassemblies requiring height adjustment. Its rigid scissor design ensures high stability and excellent parallelism.
| Part Number | TSX-Z25 |
| Mounting Table | 101.6×76.2mm |
| Table Height | 21.3mm–46.8mm |
| Adjustment Range | 25mm |
| Load Capacity | 55.1lbs (25 kg) |
| Weight | 425.2g |
| Material | 7075 Aluminum Alloy |
Technical Notes
The Z-axis scissor lift stage is specially designed for mounting opto-mechanical subassemblies with height adjustment requirements, featuring a rigid scissor structure with high stability and superior parallelism. The adjustment device drives vertical movement via a lead screw, with a lead of 0.8mm per revolution, providing a 25mm vertical height adjustment range and a vertical load capacity of up to 50lbs.

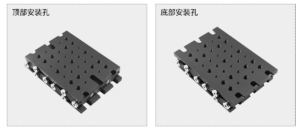

The mounting table measures 101.6×76.2mm. Both the top and bottom plates are configured with an array of threaded holes in various specifications and are equipped with mounting slots.
- Top plate mounting holes: 10×M3, 8×M4, 15×M6, 2×6.7×19.2mm slots
- Bottom plate mounting holes: 10×M3, 8×M4, 11×M6, 6×6.7×19.2mm slots

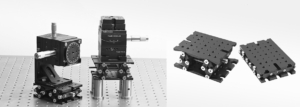

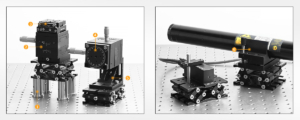

Assembly

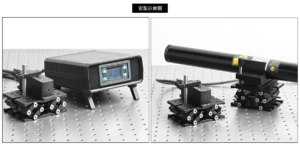

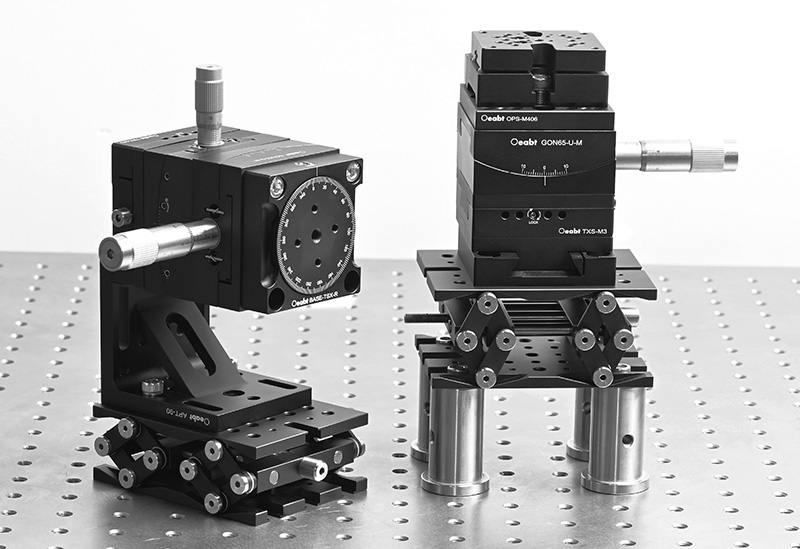

Application Examples
