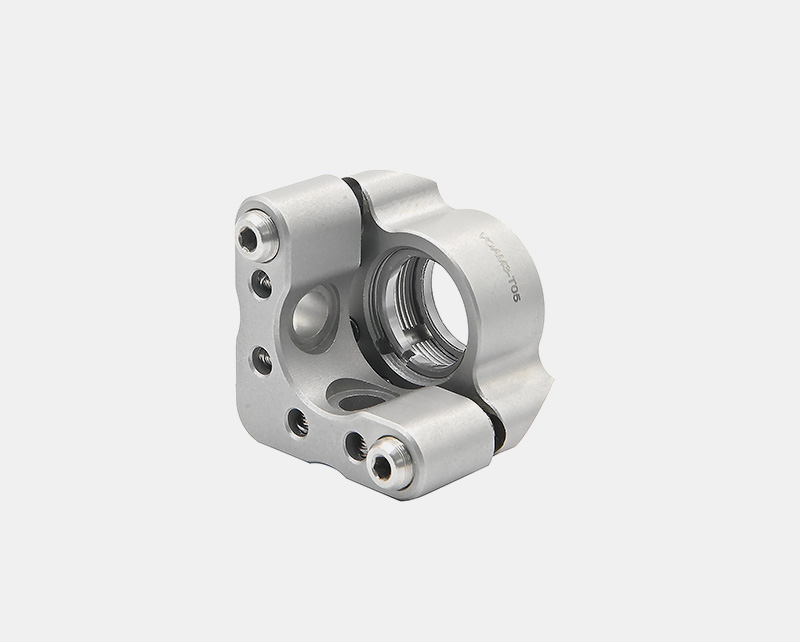

Description
Product Description
- Dual-axis adjustment mechanism; regulator: M5*0.25;
- ±5° angle adjustment with precision of 19.68 mrad/rev;
- Compatible with installation of Ø0.5-inch optical components; SM05 (0.535″ -40) internal threads for mounting optical components with thickness ≤6.25mm;
- M4 countersunk hole at the base for securing the adjustment frame to the connecting rod;
The low-drift adjustment frame is fabricated from heat-treated stainless steel, exhibiting superior durability and thermal performance compared to other optical adjustment frames.
| model | VOAM2-T05 |
| specifications | 25.4*25.4*21.6mm |
| adjustable range | ±5° angle adjustment with precision of 19.68 mrad/rev |
| Central aperture diameter | SM05 (0.535″ -40) internal thread |
| Lens installation | Ø0.5 inches, thickness ≤6.25 mm |
| weight | 32.5g |
| material quality | Heat Treatment of 304 Stainless Steel |
technical description
(1) The low-drift adjustment frame is fabricated from heat-treated stainless steel, exhibiting superior durability and thermal performance compared to other optical adjustment frames. It employs two M5*0.25 regulators, with high-resolution ±5° pitch adjustment achieved using a 2mm hex key.

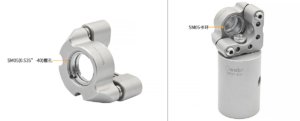

(2) The mounting bracket features SM05 (0.535″ -40) threaded holes with two SM05 retaining rings, designed for installing Ø12.7mm optical components or other SM05 threaded assemblies with a thickness ≤6.25mm.

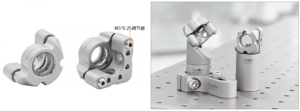

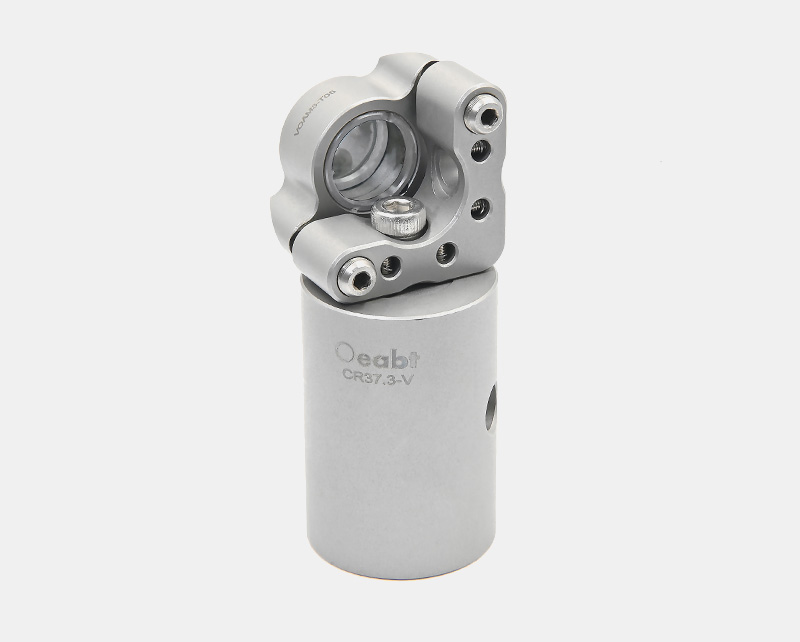

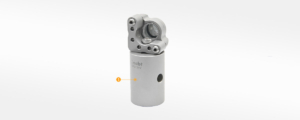

assemble

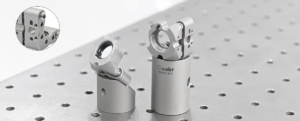

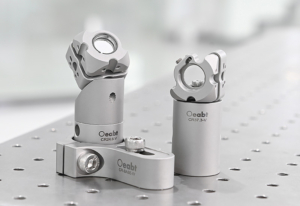

Application Examples
schedule drawing
