Description
Product Description
- Standard Adjustment Model: Provides ±10° pitch adjustment.
- Precision Adjustment Model: Equipped with M6*0.5 adjusters, offering ±2° pitch and yaw adjustment with locking function.
- Compatible with Ø25mm rods.
- Pressure arm installed in the middle position: Can clamp cylindrical components with diameters ranging from Ø0.8mm to Ø24.0mm.
- Pressure arm installed in the outer position: Can clamp cylindrical components with diameters ranging from Ø9.8mm to Ø30.3mm.
- Equipped with a quick-release handle for fast fixation to the rod.
The V-shaped fixture mount is installed on a Ø25mm rod via flexible clamping driven by a handle, providing pitch and yaw adjustment for clamping cylindrical components.
| Model | VCJP-A25 | VCJP-A25-P |
| Dimensions | 97.1*49.5*44.5mm | 114.0*50.8*53.8mm |
| Adjustment Range | ±10° pitch | ±2° pitch and yaw |
| Adjustment Precision | / | 6.81mrad/revolution |
| Thread Type | 2x M4 (platform); 3x M4 (bottom) | 2x M4 (platform) |
| Weight | 232.3g | 409.3g |
| Compatible Rod | Ø25mm |
| Pressure Arm Clamping | Middle position: Ø0.8-Ø24.0mm |
| Outer position: Ø9.8-Ø30.3mm | |
| Material | Aluminum alloy + Stainless steel |
| Model | PRK3-B |
| Dimensions | 29.2*36.5*10.2mm |
| Rod Specifications | Ø4.8*31.4mm |
| Thread Type | M4 threaded hole (top); M4 stud (bottom) |
| Weight | 7.4g |
| Material | Aluminum alloy + Stainless steel |
Technical Description

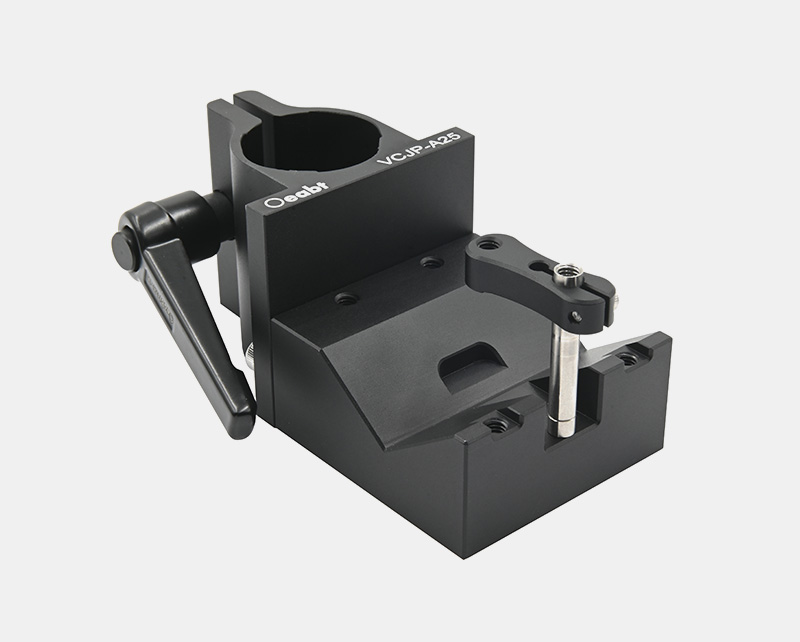

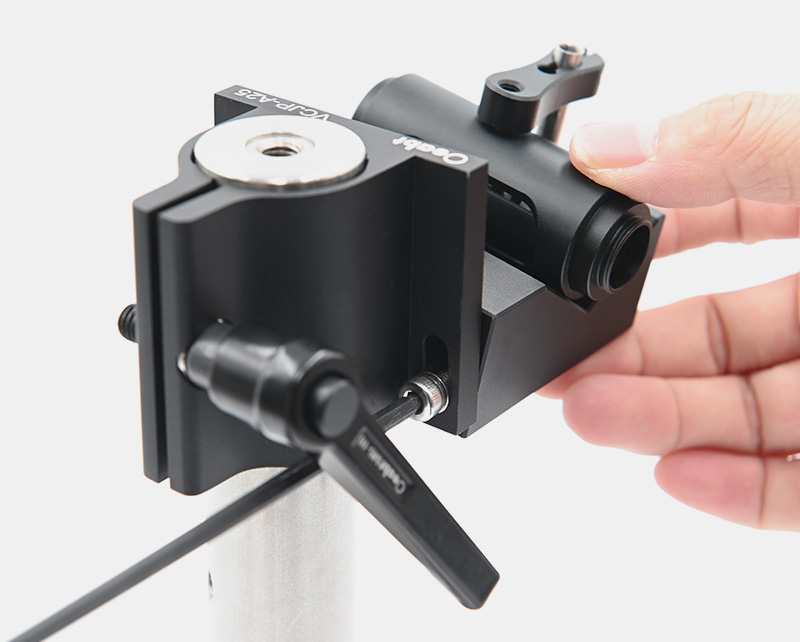

The VCJP-A25 mount offers ±10° coarse pitch adjustment, which can be operated by loosening the cap screws on the back. The VCJP-A25-P adjustment mount is equipped with two adjustment screws, providing ±2° pitch and yaw control with a precision of 6.81mrad/revolution.

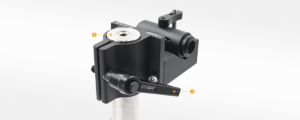

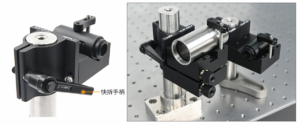

The included pressure arm can be installed in three M4 threaded holes on the outer edge. The middle mounting hole is located in a groove, allowing the mount to fix components with diameters of Ø0.8~24mm. The outer threaded holes in the V-shaped groove can clamp components with diameters of Ø9.8~Ø30.3mm. It includes a quick-release handle for fixing the fixture to the rod; the assembly can be engaged by simply rotating the handle. The internal mechanism is designed to adjust the rotation position of the handle without using bolts.

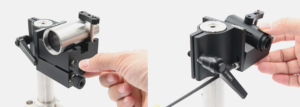

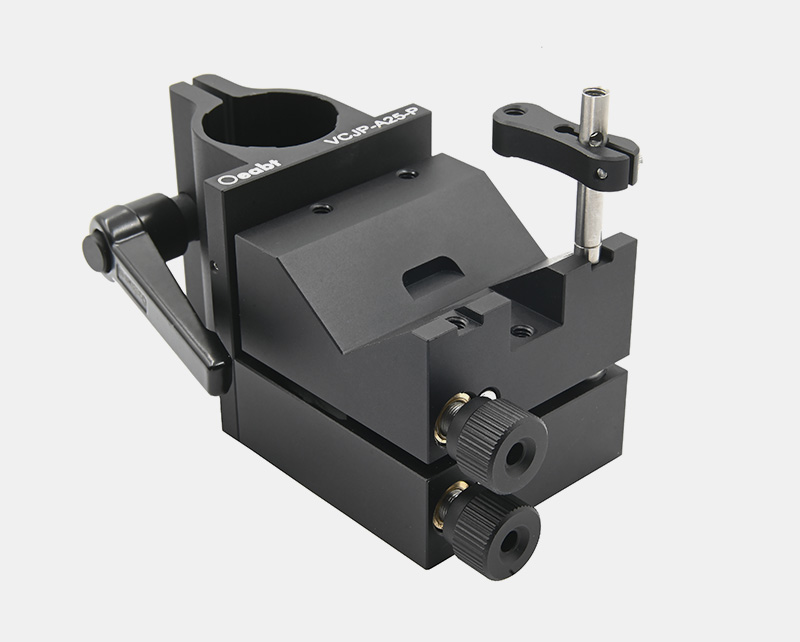

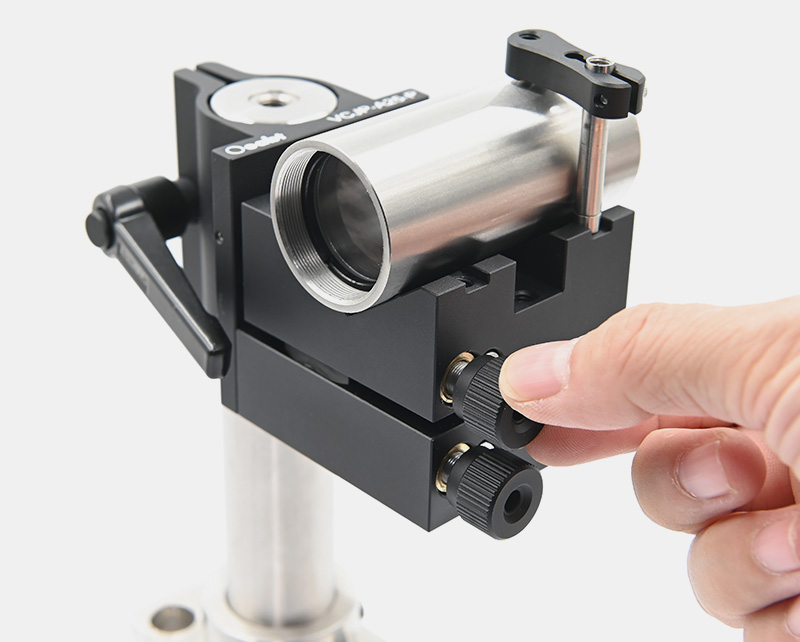

The VCJP-A25 allows ±10° coarse pitch adjustment by loosening the cap screws on the back; the VCJP-A25-P is equipped with M6*0.5 adjusters, offering ±2° pitch and yaw adjustment with a precision control of 6.81mrad/revolution.
The maximum vertical space under the pressure arm is 24.6mm, and the pressure arm can be purchased separately.

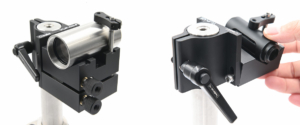

Assembly

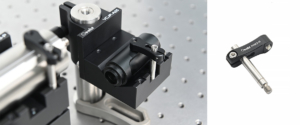

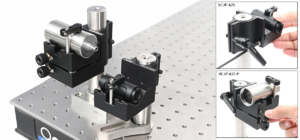

Application Example
Engineering Drawing Download
