Product Description
- 360° continuous rotation with a double stop pin design;
- The base is engraved with scale marks at 5° intervals, with numerical markings every 30°;
- Load capacity: 20kg for horizontal mounting, 1kg for vertical mounting;
- Multiple threaded holes on the stage for mounting purposes.
This rotation stage enables 360° continuous manual rotation. Its base is engraved with scale lines at 5° intervals and marked with numerical values every 30° for easy positioning.
| Model | R-TSX-B |
| Specification | 64.8*64.6*25.4mm |
| Adjustment Range | 360° rotation, 5° graduation |
| Load Capacity | 20kg (horizontal mounting); 1kg (vertical mounting) |
| Thread Type | 8×M4, 5×M6, 4×M6 (countersunk holes) |
| Weight | 159.5g |
| Material | 7075 aluminum alloy |
(1) The rotation stage features 360° continuous manual rotation, with its base engraved with scale marks at 5° intervals and numerical markings every 30° for precise positioning. Double-sided magnetic protrusions deliver a repeat positioning accuracy of less than 15 microarcseconds, and the stage is also equipped with two user-adjustable stop pins.

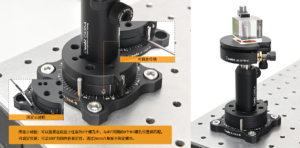

Fixed stop pin: Can be tightened into any of the 8 threaded holes on the base, matching the positions of the 8 M3 threaded holes spaced at 45° intervals.Adjustable positioning pin: Can be positioned arbitrarily within the 360° range and fixed with a screw using a 2mm hex wrench.

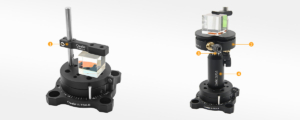

(2) The mounting stage is designed with a variety of threaded hole arrays, compatible with a wide range of optical and mechanical components, such as the PRK1-A pressure arm and CA-A series rod holders.
(3) The base is designed with a central countersunk hole, enabling stable connection with optical translation stages or breadboards. It can bear a load of 20kg when mounted horizontally and up to 1kg along the rotation axis when mounted vertically.
Assembly

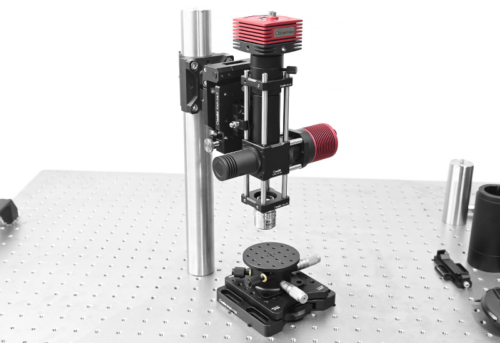

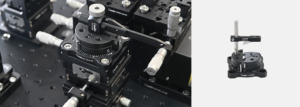

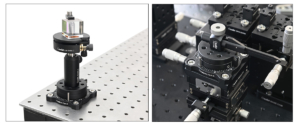

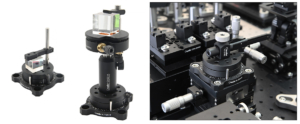

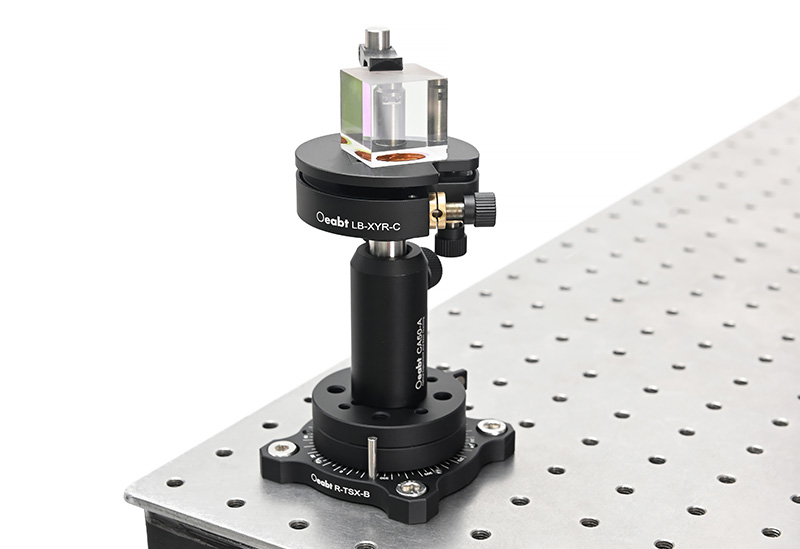

Application Examples

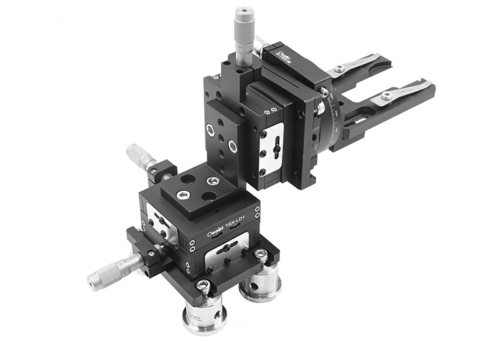

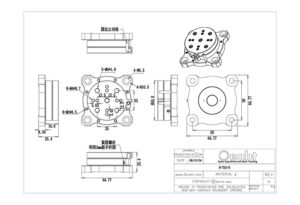

Engineering Drawings
