Product Description
- No returns or refundsunless due to product quality issues.
- Equipped with SONY IMX991/990 SenSWIR sensors.
- Optional resolutions: 0.34 MP or 1.34 MP.
- Spectral response: 400–1700 nm, supports visible and short-wave infrared (SWIR) imaging.
- Supports external trigger and continuous exposure modes with global shutter.
- SM1 (1.035″-40) thread with adapter for standard C-Mount (1.000″-32).
- 1/4″-20 (imperial) and M4 (metric) mounting holes for post mounting.
The OsCam Vision® series SWIR scientific camera features the SONY IMX991/990 SenSWIR sensor, with 0.34 MP and 1.34 MP options. It supports external trigger and continuous exposure modes and uses a global shutter.
| Item | MUS034M-G-SWIR | MUS134M-G-SWIR |
| Resolution | 656 (H) × 520 (V) | 1296 (H) × 1032 (V) |
| Sensor | Sony IMX991 | Sony IMX990 |
| Sensor Format | 1/4″ | 1/2″ |
| Max Full-Frame Rate | 137 fps (12-bit) | 70 fps (12-bit) |
| Interface | USB 3.1 Gen 1 Micro-B | USB 3.1 Gen 1 Micro-B |
| Sensor Type | InGaAs | InGaAs |
| Shutter Type | Global Exposure | Global Exposure |
| Pixel Size | 5 μm × 5 μm | 5 μm × 5 μm |
| Lens Mount | SM1 (1.035″-40 female thread) with C-Mount adapter | SM1 (1.035″-40 female thread) with C-Mount adapter |
| Spectral Response | 400 nm – 1700 nm | 400 nm – 1700 nm |
| ADC | 12 Bit | 12 Bit |
| Buffer (RAM) | 512 MB | 512 MB |
| Bit Depth | 8-bit, 12-bit | 8-bit, 12-bit |
| Mono Pixel Formats | Mono8, Mono12 | Mono8, Mono12 |
| GPIOs | 4-channel TTL I/Os | 4-channel TTL I/Os |
| Operating Temperature | 0 °C to +60 °C | 0 °C to +60 °C |
| Power Supply (DC) | 5V via USB 3.0 | 5V via USB 3.0 |

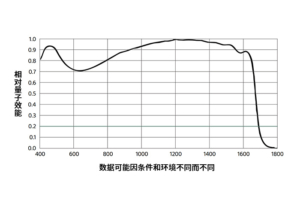

Curves
(Relative Quantum Efficiency: Data may vary by conditions and environment.)
Technical Notes

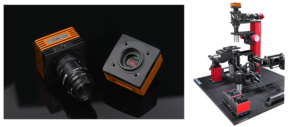

The OsCam Vision® series scientific cameras offer color, monochrome, and NIR-enhanced sensors with resolutions from 1.3 MP to 12 MP. They support external trigger and continuous exposure modes with global or high-speed rolling shutters, delivering sharp, detailed images with high color fidelity. A fanless cooling system uses passive heat dissipation via fins to avoid vibration-induced blur, control temperature rise, and suppress dark current and image noise.

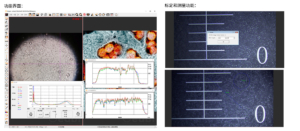

OsCam Vision® software supports Windows 7 through Windows 11, providing advanced scientific features including image capture & annotation, pixel analysis, calibration, and measurement. Click to download Oscam (V1.0.4 Beta) Setup installer and OsCam Scientific Camera Software User Manual.

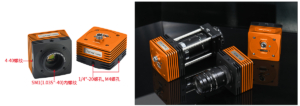

The camera uses an SM1 threaded interface (1.035″-40) compatible with Oeabt optomechanical components and can connect to lenses via a C-mount adapter. The front has four 4-40 holes for 30 mm and 60 mm cage systems. Each side of the housing has two 1/4″-20 and two M4 holes for stainless steel posts. These versatile mounting options make it ideal for custom imaging setups and integration with commercial microscopes.

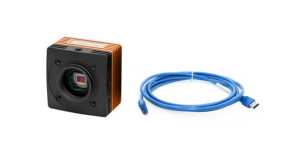

A high-speed USB 3.1 Gen 1 interface provides stable 3.2 Gbps throughput, multiple times faster than Gigabit Ethernet (1 Gbps). A 3meter dedicated fixed USB 3.0 cable is included.

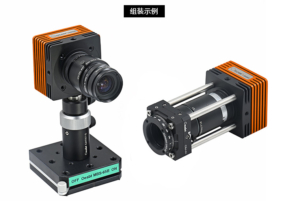

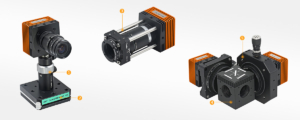

Assembly

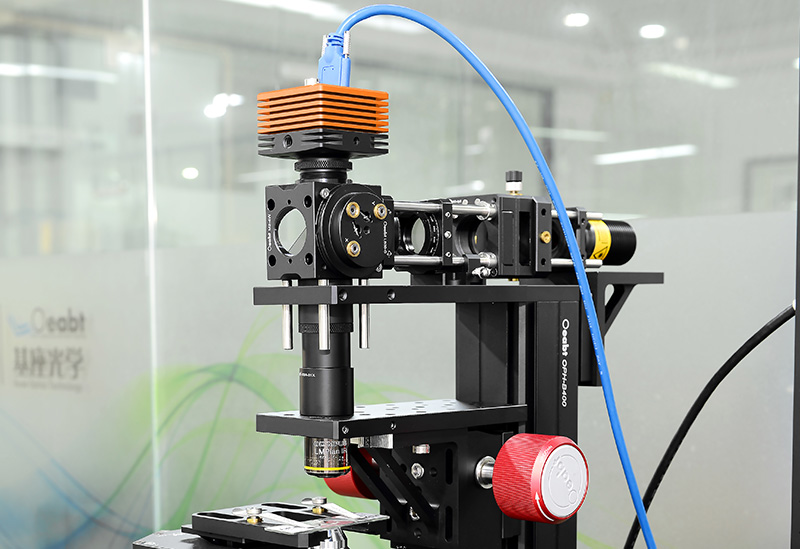

Application Examples
