Description
Product Description
- Large-area 1/1.8-inch CMOS sensor, resolution 1600 × 1200, effective pixels 1.92 MP
- Pixel size: 4.5 × 4.5 μm
- Plug-and-play USB3.0 interface; no extra acquisition card required
- Low power consumption, no external power supply needed
- Compatible with continuous and pulsed laser beam profile acquisition
- Pulsed acquisition can be triggered by external TTL asynchronous pulse signals
- Supports “Pass/Fail” (TTL pulse) output; alarms for beam deflection, distortion, defocus, etc., for on-line industrial monitoring
- High SNR of 1000:1, 10-bit AD conversion for rich detail capture
- Patented Oeabt® filter mount supports 1/10~1/100 and 1000× attenuation; beam splitters available for high-power lasers
- Works with Oeabt BeamTester™ software for full-featured beam quality analysis
Laser beam analysis complements power/energy measurements by providing spatial intensity distribution, beam width, centroid, ellipticity, and orientation. BeamTester™ uses a research-grade camera to capture beam profiles and compute over 20 quantitative parameters for accurate beam evaluation, with report generation.
Specifications
表格
| Item | Specification | Notes |
| Sensor Type | CMOS | |
| Sensor Resolution | 1600 × 1200 pixels | |
| Effective Sensor Area | 7.2 × 5.3 mm (1/1.8-inch) | |
| Spectral Range | 300–1100 nm | 400–1100 nm with attenuator |
| Attenuator | Low-distortion neutral density filter | Stackable, detachable |
| Attenuator Material | NG10 glass, OD=2.3 | |
| Interface | USB3.0 (backward compatible with USB2.0) | |
| Acquisition Mode | CW and pulsed laser | |
| Pulsed Trigger | TTL trigger input | |
| Max Trigger Frequency | 100 Hz | No adjacent pulse averaging |
| Real-Time Video Frame Rate | Up to 60 FPS | |
| Acquisition & Calculation Frame Rate | Up to 25 FPS | |
| CW Saturation @ 633 nm | 40 mW/cm² (attenuated); 16 μW/cm² (unattenuated) | |
| USB Connector | micro USB 3.1 Gen1 | |
| Digital I/O Connector | 6-pin aviation connector | |
| Dimensions | 50.0 × 50.0 × 44.6 mm | |
| Weight | 219.4 g |
Technical Notes

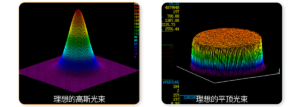

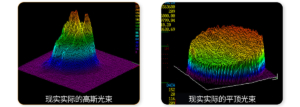

How to Evaluate Beam Quality
- BeamTester™ generates 2D/3D beam profiles with pseudo-color grading to visualize intensity distribution.
- Real-world Gaussian and flat-top beams are often uneven, tilted, or non-uniform.

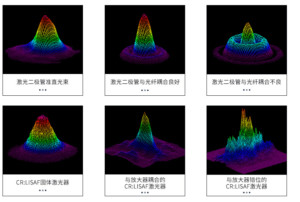

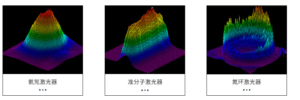

Laser Mode Diagrams
- The software clearly shows alignment between lasers and coupling components.
- Different laser types produce distinct profiles; elliptical fitting computes major/minor axes and ellipticity.
Defect Identification
Beams closer to ideal Gaussian or flat-top profiles have fewer defects.

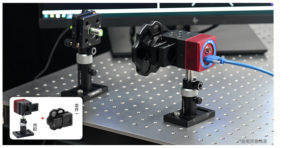

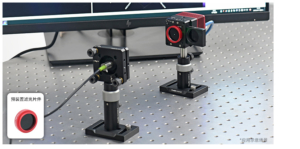

Optional Kits

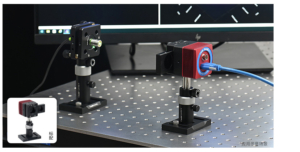

- Standard: Low-power (<100 mW)
-
- Direct-beam: Medium-power (<1 W)

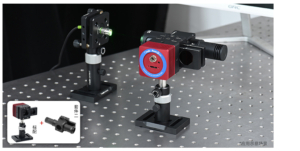

- Side-beam: High-power (10 W)
- Pre-mounted filter kit: Stackable filters for 85–90% peak saturation

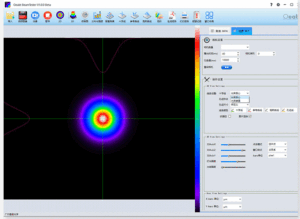

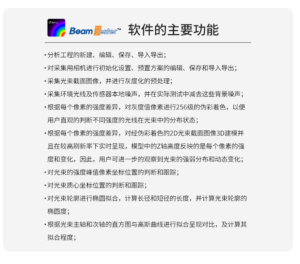

Software Interface
BeamTester™ supports:
- Project creation, editing, saving, import/export
- Camera initialization and preset management
- Beam profile capture and grayscale preprocessing
- Background noise subtraction
- 256-level pseudo-color mapping
- Real-time 3D intensity modeling
- Beam peak and centroid tracking
- Ellipticity fitting
- Gaussian curve fitting and ISO-compliant analysis

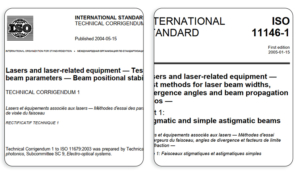

Compliance
Algorithms b
ased on ISO 11146 standards for laser beam testing.
Applications
- Medical & biological: Surgical precision & treatment efficacy
- Industrial manufacturing: Processing efficiency & accuracy
- Telecommunications: Transmission speed & reliability

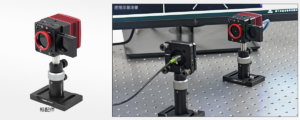

Assembly
Application Examples
Engineering Drawings
Additional information
| Model | BTC200, BTC200 Kit 1, BTC200 Kit 2, CSA-08T+AND-C1-001, CSA-08T+AND-C1-01, CSA-08T+AND-C1-1, CSA-08T+AND-C1-10, CSA-08T+AND-C1-20, CSA-08T+AND-C1-40, CSA-08T+AND-C1-60 |
|---|---|
| Optic Type |
