SM-SR1 1-Inch (Ø1″) Rotation Mount

描述

• Supports 1-inch (Ø1″) optical components up to 12.7mm thick.
• Rotates and aligns optical elements within the sleeve system, with an integrated SM1 quick-release adapter on the back.
• Suitable for cylindrical lenses and other rotation-sensitive optical lenses.
• 360° continuous rotation adjustment with 2° graduation.
• Features an M4 threaded hole at the bottom, compatible with rod mounting.

The SM-SR1 is designed for 1-inch cylindrical lenses (maximum thickness 12.7mm) and other rotation-sensitive optical components.

Model	SM-SR1
Dimensions	41.423.649.5mm
Adjustment Range	360° continuous rotation, 2° graduation
Compatible Components	1-inch (Ø1″) optical elements with thickness ≤12.7mm
Central Aperture	SM1 (1.035”-40) internal thread (non-through type)
Threaded Hole Type	1x M4*1
Weight	65.5g
Material	7075 Aluminum Alloy

Technical Description

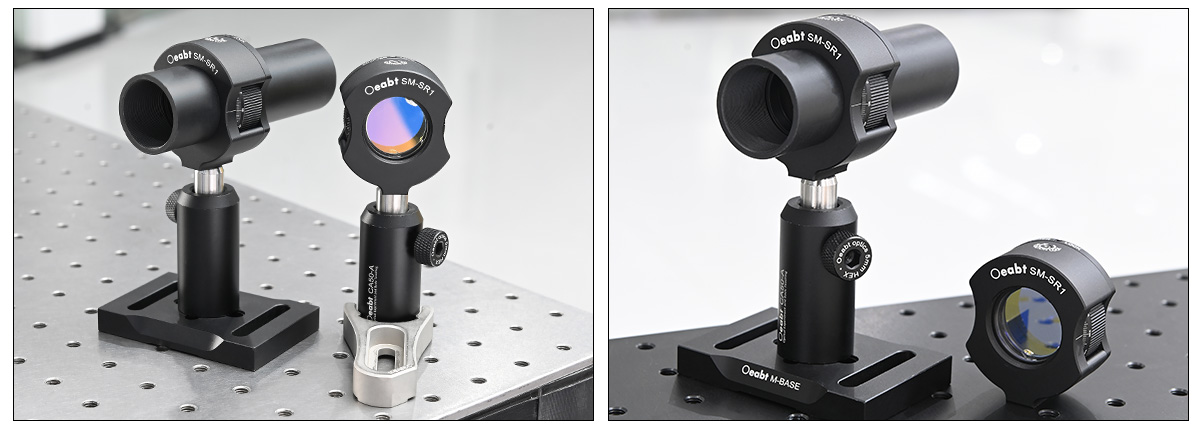

• The SM-SR1 is suitable for 1-inch (Ø1″) cylindrical lenses up to 12.7mm thick or other rotation-sensitive optical components. Cylindrical lenses can only focus or diverge light beams in one dimension, making alignment difficult in standard lens sleeves. The SM-SR1 can be clamped between two lens sleeves to rotate the installed component without disturbing the sleeves.

• The mount features a knurled edge for rotation adjustment and a 360° laser-engraved scale with 2° graduation. Continuous rotation enables precise repeat positioning and fine angle adjustment.

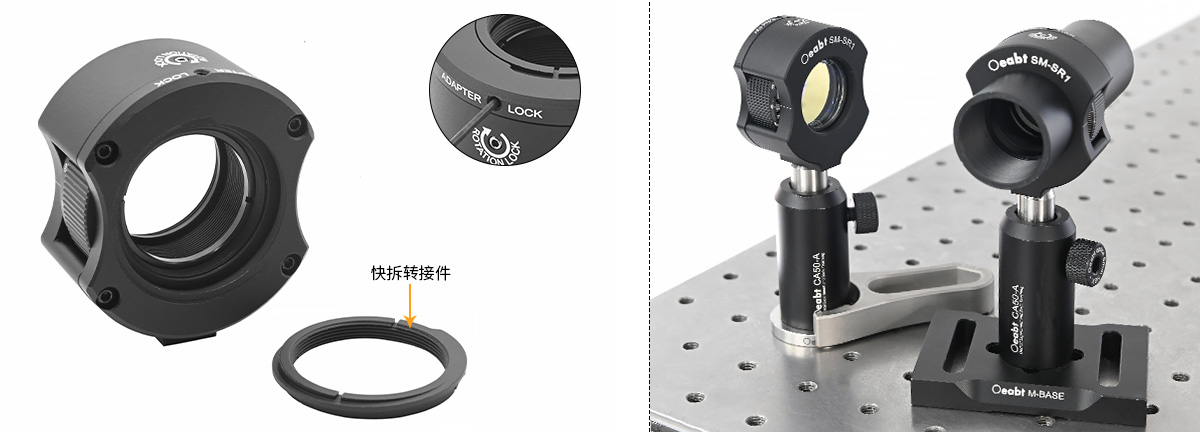

• The back of the mount is equipped with an SM1 (1.035”-40) quick-release adapter, allowing users to quickly disconnect and reconnect the mount from the lens sleeve assembly. Note: When installing optical components, the adapter must be removed first.

• The mount has an M4 threaded hole at the bottom, which can be directly mounted on a 12mm (Ø12mm) rod for free-space applications.

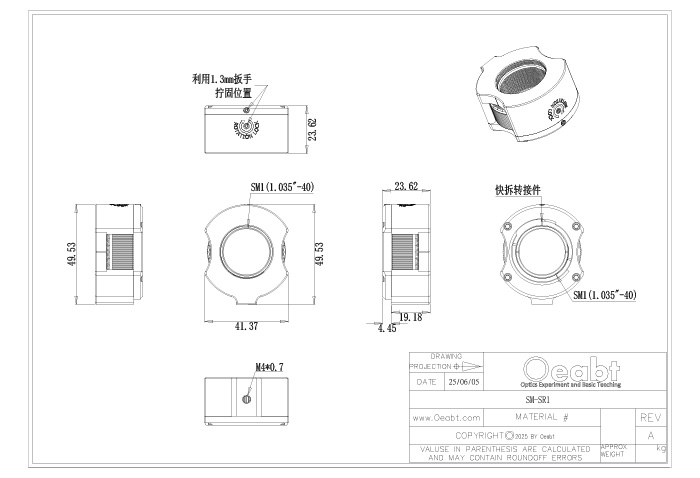

Engineering Drawing
