Product Description
- Provides clamping force for stage-equipped adjustment mounts.
- Flexible clamping mechanism.
- M4 thread at the bottom of the rod.

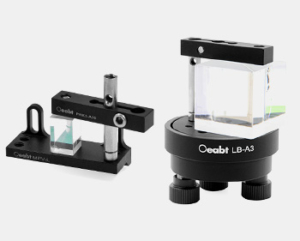

The pressure arm secures optical components to stage-equipped optical adjustment mounts or V-shaped fixtures via 2mm hex nylon set screws. It is fixed to the rod by locking the flexible mechanism with a 2.5mm ball-head screwdriver or hex wrench. The rod also features a through hole to apply additional torque when tightening the rod.
| Model | PRK1-A65 | PRK2-A65 | PRK3-A30 |
| Rod Specifications | Ø6*65mm | Ø8*70.6mm | Ø5*36.6mm |
| Clamping Height | 52.5mm | 56mm | 25.4mm |
| Thread Type | M4 | M4 | M4 |
| Weight | 22.8g | 36.3g | 8.5g |
| Material | Aluminum alloy + Stainless steel | Aluminum alloy + Stainless steel | Aluminum alloy + Stainless steel |
Technical Description
The pressure arm secures optical components to stage-equipped optical adjustment mounts or V-shaped fixtures via 2mm hex nylon set screws. It is fixed to the rod by locking the flexible mechanism with a 2.5mm ball-head screwdriver or hex wrench. The rod also features a through hole to apply additional torque when tightening the rod.
PRK3-A Ø5mm Pressure Arm
- Rod diameter: Ø5mm.
- Provides clamping force for stage-equipped adjustment mounts.
- M4 threads at both top and bottom of the rod.
- Can clamp optical components up to 25.4mm in height.
- Extended rods can increase the maximum height of clamped optical components.
The PRK3-A is compatible with clamping optical components up to 25.4mm in height. The rod is Ø5*31mm with M4 threads (5mm thread length) at both ends. The maximum clamping height can be increased with extended rods. The pressure arm is equipped with 2 Ø5mm through holes for switching clamping rods. The distances between the rod center and the nylon set screw center are 27.9mm and 17.5mm.

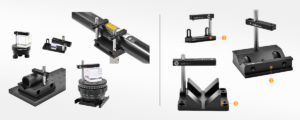

Assembly

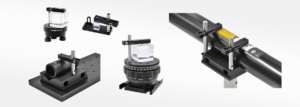

Application Example
Engineering Drawing Download
