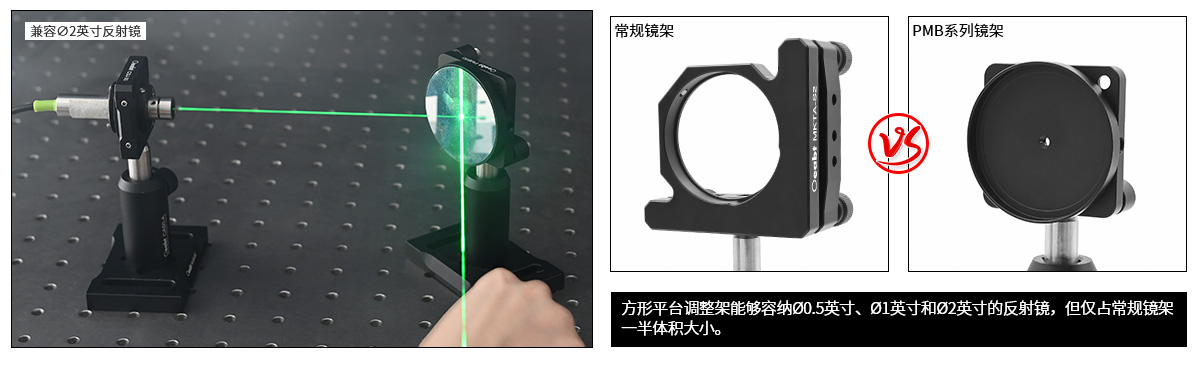

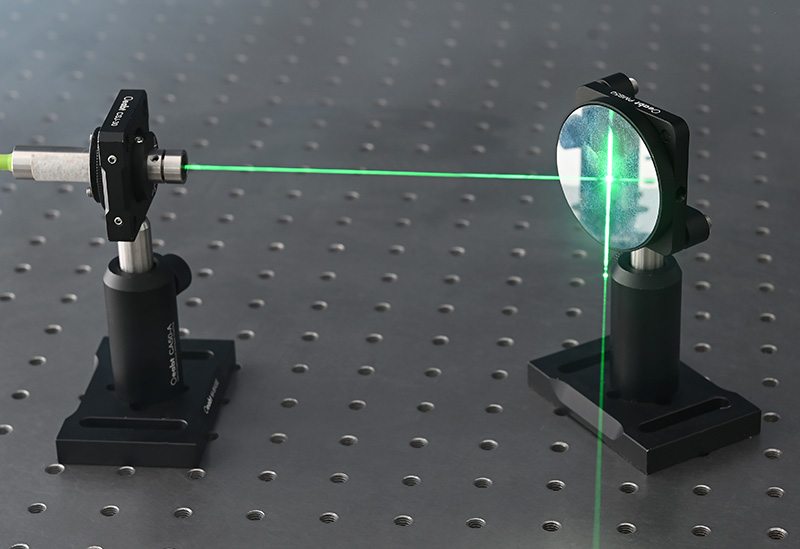

Compared with conventional adjustment frames, a major advantage of the platform adjustment base is its ability to fix optical components of the same size as or larger than the adjustment frame.
PMB Series Platform Mounting Adjustment Base
Price range: $8.00 through $59.00
Description
- Platform size options: 25mm and 50mm.

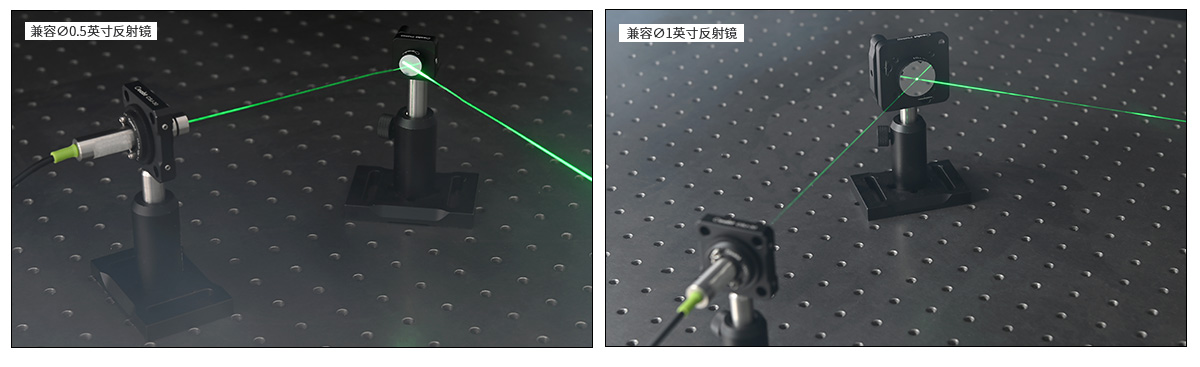

- Compatible with mirror accessories of Ø0.5-2 inches.
- Angle range: ±4°.
Compared with conventional adjustment frames, a major advantage of the platform adjustment base is its ability to fix optical components of the same size as or larger than the adjustment frame.
Platform Mounting Adjustment Base | ||
| Model | PMB25 | PMB50 |
Specification | 25.4*25.4*21.2mm | 50.8*50.8*22.9mm |
| Tabletop Size | 24.6*24.6mm | 49.3*49.3mm |
Central Mounting Hole | Ø6.5mm | Ø6.5mm |
Angle Range | ±4°, Resolution 9.5mrad/rev | ±4°, Resolution 9.5mrad/rev |
| Adjustment Screw | M4*0.25 | M6*0.35 |
Tabletop Thread | / | 4 places of M44, 1 place of M41 (countersunk hole) |
| Weight | 19.6g | 65.7g |
Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Mirror Fixing Disc | |||
Model | FD05 | FD1 | FD2 |
| Specification | Ø13.8*10.8mm | Ø26.5*10.9mm | Ø53.0*11mm |
Compatible Size | Ø0.5 inch | Ø1 inch | Ø2 inch |
| Screw Hole Type | 1 place of M4*1 | 1 place of M4*1 | 1 place of M4*1 |
Weight | 1.3g | 3.1g | 11.3g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
45° Mirror Fixing Base | |||
| Model | FM05 | FM1 | FM2 |
Specification | Ø16.0*17.3mm | Ø28.5*34.7mm | Ø55.0*53.4mm |
Compatible Size | Ø0.5 inch | Ø1 inch | Ø2 inch |
| Screw Hole Type | 1 place of M4*1 | 1 place of M4*1 | 1 place of M4*1 |
Weight | 5.0g | 30.0g | 144.9g |
Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Description
- Compared with conventional adjustment frames, a major advantage of the platform adjustment base is its ability to fix optical components of the same size as or larger than the adjustment frame. It provides ±4° angle adjustment driven by a 2mm hex key, with a resolution of 9.5mrad/rev.

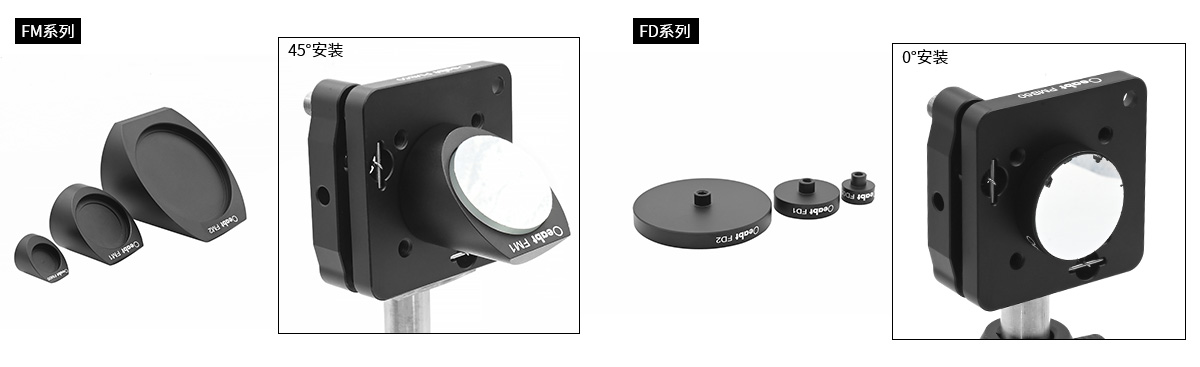

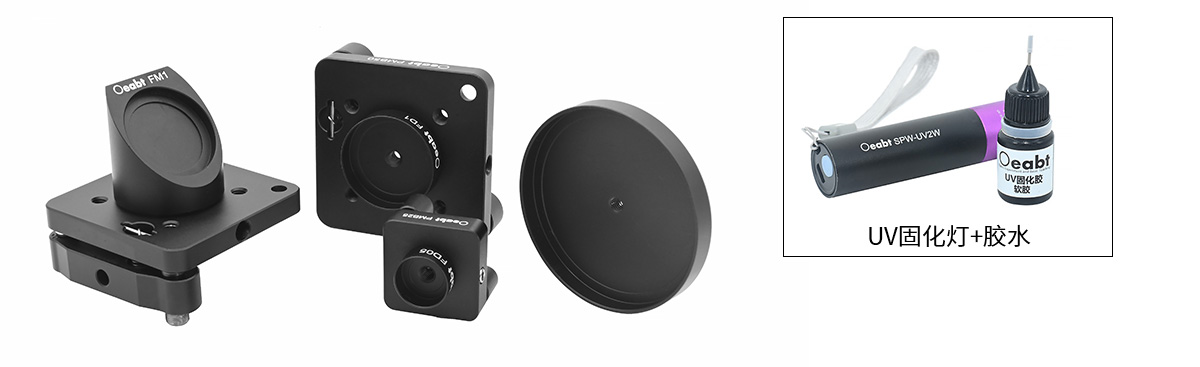

- The adjustment base is equipped with two types of mirror adapters: the FD series is suitable for 0° mirror installation, while the FM series is suitable for 45° mirror installation. The adapter is connected to the adjustment frame through the central hole of the platform and locked in place by the set screw on the side. (Note: These adapters adopt a bonding fixation method; it is recommended to use UV glue for bonding, which needs to be purchased separately.)

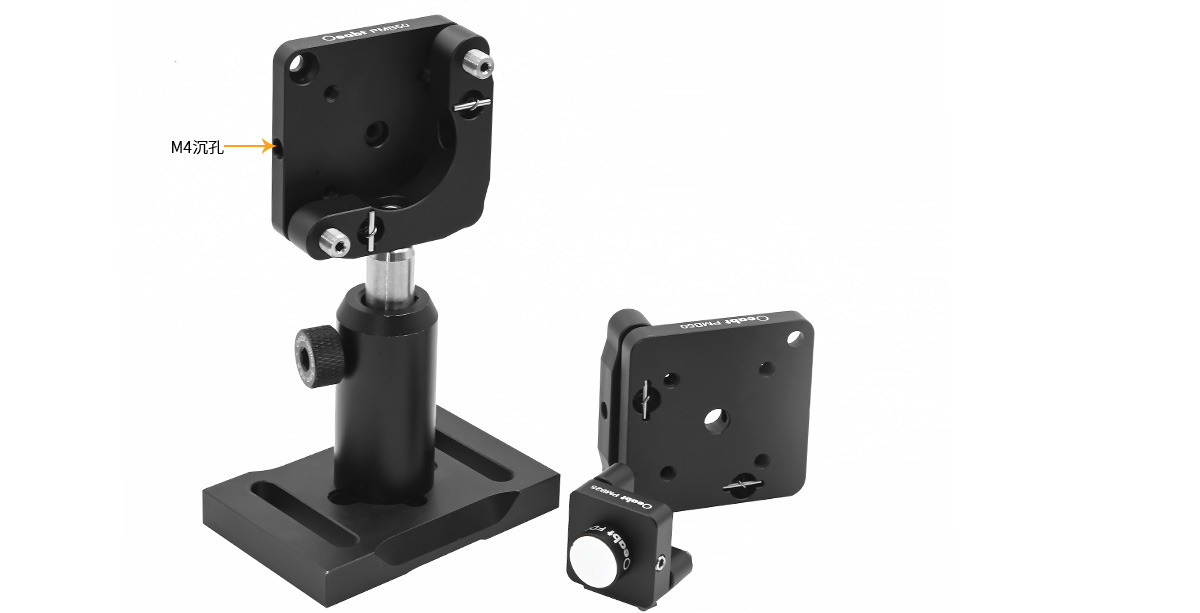

- The side of the PMB series platform is provided with M4 countersunk holes, supporting installation via connecting rods for easy system integration.

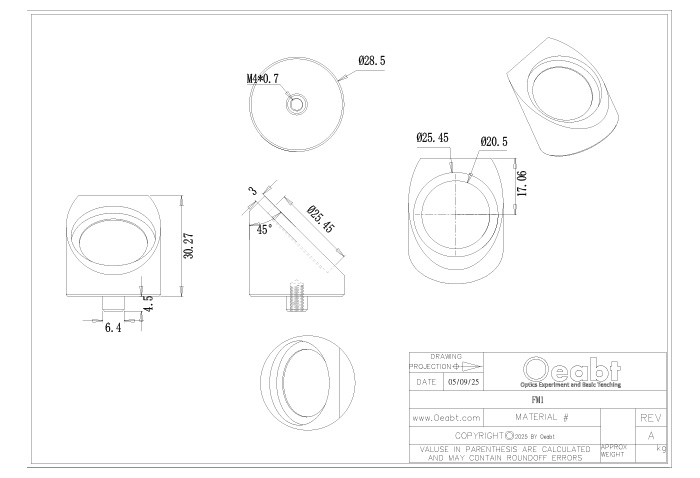

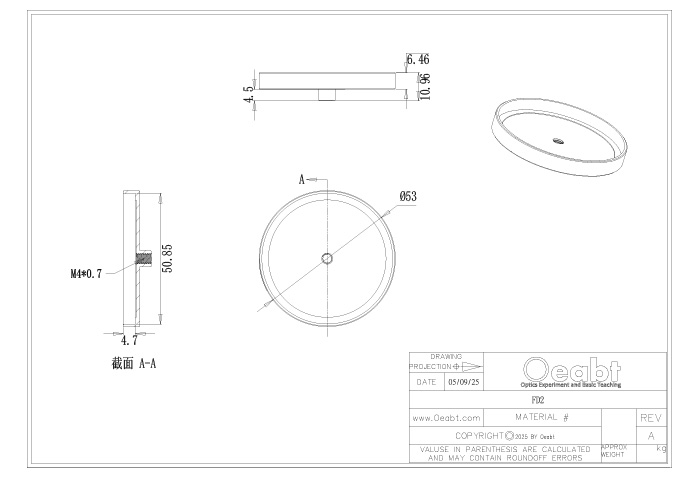

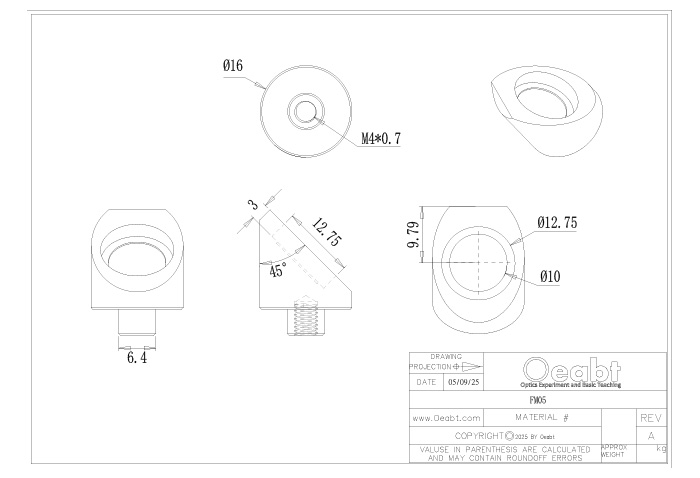

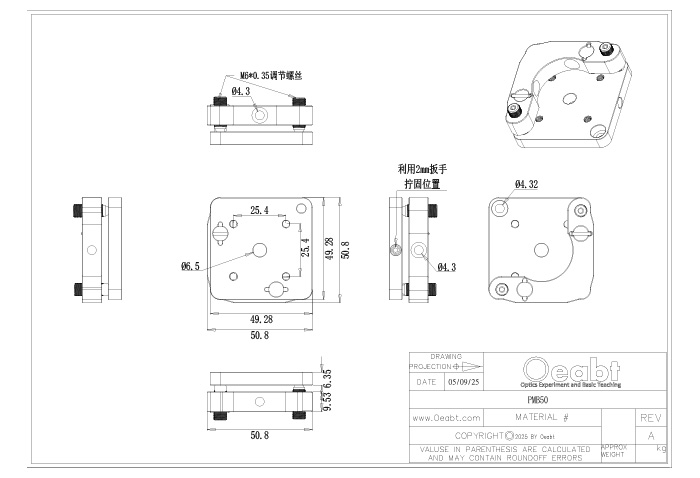

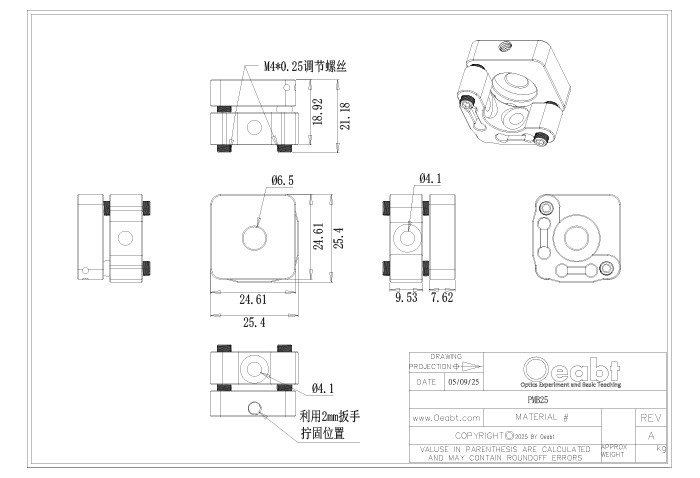

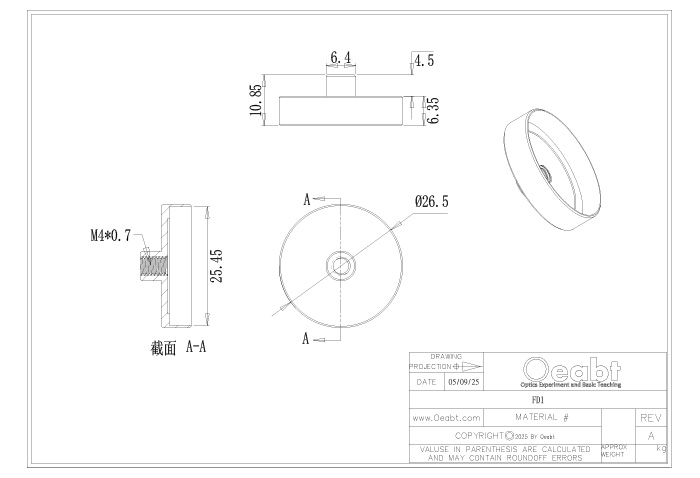

Engineering Drawing
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | PMB25 Platform Mounting Adjustment Base, PMB50 Platform Mounting Adjustment Base, FD05 Reflection Mirror Fixed Disk, FD1 Reflection Mirror Fixed Disk, FD2 Reflection Mirror Fixed Disk, FM05 Mirror Fixing Base, FM1 Mirror Fixing Base, FM2 Mirror Fixing Base |
