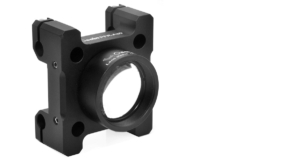

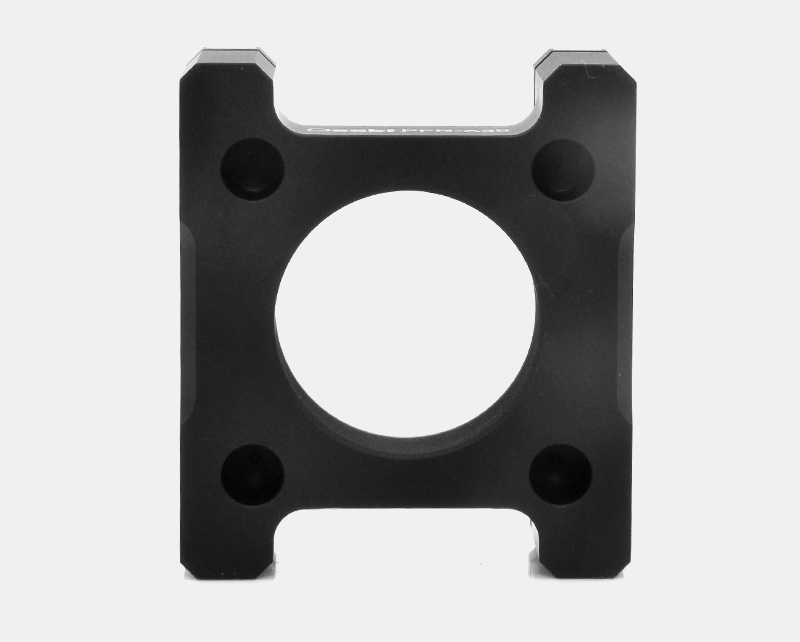

PFR-A30 30 mm Cage Turning Plate
PFR-A30 30 mm Cage Turning Plate
$45.80
Description
Product Description
- Mounts two 30 mm cage system assemblies at 90°
- SM1 (1.035″-40) internal thread for mounting optical components or lens tubes
- Compatible with 30 mm cage systems
- Flexible clamping design for strong stability and easy repositioning
- Ø6 mm through holes, compatible with PCMS series rods
The cage turning plate allows one cage system to be mounted vertically at 90° to another. Each rightangle turning plate has mounting holes for cage rod installation.
| Model | PFRA30 |
| Description | Cage Turning Plate |
| Dimensions | 50.8×44.2×20.6 mm |
| Center Bore | SM1 (1.035″-40) internal thread |
| Blind Hole | Ø6 mm, spacing: 30×30 mm |
| Weight | 44.7 g |
| Material | 7075 Aluminum Alloy |
Technical Description
(1) The cage turning plate allows one cage system to be mounted vertically at 90° to another. Each rightangle turning plate includes mounting holes for cage rod installation.
(2) The front of the turning plate has four Ø6 mm blind holes (depth 9 mm) for PCMS series cage rods. Each rod is secured in the plate with a side hex set screw. Orthogonal PCMS series cage rods are held in flexible clamps on the side of the turning plate and tightened with cap screws. All cage rods can be secured with a hex wrench or ballhead screwdriver.
(3) The center bore of the turning plate is an SM1 (1.035″-40) threaded hole, for mounting an SM1 lens tube or a Ø1 inch optical component up to 6.1 mm thick (retaining ring sold separately).

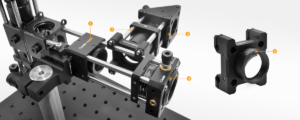

Assembly

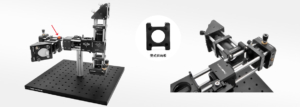

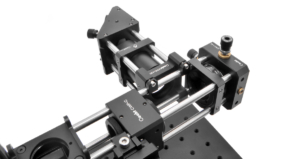

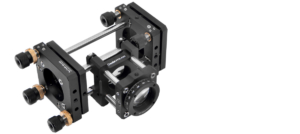

Application Examples
Engineering Drawings
Additional information
| Weight | 0.0447 kg |
|---|---|
| Dimensions | 5.08 × 4.42 × 2.06 cm |
